The TR3036 is a general purpose oscilloscope current probe that is compatible with more than 95% of oscilloscopes on the market, with a frequency response measurement range of up to 10KHz from 0.5A to 1400A (peak) and a BNC output terminal. Connect to an oscilloscope for accurate measurement of AC or DC current waveforms, and a three-position slide switch on the handle panel selects range and ON/OFF.
Features:
• AC and DC dual-use
• Current measurement range: 0.5A to 1400A
• Measurable cable (Ø39mm or Ø25.4mmx2)

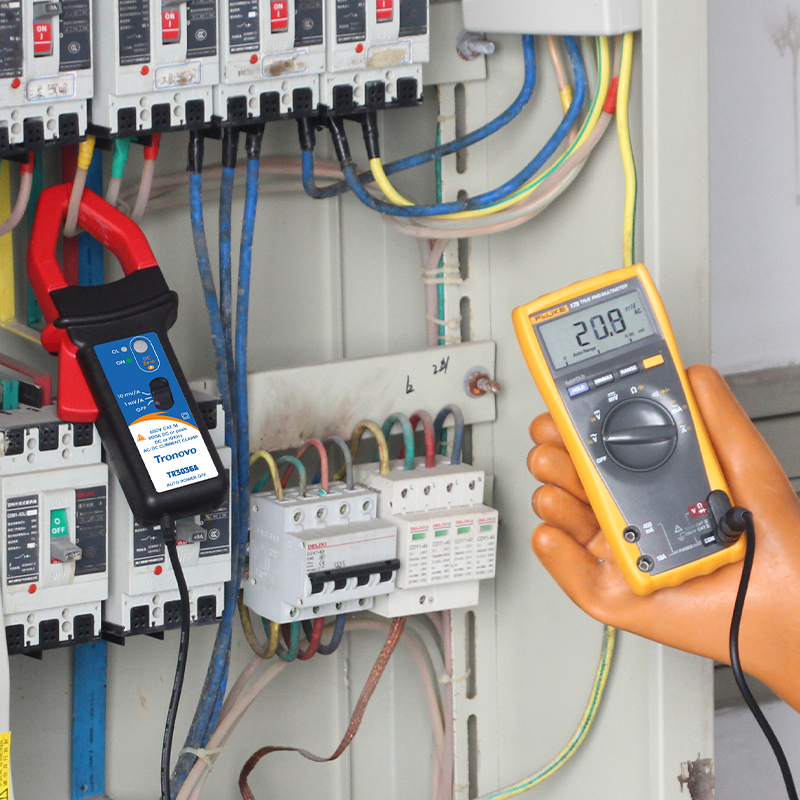

• Narrow jaw design, easy to use in tight spaces with dense wiring

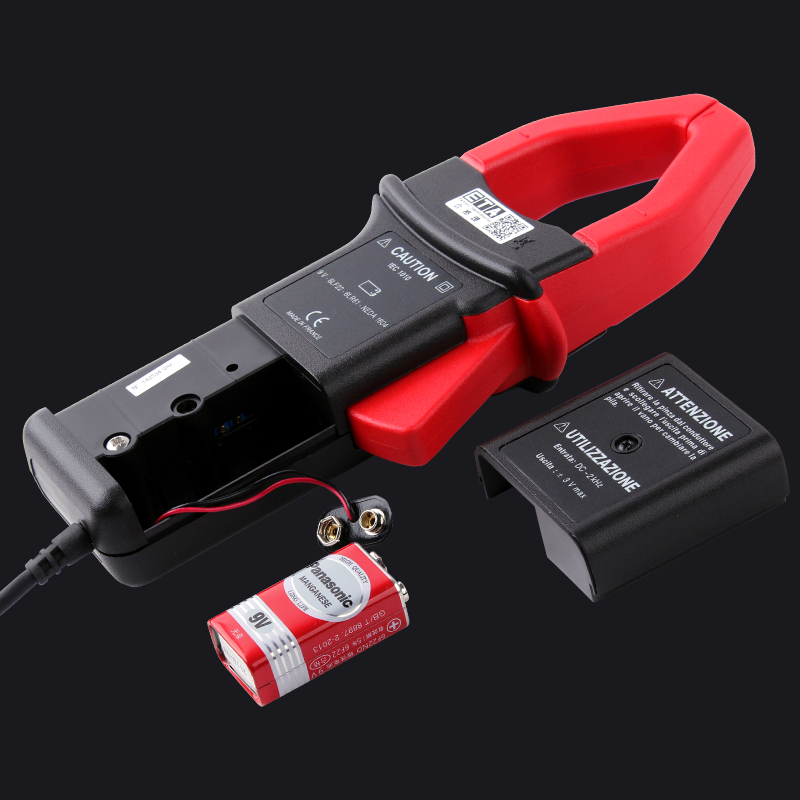

• 9V alkaline battery, 55 hours of continuous operation
• Accurately measure, analyze, and display distorted current waveforms and harmonics
 |

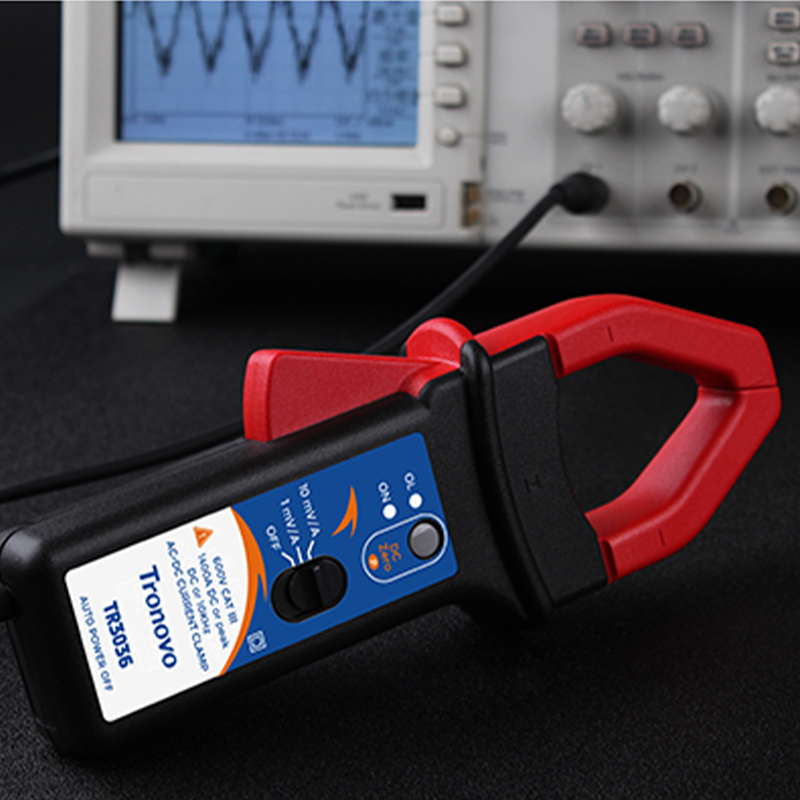

Oscilloscope interface compatibility and useThe oscilloscope cannot automatically identify the attenuation ratio of other brands of probes. You need to manually set the probe attenuation ratio on the oscilloscope to prevent measurement deviation. |
Pincer opening designPress the handle to open the jaws, put the wire of the measured current into the jaws and release the handle to close the jaws. |
 |
 |
Zero adjustment and degaussingAfter connecting the power supply, fix the position of the current probe, and press and hold the zero knob to adjust the DC offset of the current probe output until the waveform trace coincides with the zero point to offset the influence of residual charge. |
High and low range, adjustable gearWe need to select the appropriate measuring gear according to the measured current, and the range can be selected by pulling the gear switch at the 3 position on the panel. |
 |
 |
Noise testMeasured 10mV/A gear, TR3036 probe bottom noise is about 1A |
| Model | TR3036 |
| Bandwidth (-3dB) | 10kHz |
| Rise time | 35uS |
| Enter the type | AC/DC |
| Precision | 士1.5% 土2.5% 土4% |
Current conversion ratio | 1mV/A 10mV/A |
DC maximum | 1400A |
AC peak-to-peak | 2800A |
Communicate valid values | 1000A |
Maximum operating voltage | 600V CATIII |
Jaw diameter | ∅39mm |
Cable length | 200cm |
Interface type | BNC |
power supply | DC9V battery |
Working environment | -10°C~+50°C |
Storage requirements | 0°C to +40°C |
| Weight | 520g |
| Dimensions | 236X97X44mm |
