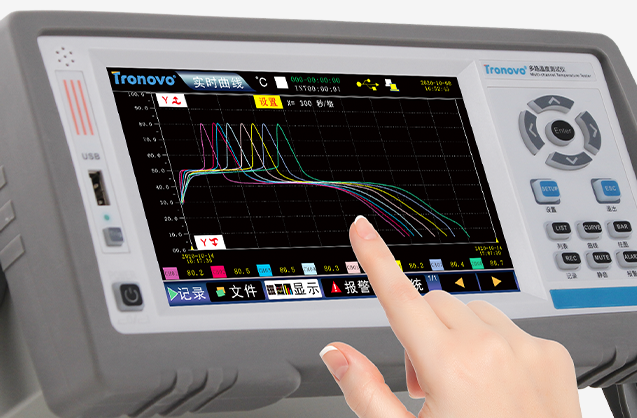

7-inch true-color industrial touch screen

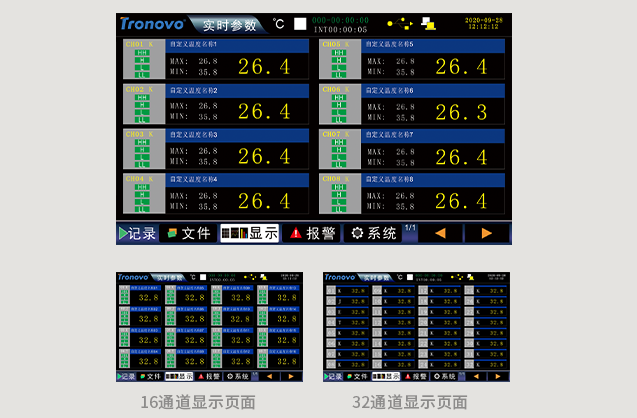

Real-time list values, real-time graphs, real-time column charts

Historical curves and historical alarm records can be queried on the machine

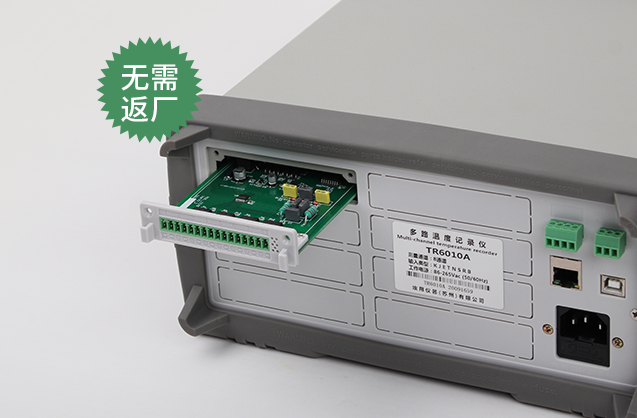

Each module has 8 channels and supports up to 64 channels

K、T、J、E、N、S、R、B

0.2°C+2 characters (without thermocouple error)

Accuracy: 0.5°C

0.1°C

Independent error correction for each channel

 64 cycle records

One file can record 130,000 groups (regardless of channel)

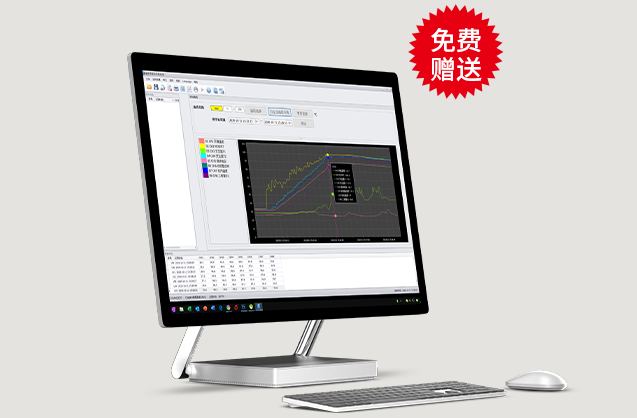

You can export a log file or read a file with built-in memory

The 1-second recording interval allows for continuous recording for 94 days

EACH CHANNEL IS FAST 0.1S, MEDIUM SPEED 0.5S, SLOW 1S

AC/DC up to 350V, high voltage live measurement

Two relay outputs as standard (settable back-difference and delay)

All the way to the beep sound (any alarm sounds, can be set to mute)

HH:MM:SS hour, minute, and second can be adjusted arbitrarily (1S~24H:60M:60S)

USB, RS485, RS232, and LAN are equipped with four interfaces as standard

AC85~265 ± 10% frequency 50/60Hz, < 10W

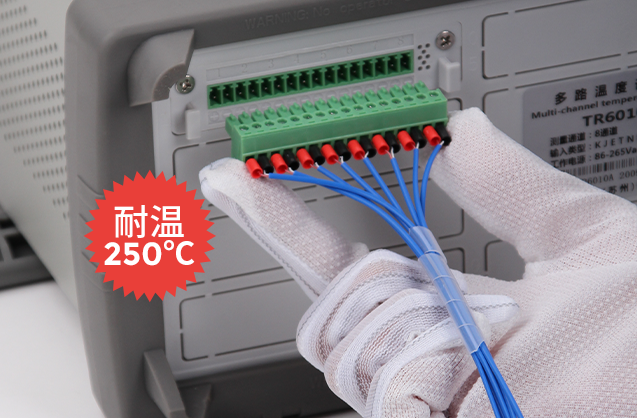

Each channel is supplied with a 2 m type K thermocouple as standard

°CCelsius, F, Kelvin

5°C~40°C20%~80%RH

Approx. 5 kg (weight varies depending on configuration)

310X135X330mm
