TR9318A oscilloscope high voltage test sticks

TR9318A can measure up to 18KV DC and 12KV AC voltage, and the 200MΩ input impedance high-voltage probe can be connected to the oscilloscope for direct measurement, which is suitable for high-voltage grounding reference voltage measurement. TR9318A The use of environmentally friendly silicone insulating media can increase the insulation performance, ensure that the internal components will not oxidize when measuring high voltages, and prolong the service life.

Features:
• Maximum voltage measurement: 18KV DC+ACpeak
• Bandwidth up to 100MHz
• Input impedance: 200MΩ
• Fixed attenuation ratio 1000:1, Read Out
• Can be connected to a multimeter with an impedance matcher

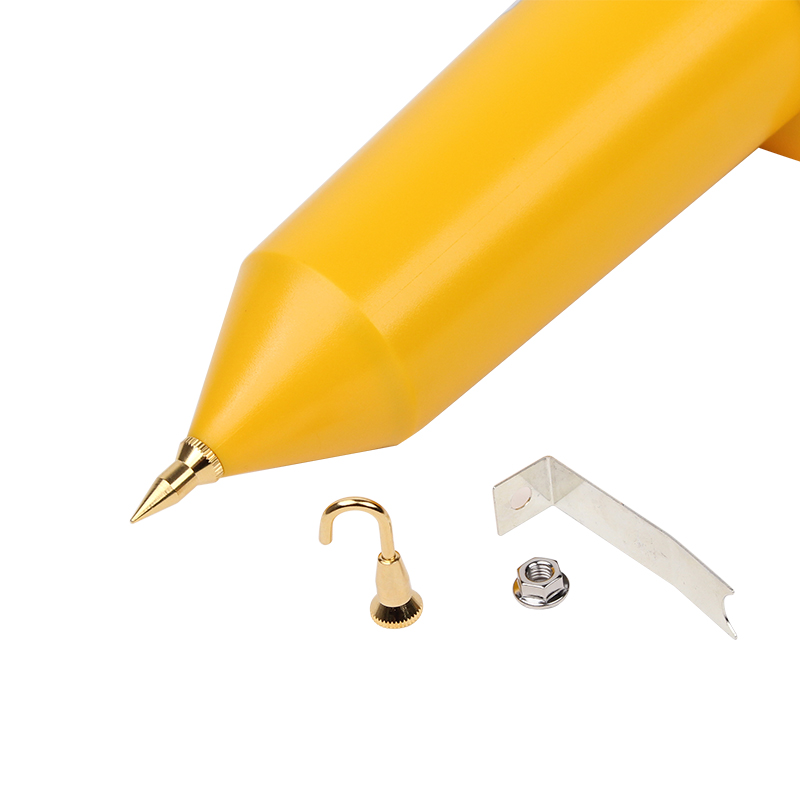

Three types of measuring heads

There are 3 types of measuring connectors from the factory, namely:
Pin probes
Hook probe
Chip probes

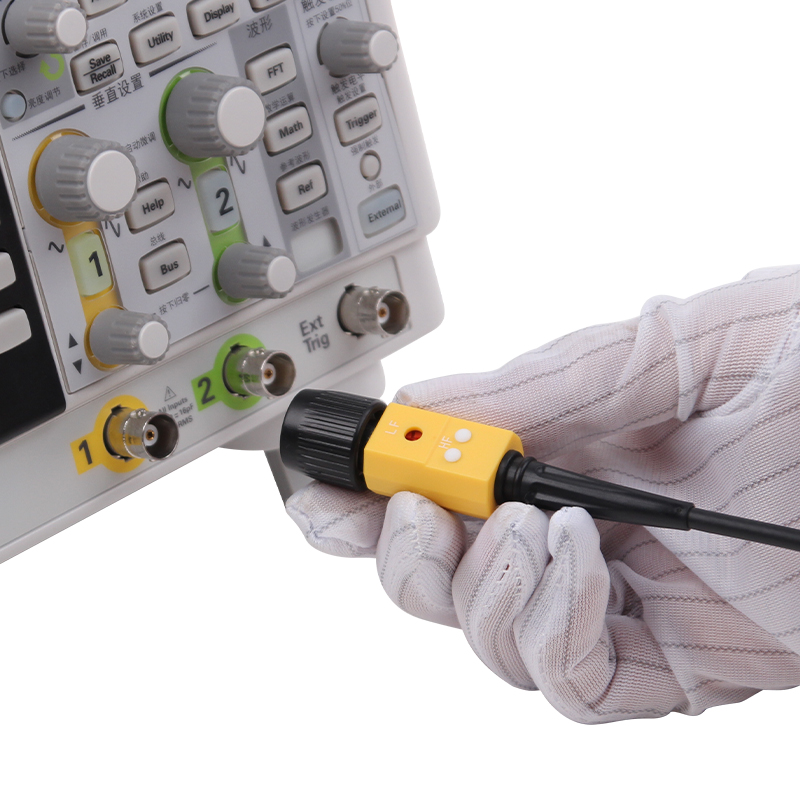

Compatible with any oscilloscope

The probe adopts a standard BNC plug, which can be used with domestic and imported oscilloscopes.
*The interface includes capacitance matching adjustment function, whenever the test rod is replaced with the oscilloscope, please correct it according to the manual, the closed adjustment point has been adjusted well at the factory, please do not adjust it again for non-professionals.

Longer ground wire

Supplied with a grounding extension cord from the factory
*When the measurement frequency is greater than 40MHz, the long ground wire must be replaced with an alligator clip in order to achieve a minimum ground resistance value and a higher frequency response.

Packed in a storage box

Safe transportation, convenient and neat storage.

Model	TR9318A
Attenuation scale	1000:1
Readout function	-
Input impedance	200MΩ
Input capacitance	1.5PF
Maximum Input:DC+AC peak	18KV CAT II
Maximum Input:AC RMS	12KV CAT II
Pulse voltage	＜12KVp-p
Maximum load current	90uA
Bandwidth	DC~100MHz
上升时间	3.5nS
Noise ratio	>60dB at 1KHz ; >50dB at 1MHz
DC signal error value	≤3% All range files,≤3%(0-35KV)
AC signal error value	≤3% at 1KHz
Temperature coefficient	≤200 PPM/℃
Match capacitance adjustment range	10PF~35PF
Safety inspection	EN61010-031 CAT II specification
Test line length	2M±0.2M
工作温湿度	0~40℃,80% or less
Store temperature and humidity	-10~45℃,80% or less
Color: Grip / Body	Black/Yellow
Size	80mmx80mmX320mm
Weight	460g
