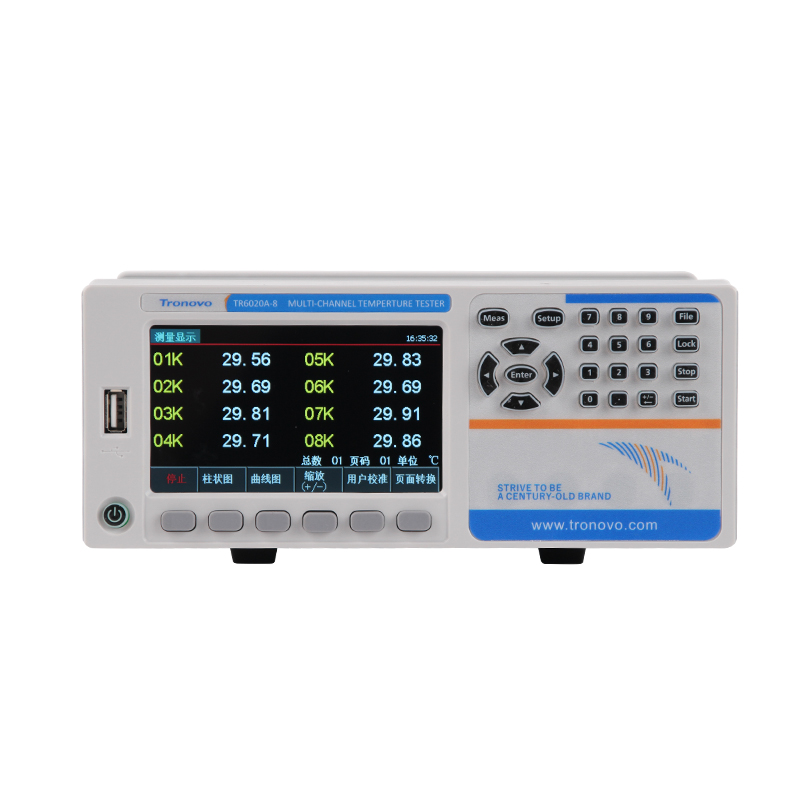

The TR6020A series multi-channel temperature recorder adopts a 4.3-inch 24-bit true color LCD screen, which simultaneously collects, alarms, and communicates the temperature of multiple channels. Advanced test principle, so that the temperature test resolution to 0.01, standard RS232 interface can directly upload data to the PC, standard U disk interface, support real-time data storage. At the same time, the test is displayed at the same time, the instrument curve can be depicted, the number of channels can be expanded arbitrarily, and free communication is provided, and the data acquisition, analysis and printing can be easily realized through PC software.
Features:
• 4.3-inch 24-bit true color LCD screen, 480X272 resolution
• Intuitive numerical readings, graph display, column chart display
• Supports up to 64 channels of scan testing
• Equipped with host computer software as standard
• Supports J, K, T, E, S, N, B, R thermocouple types
• Lock keypad lock function
• Upper and lower limit signal function
• Support 300V high voltage live measurement

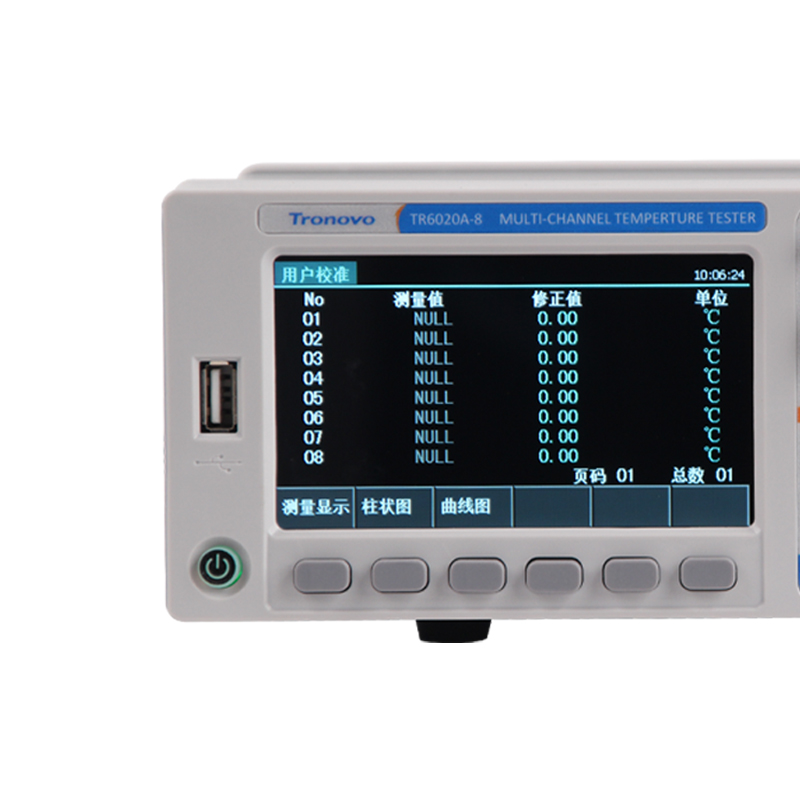

• Allows the user to make error corrections for each channel of data
 |
Multiple thermocouple model compatibilityThe multi-channel temperature tester is compatible with thermocouple J, K, T, E, S, N, B, R and other indexing numbers. The test range covers -200.0 ℃ ~ 1800.0 ℃ (adjusted with thermocouple type), and the resolution reaches 0.1 ℃, ensuring accurate temperature measurement. The number of channels is configured from 8 to 16 channels according to the model, which meets the requirements of different test scales, and supports the selection of slow and fast test speeds, adapts to various temperature measurement scenarios, and efficiently completes temperature data collection and analysis. |

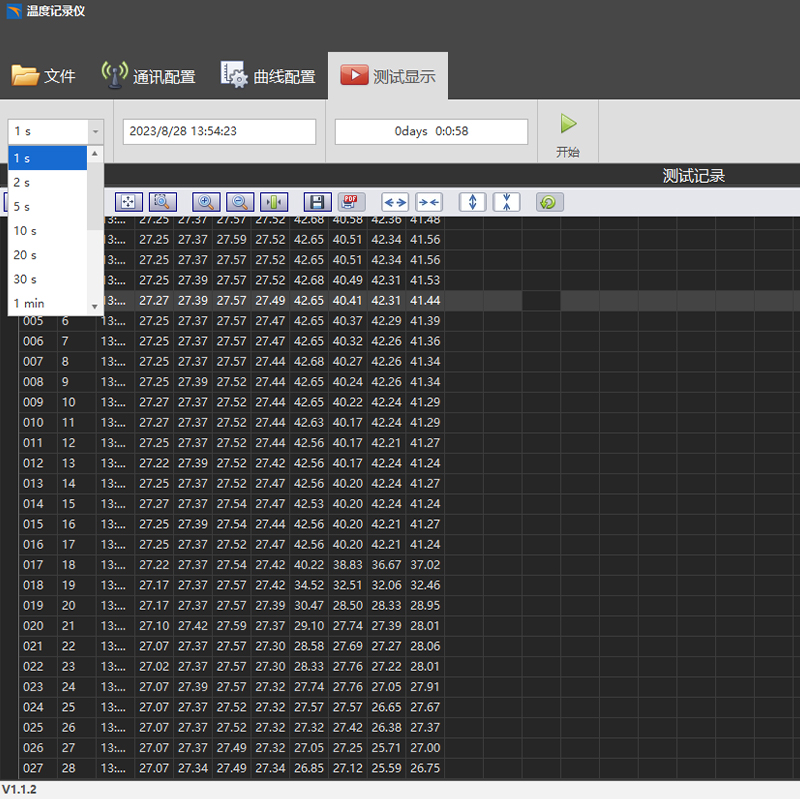

Remote Computer SoftwareThe multi-channel temperature tester is provided with remote computer software, which supports viewing the time chart and displays it accurately to the second level, and can track the dynamic temperature changes of each channel in real time. The software can visually present the temperature fluctuation curve over time, accurately capture the second-level temperature difference, facilitate rapid analysis of temperature change trends, check anomalies, greatly improve data recording and analysis efficiency, and provide convenient remote data management support for experimental research, production monitoring and other scenarios. |
 |
 |
U disk storage functionThe storage function of U disk supports multi-channel data acquisition, and can directly record real-time data to USB storage disk, which can realize data retention without complicated operation. This function is suitable for large-capacity U disk, the data is stable and not easy to be lost, the recorded content completely covers the collected information of each channel, and is convenient to export to the computer for analysis and archiving at any time. |
Sorting alarm functionThe multi-channel temperature tester has a sorting function, which can flexibly set the upper and lower limits of the temperature. When the monitoring temperature exceeds the set range, it can trigger an alarm and remind it in time. |
 |
 |

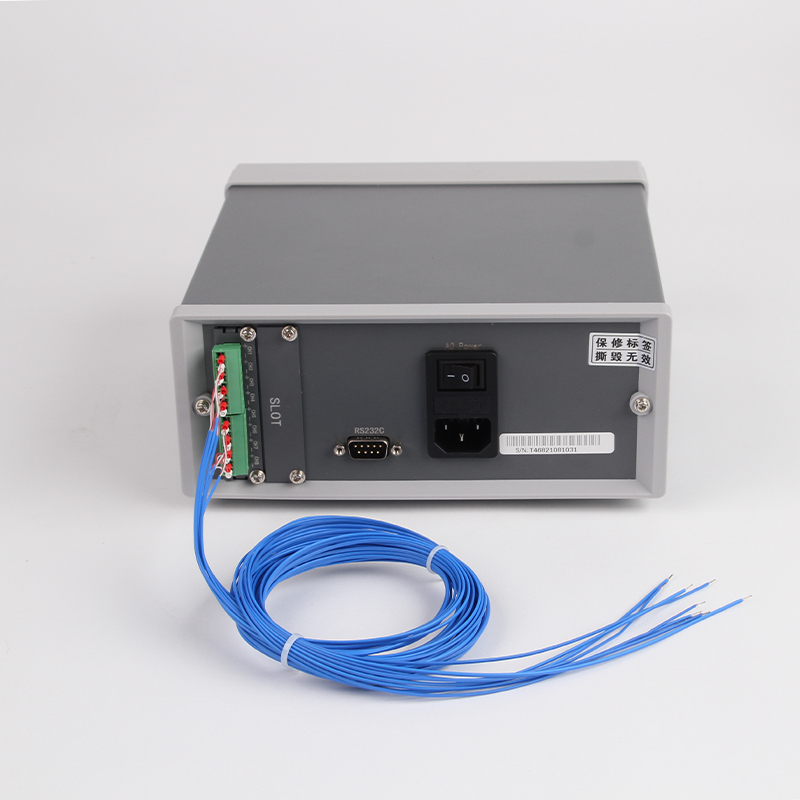

Complimentary temperature measuring lineWhen purchasing the multi-channel temperature tester, the same number of temperature measuring lines will be given according to the actual number of channels of the instrument, which can be matched and used without additional purchase. The temperature measuring line is adapted to each channel of the instrument to ensure stable signal transmission and ensure temperature measurement accuracy. |
| Model | TR6020A-8 | TR6020A-16 | TR6020A-24 | TR6020A-32 | TR6020A-40 | TR6020A-48 | TR6020A-56 | TR6020-64 |
| Test the channel | 8 Passage | 16Passage | 24Passage | 32Passage | 40Passage | 48Passage | 56Passage | 64Passage |
| How it is displayed | Intuitive numerical readings, graph display, column chart display | |||||||
| Graduation number | thermocouple J、K、T、E、S、N、B、R | |||||||
| Measuring range | -200.0°C~1800.0°C (varies according to different thermocouple models) | |||||||
| Resolution | 0.1°C | |||||||
| Number of channels | Each module has 8 channels and supports up to 64 channels | |||||||
| Test speed | Slow, fast | |||||||
| Sorting | Built-in sorting data, the upper and lower limits of each channel of temperature data can be set | |||||||
| Alarm | Signal function of exceeding upper and lower limits | |||||||
| User correction function | Allows the user to make corrections to the data for each channel | |||||||
| Lock function | Lock keyboard | |||||||
| Screenshot feature | Data logging and parameter saving functions | |||||||
| FAT storage function | Allows users to create (.csv) files with suffixes and save each channel of data in USB memory | |||||||
| Interface protocols | RS232 communication interface, Handler sorting interface (optional), compatible with SCPI instruction set | |||||||
| Remote control | It supports a maximum baud rate of 115200bps, compatible with SCPI protocol, and ASCI transmission | |||||||
| Ambient temperature | Index: temperature 15°C~35°C, humidity 80%RH Operation: temperature 10°C~40°C, humidity 10~90%RH Storage: Temperature 0°C~50°C, humidity 10~90%RH | |||||||

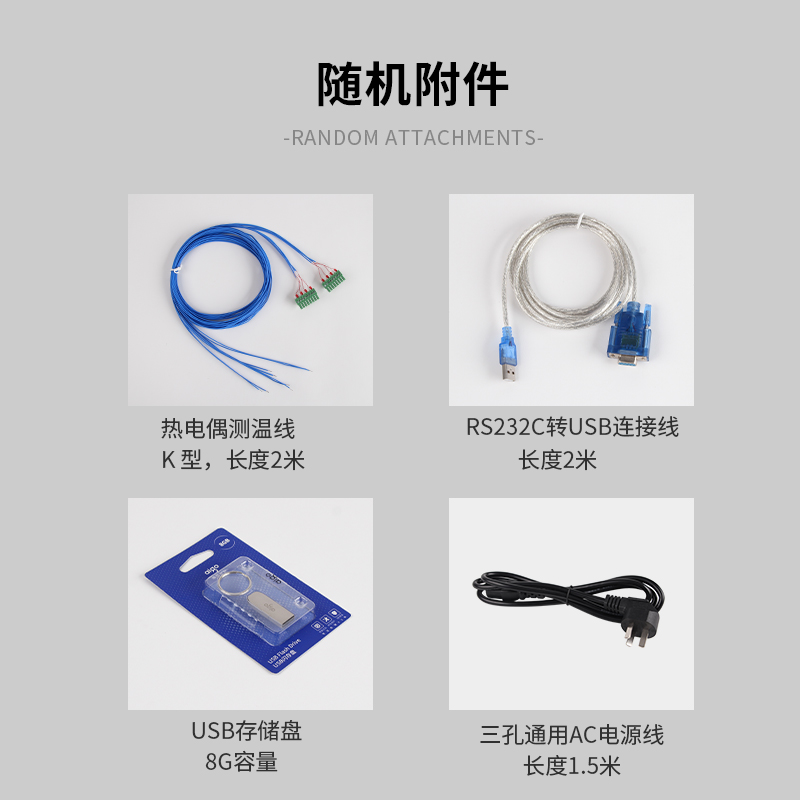

| Annex | K-type thermocouple temperature measurement cable, RS232C to USB cable, USB storage disk three-hole universal AC power cable | |||||||
| Weight | 2.0Kg | |||||||
| Dimensions | 214X89X210mm | |||||||
