100MHz/200MHz Oscilloscope Probes - Featuring a low resistance gold-plated stylus, snap-on rotary ground wire, allowing the user to quickly and manually switch between 1X and 10X. The probe body is made of high-strength plastic, and the snap-on rotary grounding wire is used to ensure the service life of the cable at all bending and stressing points.
Features:
• Secure BNC interface
• 200MHz operating frequency
• X1, X10 attenuation switches
• Includes an "accessory pack" that is perfect for engineers
• Suitable for analog or digital oscilloscopes from 100M to 200MHz
 |
Gold-plated probe contactsIt has lower contact resistance, enhanced electrical conductivity, improved corrosion resistance, and longer service life. |
Telescopic probe hook is standardWhen testing, it is convenient to hook a certain point on the circuit board, such as the original pins and pin headers on some PCBs, or directly hook the wire, which can measure high safety and free one hand. |
 |
 |
Gold-plated grounding springsBecause the oscilloscope's ground clamp and probe loop lead are relatively long and easy to be interfered with, the measured waveform will be distorted, sometimes we want to get a more realistic waveform when it comes in handy, for example, the probe measures the MOS tube drive waveform ringing is relatively large, we can use the ground spring to test in order to rule out and verify whether the ringing here is really so large. |

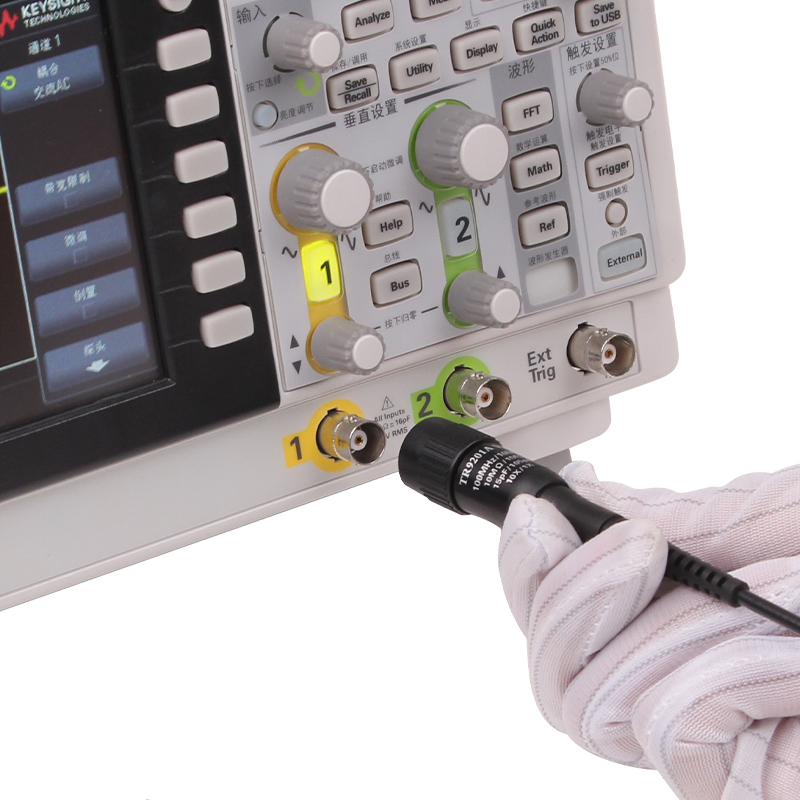

Compatible with any oscilloscopeThe probe adopts a standard BNC plug, which can be used with domestic and imported oscilloscopes. |
 |
 |

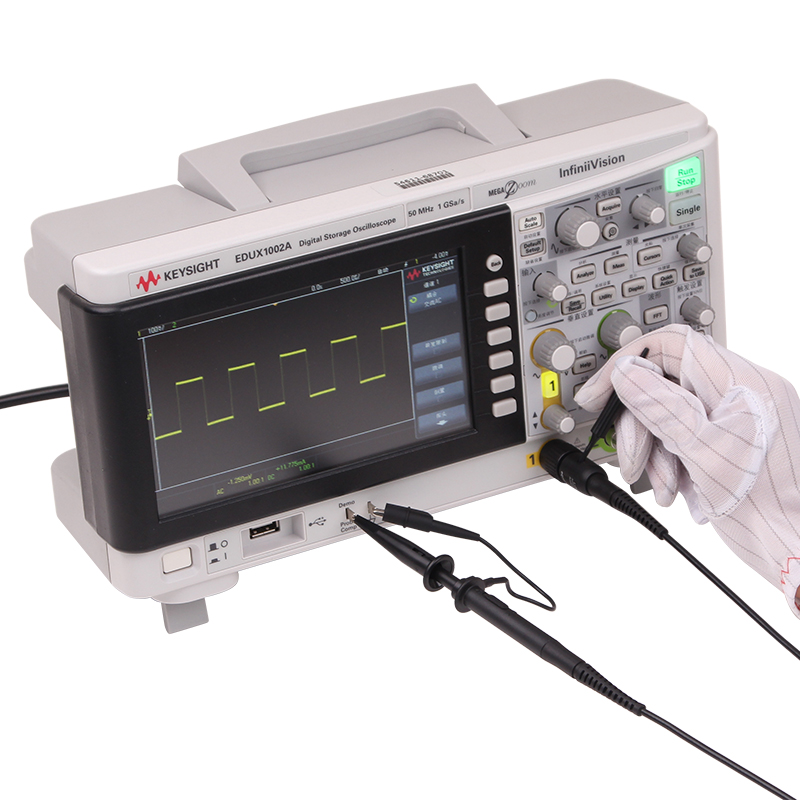

The probe is correctedConnect the probe to the oscilloscope positive signal output port, and the oscilloscope will produce a square wave signal of 1KHz. |
| Model | TR9201A TR9202A TR9203A |
| X10 position | |
| Attenuation ratio | 10:1 |
| Bandwidth | DC~100M DC~200M DC~300M |
| Rise time | 3.5nS 1.75nS 1.17nS |
| Input impedance | 10MΩ (oscilloscope input impedance 1MΩ) |
| Input capacitance | Approximately 15pF |
| Scope of Compensation | 10 to 20pF |
| Input voltage | 300 Vrms CAT II |
| X1 Position | |
| Attenuation ratio | 1:1 |
| Bandwidth | DC to 6MHz |
| Rise time | 58nS |
| Input impedance | 1MΩ (oscilloscope input impedance) |
| Input capacitance | Approximately 105 pF Approximately 95 pF |
| Input voltage | 150 Vrms CAT II |
| Operating temperature | 0℃to + 50℃ |
| Humidity | 85% RH or less |
| Overall length | 1.2米 |
| Safety regulations | Meets EN61010-031 CAT II |

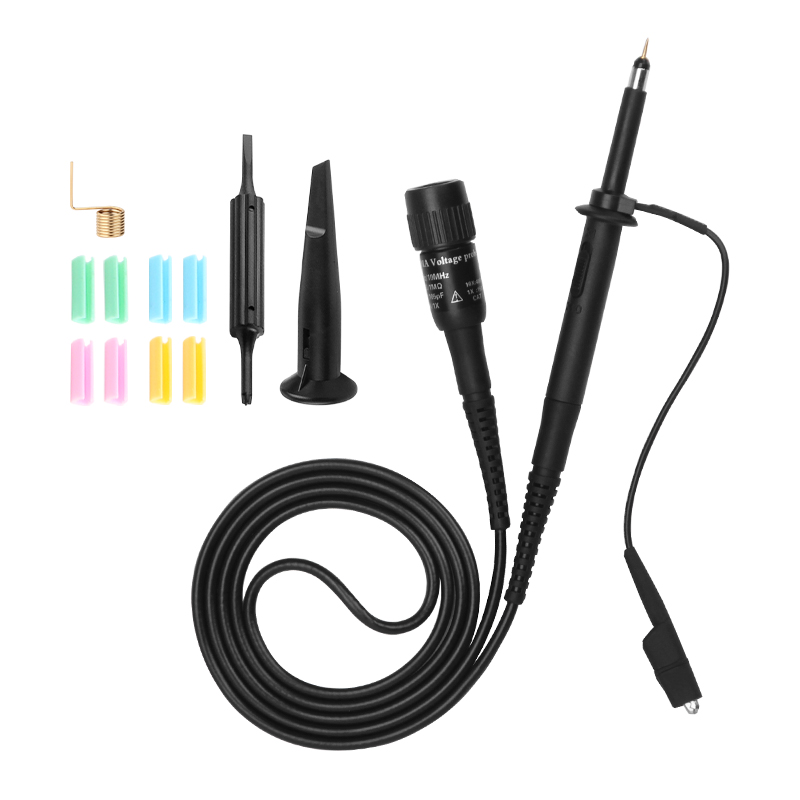

| Fittings | Oscilloscope probes x1 Probe hook hat x1 Grounding wire x1 Color Wheel x4 Grounding springs x1 Non-inductive batching x1 |
