TR9310A oscilloscope high voltage test sticks_High-voltage probes_Product

TR9310A oscilloscope high voltage test sticks

TTR9310A can measure voltages up to 10KV DC, 7KV AC, 100MΩ input impedance, low load effect, and 120MHz high frequency bandwidth enables you to capture fast, high voltage signals. The high-voltage probe can be connected to an oscilloscope for direct measurement, which is suitable for high-voltage grounding reference voltage measurement. In addition, an optional adapter can measure the voltage value on the digital meter. TR9310A The use of environmentally friendly silicone insulating media can increase the insulation performance, measure high voltages while ensuring that the internal components do not oxidize, and extend the service life.

Features:
• Maximum voltage measurement: 10KV DC+ACpeak
• Bandwidth up to 120MHz
• Input impedance: 100MΩ
• Fixed attenuation ratio of 100:1, Read Out
• Can be connected to a multimeter with an impedance matcher

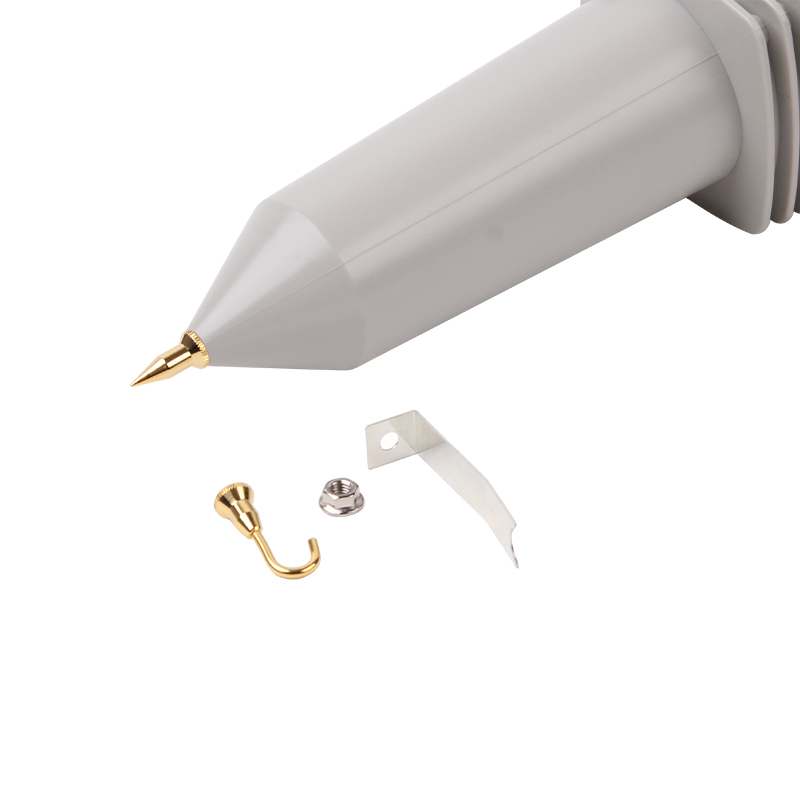

Three types of measuring heads

There are 3 types of measuring connectors from the factory, namely:
Pin probes
Hook probe
Chip probes

Compatible with any oscilloscope

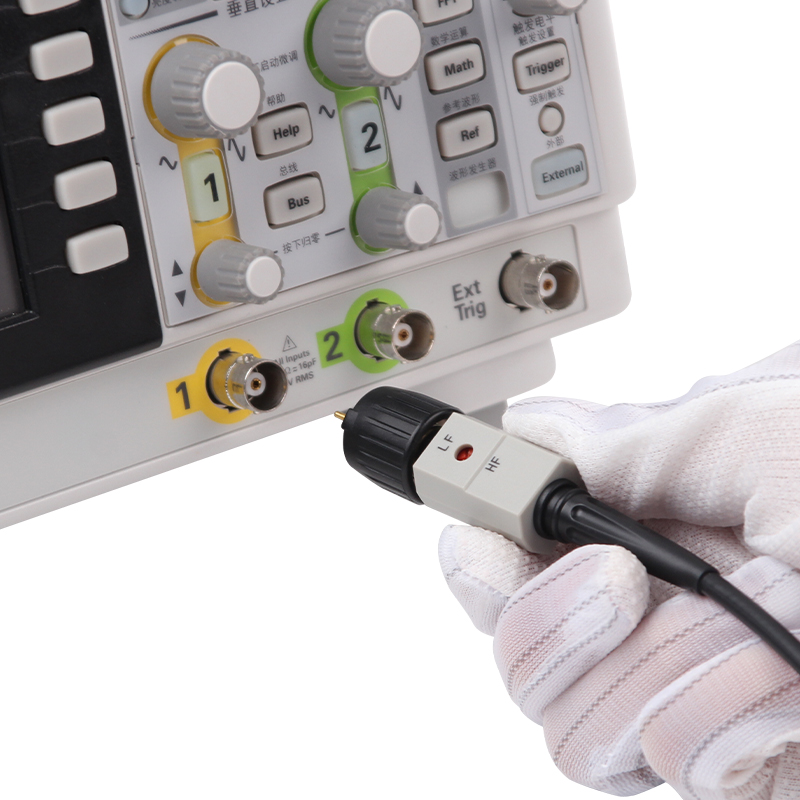

The probe adopts a standard BNC plug, which can be used with domestic and imported oscilloscopes.
*The interface includes capacitance matching adjustment function, whenever the test rod is replaced with the oscilloscope, please correct it according to the manual, the closed adjustment point has been adjusted well at the factory, please do not adjust it again for non-professionals.

Longer ground wire

Supplied with a grounding extension cord from the factory
*When the measurement frequency is greater than 40MHz, the long ground wire must be replaced with an alligator clip in order to achieve a minimum ground resistance value and a higher frequency response.

Packed in a storage box

Safe transportation, convenient and neat storage.

Model	TR9310A
Attenuation scale	100:1
Readout function	O
Input impedance	100MΩ
Input capacitance	2.0PF
Maximum Input:DC+AC peak	10KV CAT II
Maximum Input:AC RMS	7KV CAT II
Pulse voltage	＜7KVp-p
Maximum load current	100uA
Bandwidth	DC~120MHz
Rise time	3.0nS
Noise ratio	>60dB at 1KHz ; >50dB at 1MHz
DC signal error value	≤3% All ranges，≤3%(0-35KV)
AC signal error value	≤3% at 1KHz
Temperature coefficient	≤200 PPM/℃
Match capacitance adjustment range	10PF~35PF
Safety inspection	符合 EN61010-031 CAT II 规范
Test line length	2M±0.2M
Operating temperature and humidity	0~40℃,80% or less
Store temperature and humidity	-10~45℃,80% or less
Color: Grip / Body	Colo: Griep/Body
Size	80mmx80mmX320mm
Weight	460g
