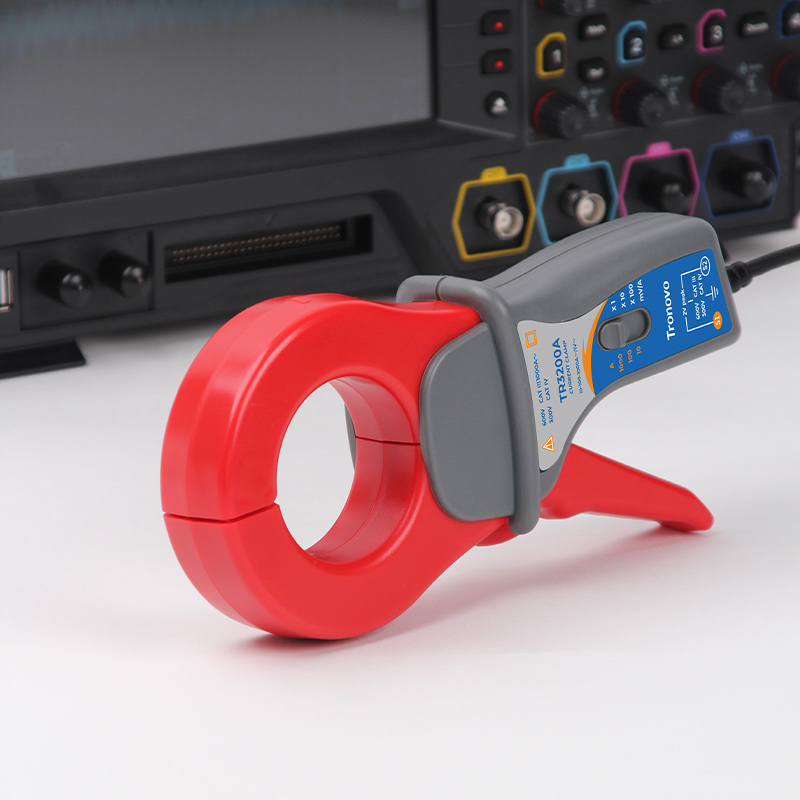

TR3200

1000A / 100KHz AC probe

TR3200 series current probes are used for AC current measurement. The measured current reaches an AC peak value of 2000A, with a bandwidth of 100KHz and a jaw diameter of about 100mm. The standard BNC output interface can be connected to any manufacturer's oscilloscope. Three measuring ranges can be switched to facilitate small current measurement. Add standard accessory BNC to banana socket to realize connection with digital multimeter. Widely used in motor drives, inverters, switching power supplies, avionics and other measurements.

Product Features
• Measurement of harmonic composition in current
• Detecting sinusoidal current waveform
• Measuring the phase shift in a sine wave
• Current of semiconductor switch
• distributed current monitoring
• power bus monitoring
• Monitor harmonics, power and power quality
• Large motor, pump, fan test
• IGBT、MOSFET tube current measurement

Current probe interface compatible for use

The oscilloscope cannot automatically identify the attenuation ratio of other brands of probes. You need to manually set the probe attenuation ratio on the oscilloscope to prevent measurement deviation.

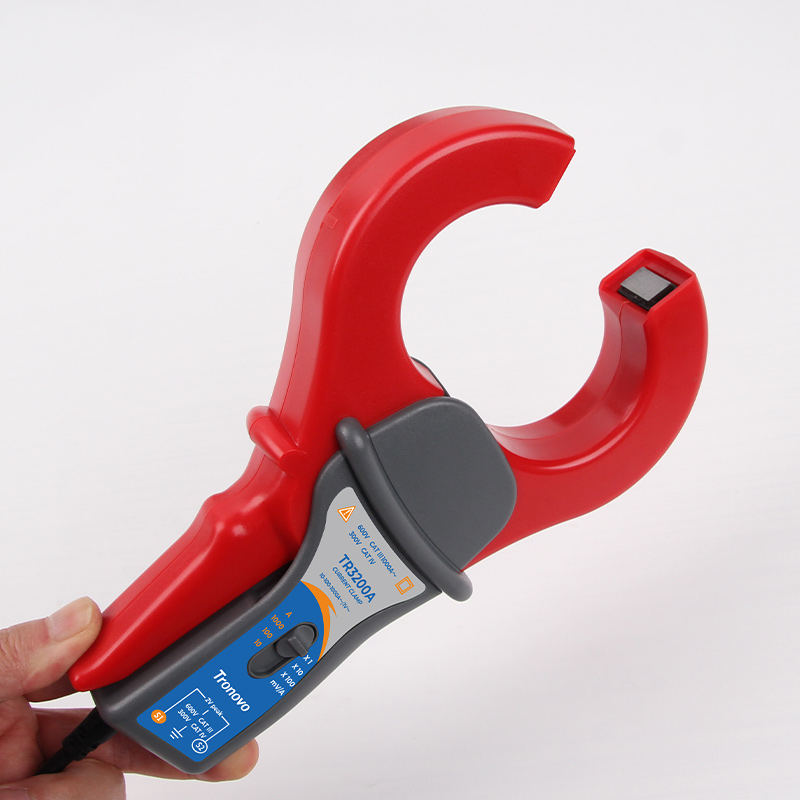

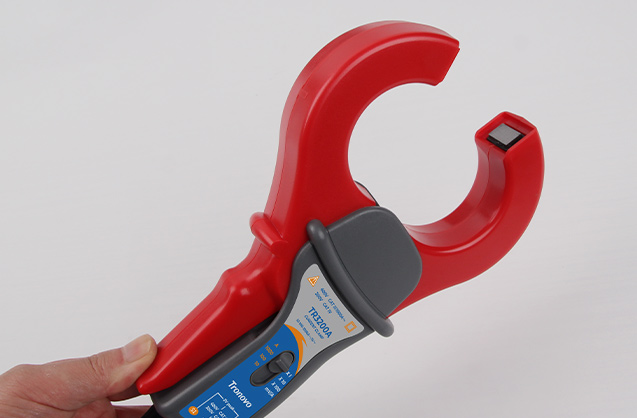

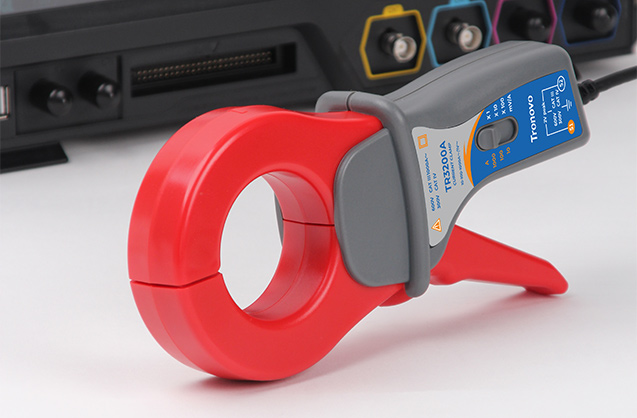

Pincer opening design

Fast and safe, no need to disconnect the tested circuit during use, press the handle to open the jaws, put the wire of the measured current into the jaws, and release the handle to close the jaws; the maximum size of the measuring conductor: Ø52mm.

Three-gear range accuracy, adjustable gear

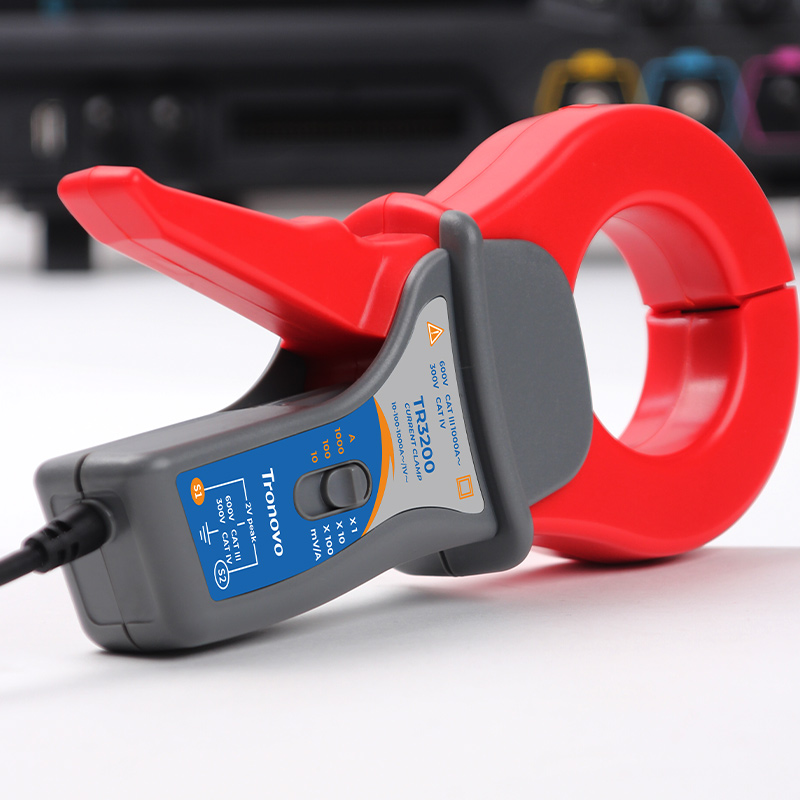

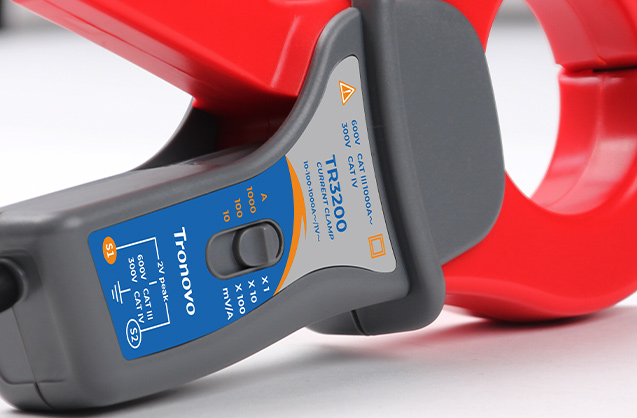

We need to select the appropriate measuring gear according to the measured current, and the range can be selected by pulling the gear switch at the 3 position on the panel.
100mV/A
0.1A ...10A AC (30A peak)
10mV/A
1A ...100A AC (300A peak)
1mV/A
1A...1000A AC (2000A peak)

Noise test

Measured 100mV/A gear, the probe has low noise and is very low about 5mA.

Start-up current test

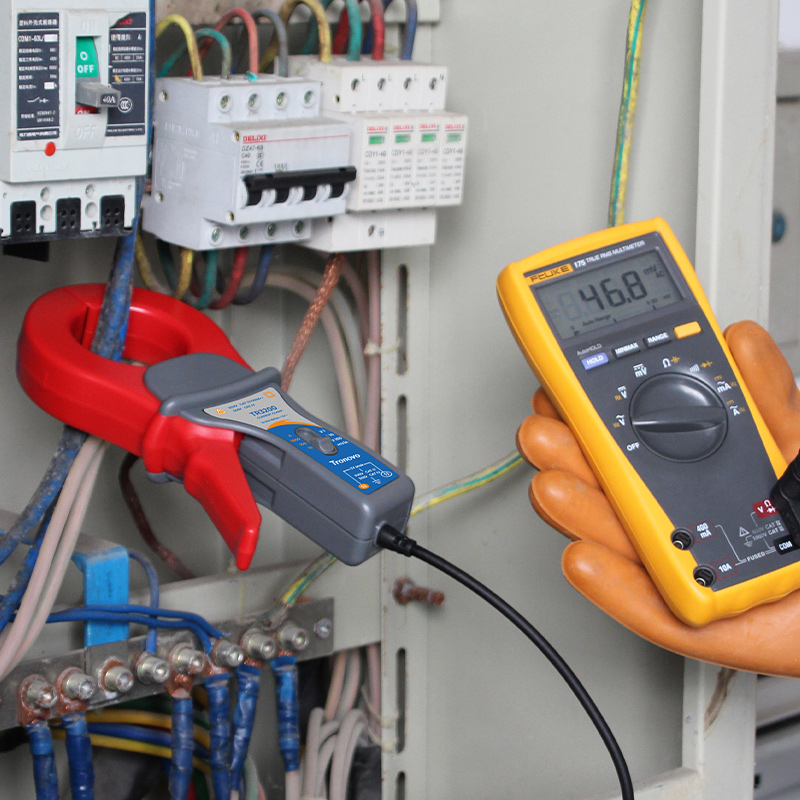

When the motor is turned on, start the current test instantly.

Model	TR3200
Bandwidth	100KHz
Rise time	≤3.5μs
Input Type	AC
Accuracy	±3% ±2% ±1%
Current conversion ratio	1mV/A 10mV/A 100mV/A
AC Peak	1000A
Maximum operating voltage	600V CATⅢ
Jaw diameter	Ø52mm
Cable length	150cm
Interface Type	BNC
Working environment	0~40°C,80%orless
Storage requirements	-10~45°C°C,80%orless
Weight	550g
Overall dimension	216X111X45mm
