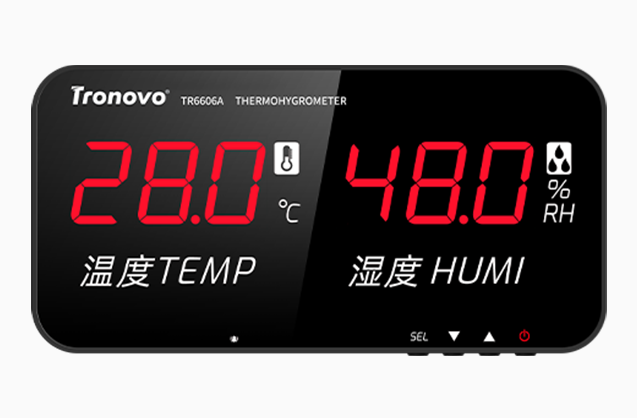

TR6606A large-screen thermohygrometer

TR6606A is a large-screen temperature and humidity instrument, used to measure the ambient temperature and relative humidity, large-screen display, 1.8 inches, can set the upper limit threshold, over-limit alarm function, built-in alarm, external alarm output, alarm duration setting, multi-fixed measurement, suitable for multi-occasion application, can be placed on the desktop, wall-mounted, hanging and 1/4" inch copper nut fixed bracket measurement. For example, it is used for temperature and humidity measurement in various occasions such as warehousing, factories, hospitals, schools, airports, homes, etc.

Features:
• Accurate measurement with Switzerland sensors
• High-definition font, clear display in low light
• Stable work, SMT chip process
• Support for inspection, each factory is accurate
• Temperature alarm, temperature alarm can be set
• Humidity alarm, humidity alarm can be set
• External siren, long distance loud alarm
• Support dual power supply, power supply and power bank power supply
• Long service life, open mold high quality injection molded housing
• Four fixing methods, suitable for various scenes

Temperature-humidity is detected at the same time

• High-definition soft light large-screen display;
• Real-time grasp of on-site data;
• One screen of temperature and humidity dual display data is more intuitive;

The taste of the four winds should be designed

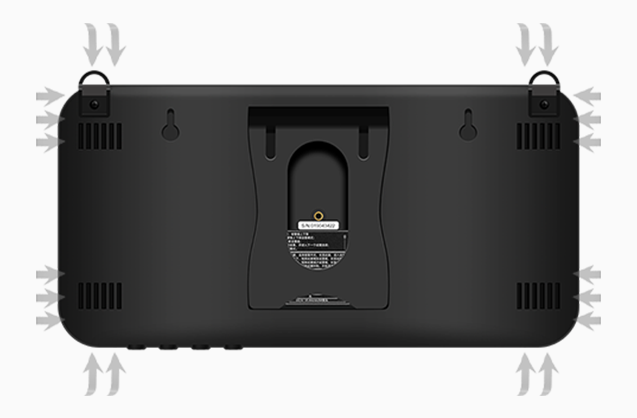

There are sensors around the back, so that the air can have wider access to the internal sensors, making the measurement more sensitive and accurate.

Industrial-grade materials and processes

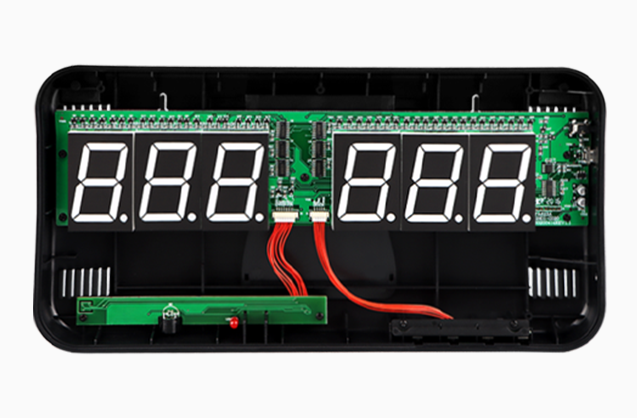

The SMT placement processing inside the instrument is relatively manual welding or plug-in, which can ensure that the solder joint defect rate of the product components is greatly reduced, the reliability and vibration resistance are improved, the placement process reduces electromagnetic and radio frequency interference, and the high-frequency characteristics are also improved. It is calibrated at the factory and does not need to be recalibrated.

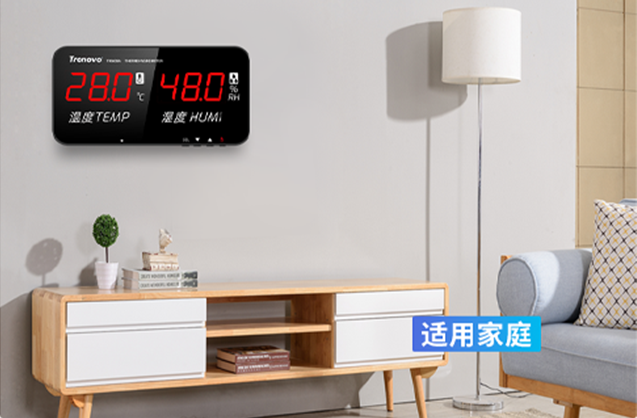

Suitable for all occasions

There are a total of 3 installation methods for large screen temperature and humidity meters, and we provide positioning drawings for wall-mounted customers to help you quickly install the meter。

Model	TR6606A
Sensor type	High-precision digital sensors in Switzerland SHTC3
Refresh speed	2 seconds/time
Ambient temperature	Temperature:-20°C 〜 80°C Precision:±1.0°C Resolution:0.1°C
Relative humidity	Range：0~100%RH Precision:±4%RH Resolution:0~99(0.1)%RH 100 (1)%RH
Temperature alarm Set the scope	Hi：-19°C-60°C Low：-20°C-59°C
Humidity alarm Set the scope	Hi：2~99%RH Low：1~98%RH
Duration of the alarm Set the scope	6 seconds ~ 120 seconds (cyclic addition and subtraction) Factory default is 6 seconds
How it is displayed	digital tube display; Display size:1.8"Inch words
Maximum display	Temperature 80 degrees Celsius, humidity 100% RH;
Sample rate	About 3 times per second
Out-of-range display	The high position shows "Sea" or "Luo";
Working environment	0~40°C, relative humidity less than 80%;
power supply	220V AC input, output 5V 1A adapter
Altitude	＜2000m
Operating temperature	-20 ~ 60°C, 60 ~ 80°C working time is not higher than 10 minutes
Store at temperature/humidity	0℃~60℃ 45%~80%RH
Product dimensions	323x173x40mm (LxWxH)
Weight	Approximately 700 g
