TR15K Oscilloscope High Voltage Test Stick

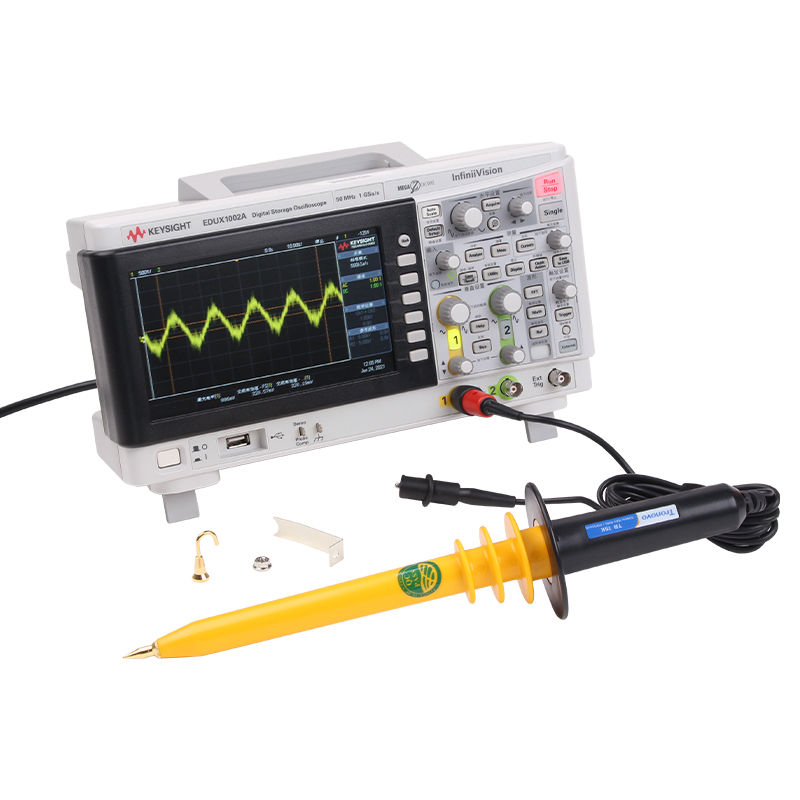

The TR15K can measure voltages up to 15KV DC, 10KV AC, 100MΩ input impedance, low load effect, and 40MHz high bandwidth enables you to capture fast, high voltage signals. The high-voltage probe can be connected to an oscilloscope for direct measurement, which is suitable for high-voltage grounding reference voltage measurement. In addition, an optional adapter can measure the voltage value on the digital meter. The TR15K uses an environmentally friendly silicone insulating medium to increase insulation properties and ensure that internal components do not oxidize when measuring high voltages, extending the service life.

Features:
• Maximum voltage measurement: 15KV DC+ACpeak
• Bandwidth up to 40MHz
• Input impedance 100MΩ
• Fixed attenuation ratio of 1000:1
• Can be connected to a multimeter with an impedance matcher

Three types of measuring heads

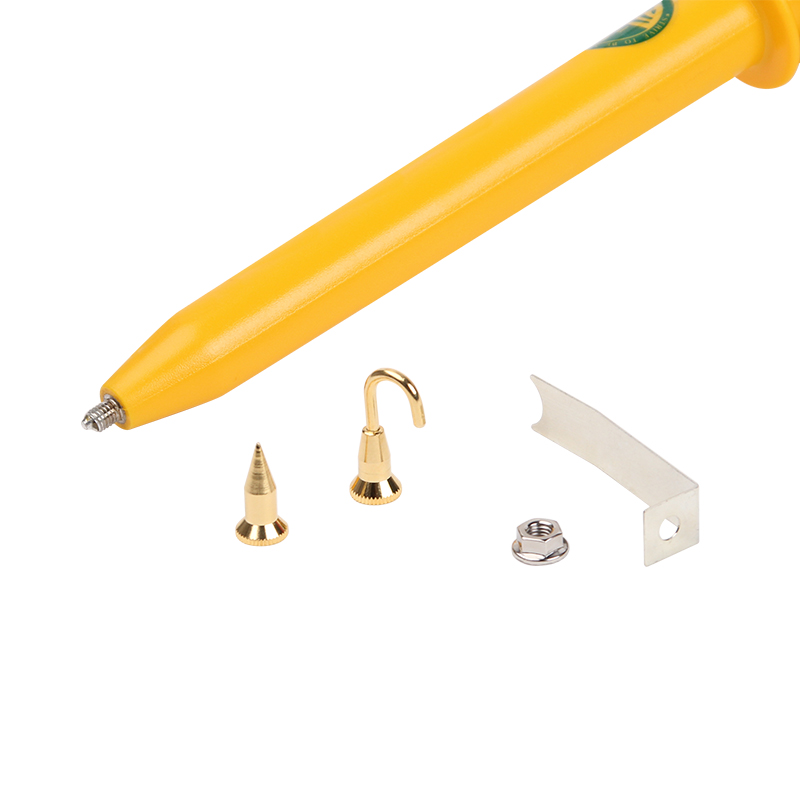

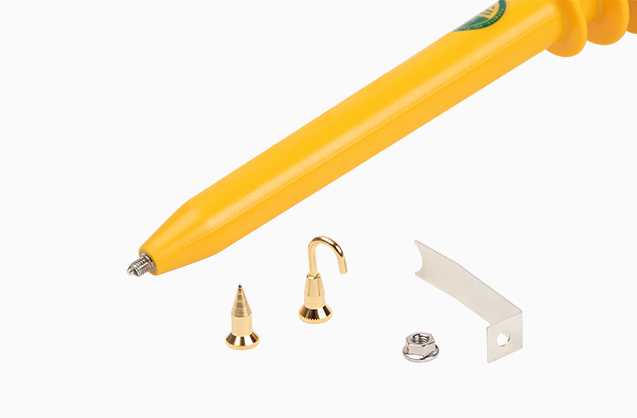

There are 3 types of measuring connectors from the factory, namely:
Pin probes
Hook probe
Chip probes

Compatible with any oscilloscope

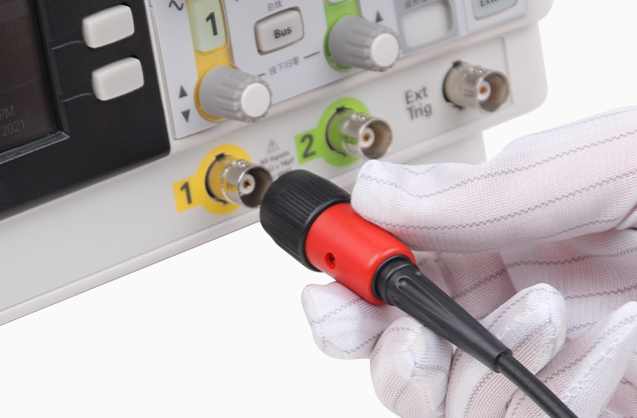

The probe adopts a standard BNC plug, which can be used with domestic and imported oscilloscopes.
*The interface includes capacitance matching adjustment function, whenever the test rod is replaced with the oscilloscope, please correct it according to the manual, the closed adjustment point has been adjusted well at the factory, please do not adjust it again for non-professionals.

Longer ground wire

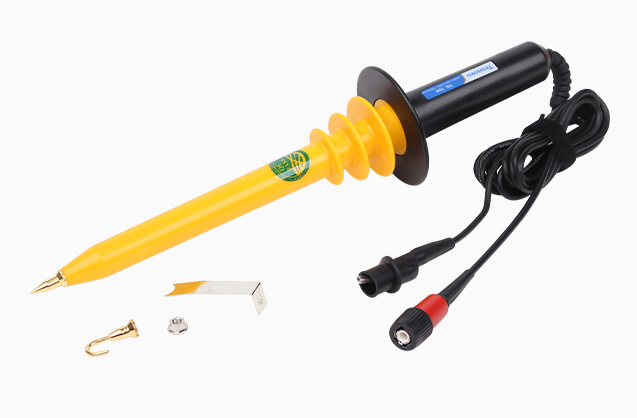

Supplied with a grounding extension cord from the factory
*When the measurement frequency is greater than 40MHz, the long ground wire must be replaced with an alligator clip in order to achieve a minimum ground resistance value and a higher frequency response.

ModelTR15K
Test voltageDC:0～15KV
AC:pulse≤30KV peak to peak
AC:sine wave≤10KV rms
Signal noise ratio (S/N)DC≧60dB(1KHz)
≧50dB(1MHz)
Test bandwidthDC～40MHz(-3dB)
Attenuation scale1:1000
Rise time/strong>≤7ns
Input capacitance100M Ω ±0.5%
Matching capacitance (adjustable)3.0PF±0.5%PF
Line length2.0meter(±0.2m)
Temperature coefficient≦200PPM/℃
DC test degree±1%(DC to 10KV)， ±2%(10KV to 15KV)
AC test degree±1%(DC to 10KV)-3dB 50MHz
Secure applicationsCE,GS,UL,CUL
Operating temperature-20℃~+70℃
Size340mm (length), 80Φ (cylindrical)
Weight250g
