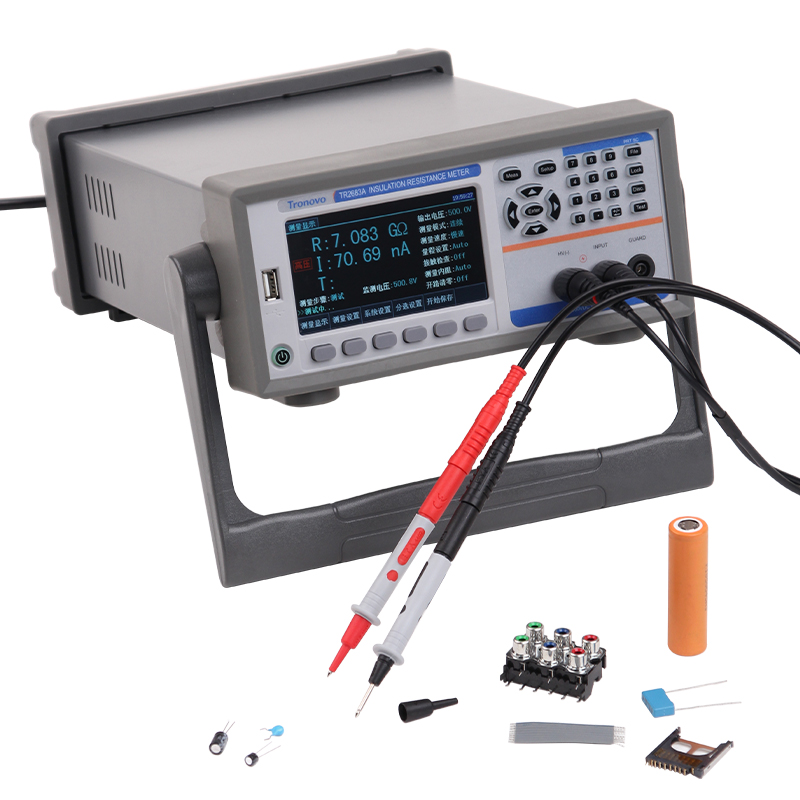

TR2683A/B/C/D Insulation Resistance Tester is a measuring instrument with color liquid crystal display that can quickly measure the insulation performance of electronic components (especially capacitance), dielectric materials, equipment and wires and cables. The TR2683A/B has a sorting output and an external single pulse signal input interface, which is easy to operate in a pipeline and is equipped with a communication interface to realize the remote operation of all functions of the instrument by the microcomputer. The instrument has super anti-interference ability, and the test is more reliable.
Features:
• 4.3-inch 24-bit true color color LCD screen with 480×272 resolution
• Optional operation interface in Chinese and English
• Soft switching function
• Insulation resistance and leakage current dual display
• Zeroing function
• Contact check function for capacitive materials
• Rapid test: 30ms/time
• Programmable sequential test mode
• 6 ranges, manual or automatic
 |

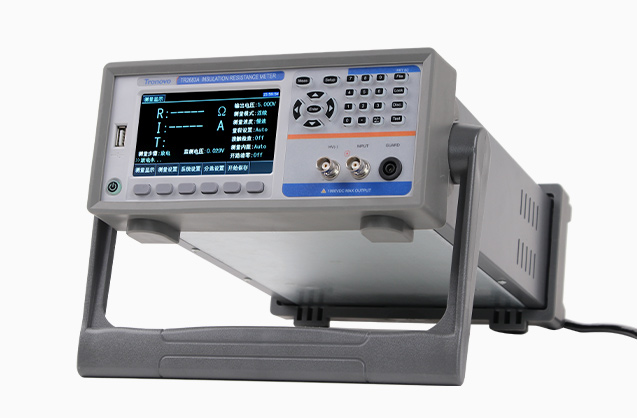

Insulation resistance, leakage current dual display color LCD screenEye-moist color matching, equipped with high-definition color LCD screen, resistance measurement, temperature measurement, statistical display, and a variety of parameters are displayed at the same time. |

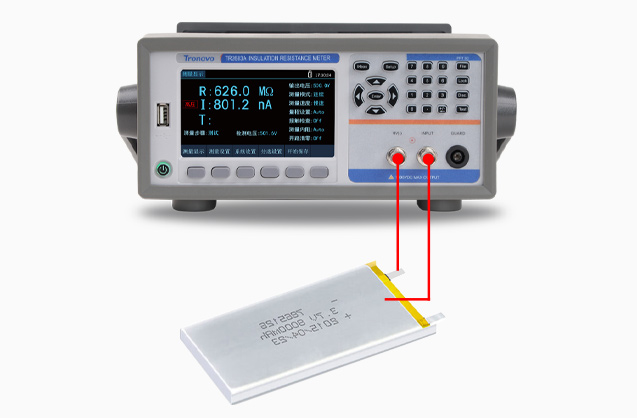

Lithium batteries - insulation resistance measurementIn applications such as electric vehicles where a series battery is connected to a high voltage, the resistance between the electrodes of the battery and the outer packaging of the battery is measured to check whether the insulation resistance is adequately guaranteed. In addition, by measuring the insulation resistance between the electrodes before the electrolyte is injected, defective products can be detected in the early process. |
 |
 |

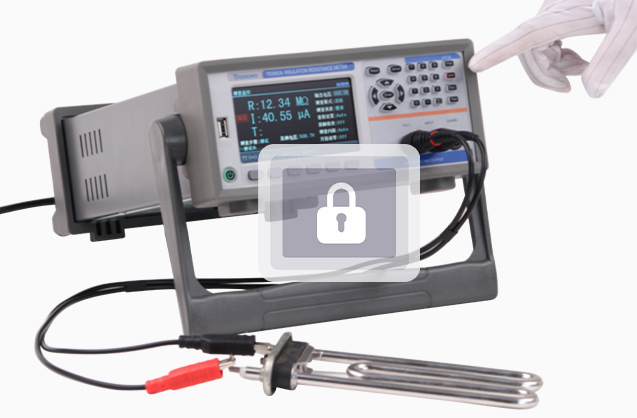

Key lockingThe resistor panel button has a lock setting, when the panel Lock button (bright red) is pressed, it enters the lock mode, and the functions of some buttons on the panel cannot be used and changed, and the lock can be unlocked again. |

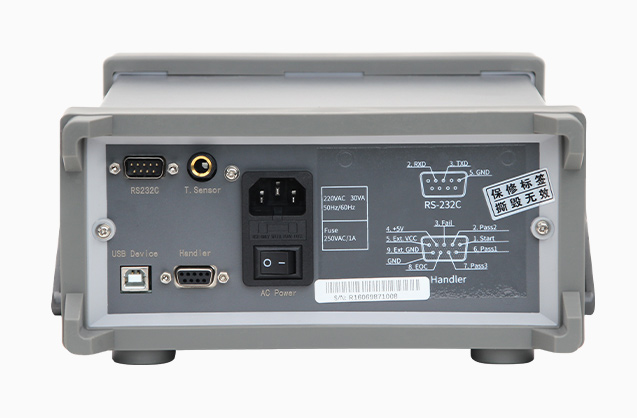

Rich interfacesThrough the HANDLER interface, it is easy to form an automatic test system to achieve automatic testing. The instrument outputs a comparison result signal and a contact signal through this interface, and an external trigger signal can be input through this interface. |
 |
 |

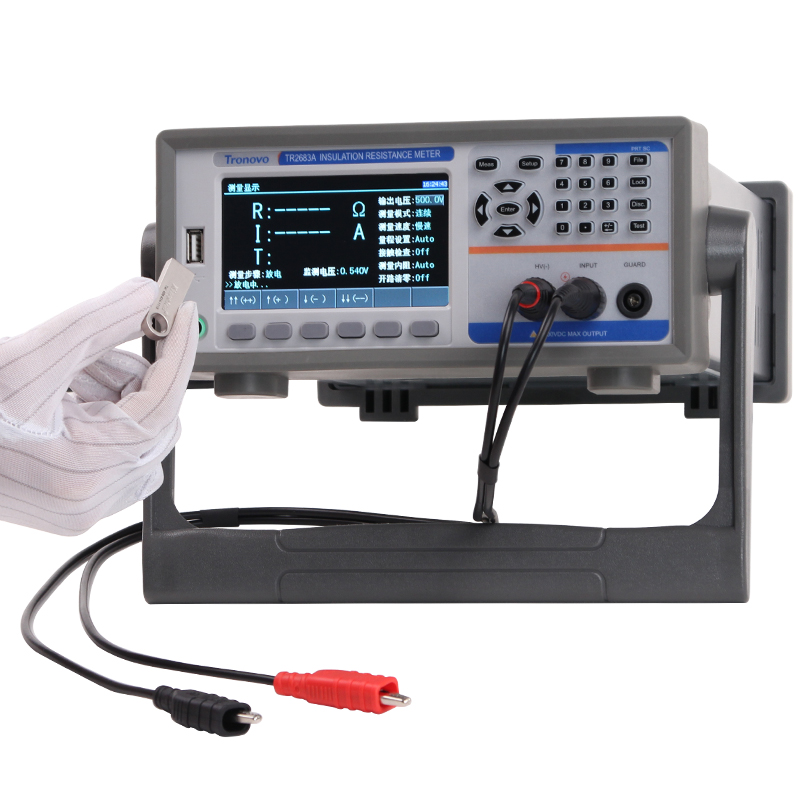

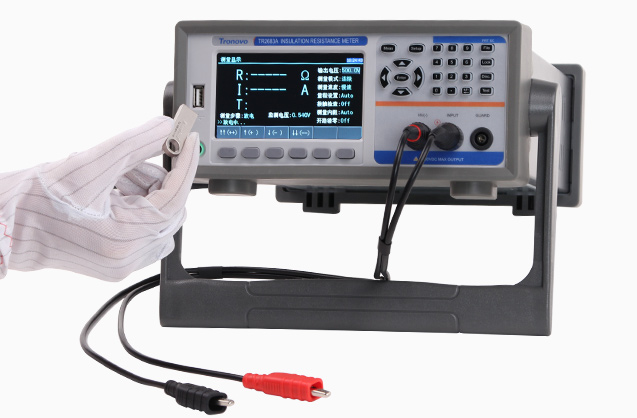

USB interface - screenshot functionOne-click printing screen, data logging function, automatic upgrade of instrument operation software via USB HOST. |
| Model | TR2683A | TR2683B | TR2683C | TR2683D |
| Resistance | Measuring range:100KΩ～10TΩ Precision:Voltage≥ 10V and I>10nA: ±2% Voltage< 10V or I≤10nA: ±5% | Measuring range:100KΩ～5TΩ Precision:Voltage≥ 10V and I>10nA: ±2% Voltage< 10V or I≤10nA: ±5% | Measuring range:100KΩ～1TΩ Precision:Voltage≥ 10V and I>10nA: ±2% Voltage< 10V or I≤10nA: ±5% | Measuring range:100KΩ～500GΩ Precision:Voltage≥ 10V and I>10nA: ±2% Voltage< 10V or I≤10nA: ±5% |
| Current | Range: | |||
| Voltage | Range:1V～1000V Accuracy: Voltage≥10V time1%±1V Voltage＜10V time10%±0.1V | Range:1V～500V Accuracy: Voltage≥10V 时1%±1V Voltage＜10V time10%±0.1V | Range:10V～1000V Accuracy: Voltage≥10V 时1%±1V Voltage＜10V time10%±0.1V | Range:10V～500V Accuracy: Voltage≥10V 时1%±1V Voltage＜10V time10%±0.1V |
| Current limit | 10mA | |||
| Switch | Turn it on or off manually on the front panel, or control it with a built-in timer or remotely | |||
| Charging time | 0～999s，Programmable | |||
| Measurement time-lapse | 0～999s，Programmable | |||
| Test speed | Fast: 30ms for a single measurement≤ Slow: 60ms for a single measurement≤ | |||
| Comparator function | Fourth gear: three grades are qualified, and one gear is unqualified | |||
| Measuring method | Automatic, hold | |||
| Memorizer | There are 30 groups inside the instrument and an external USB flash drive | |||
| Standard interface | RS232C，USB HOST，USB DEVICE，HANDLER | |||
| Operating temperature, humidity | 10°C～40°C，≤90%RH | |||
| Power requirements | 198～242VAC (50Hz/60Hz) | |||
| power consumption | ＜50VA | |||
