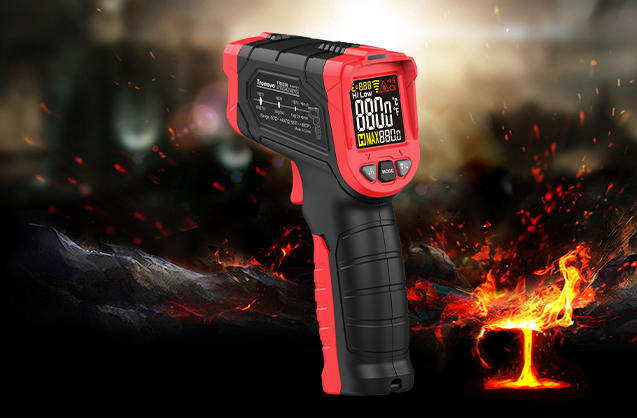

This series of handheld industrial infrared thermometers is a high-performance, high-quality instrument newly developed by our company that uses a single-chip computer for data acquisition and processing. Industrial infrared thermometer has the functions of emissivity adjustment, high value, high and low temperature alarm setting, etc., it has the advantages of high measurement accuracy, fast response, small size, light weight, simple operation, reliable use, etc., and can be widely used in petroleum, chemical, railway, electric power, textile, plastic, metal processing, energy saving and other industries to quickly and non-contact measurement of object surface temperature.
Features:
• High-precision temperature measurement
• High and low temperature alarm function
• Fast response to measurements
• Limit setting alarm function
• Quick lock-in MAX temperature value for quick user reading
 |
Industrial-grade infrared thermometer• High-precision temperature measurement |
Redefining the "infrared thermometer"Nine core advantages, more complete measurement functions. |
 |
 |

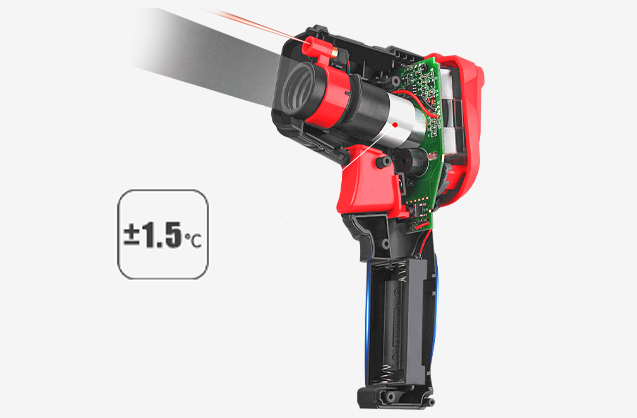

High-precision sensor [industrial grade]The measurement accuracy is ± 1.5°C, the quality of the visible, the use of high-quality electronic parts, and the accurate reception of temperature signals is more accurate. |

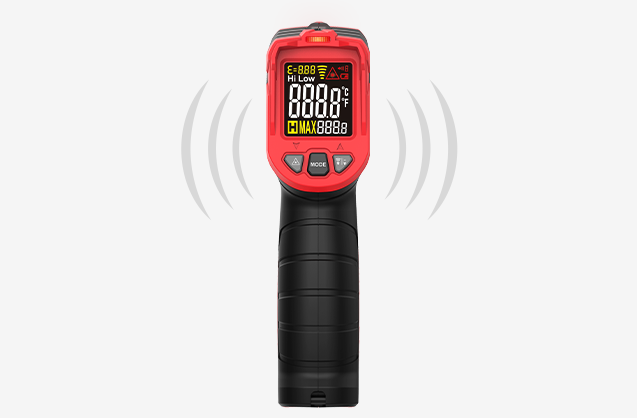

Limit setting alarm functionAccording to the use of the needs of the high and low temperature alarm value to quickly alarm prompt. |
 |
 |

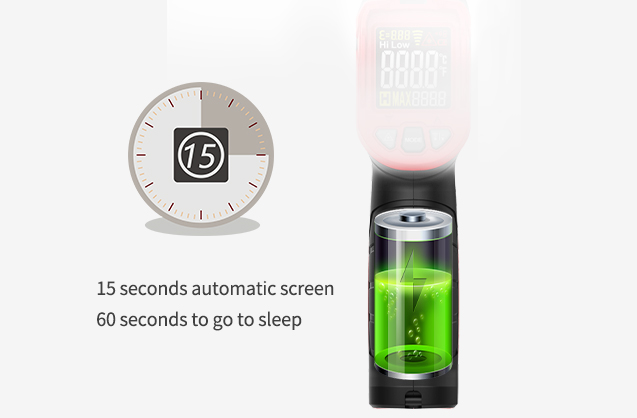

Smart Sleep [Energy Saving]The measurement accuracy is ± 1.5°C, the quality of the visible, the use of high-quality electronic parts, and the accurate reception of temperature signals is more accurate. |
Sturdy body [durable and not afraid of falling]The slim body is comfortable to hold, and it has durable and drop-resistant sturdy characteristics that can fully resist drops and vibrations during actual use. |
 |
* This instrument is an industrial infrared thermometer and cannot be used for body temperature testing of humans and animals.
| Model | TR6248 | TR6268 | TR6288 |
| Temperature measurement range | -50℃~480℃ -58℉~896℉ | -50℃~680℃ -58℉~1256℉ | -50℃~880℃ -58℉~1616℉ |
| Measurement accuracy | (1.5%+1℃) (1.5%+5℉) | ||
| Repeatability | ±0.5%或±1℃(2℉) | ||
| Display resolution | 0.1℃(0.1℉) | ||
| Response time and wavelength | Less than 500ms 8~14um | ||
| Emissivity | 0.1~1.00 adjustable (step size 0.01) | ||
| Measure the object distance ratio | 12:1 | ||
| Laser aiming | Less than 1mW 650nm laser class II | ||
| °C/°F conversion | √ | √ | √ |
| Backlit display | √ | √ | √ |
| Automatic power off | √ | √ | √ |
| How the screen is displayed | VA color screen | ||
| Out-of-range alerts | Low "LO" or High "HI" | ||

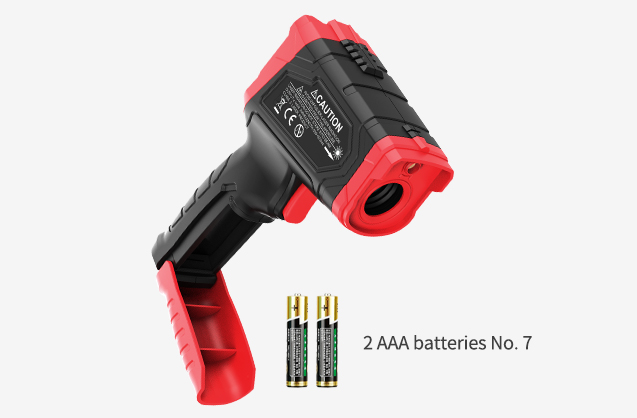

| power supply | 1.5V x2AAA (No. 7 battery) | ||
| Operating environment temperature/humidity | 0℃~50℃； 10~95%RH is non-condensing | ||
| Storage temperature | -20℃~60℃ | ||
| Product dimensions | 155x92x42mm | ||
| Net weight of the product | Approx. 180 g (excluding battery) |
