TR3036A is a general purpose oscilloscope current probe that is compatible with more than 95% of oscilloscopes on the market, with a frequency response measurement range of 0.5A to 600A (peak) up to 10KHz, and a BNC output terminal. Connect to an oscilloscope for accurate measurement of AC or DC current waveforms, and a three-position slide switch on the handle panel selects range and ON/OFF.
Features:
• AC and DC dual-use
• Current measurement range: 0.5A to 600A
• Measurable cable (Ø30mm or Ø24mmx2)

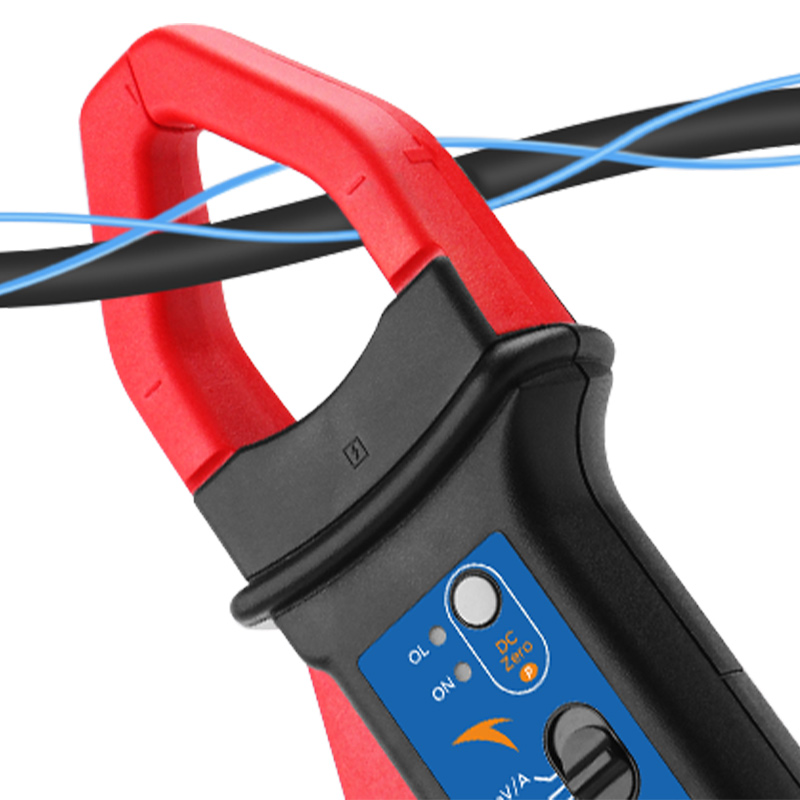

• Narrow jaw design, easy to use in tight spaces with dense wiring

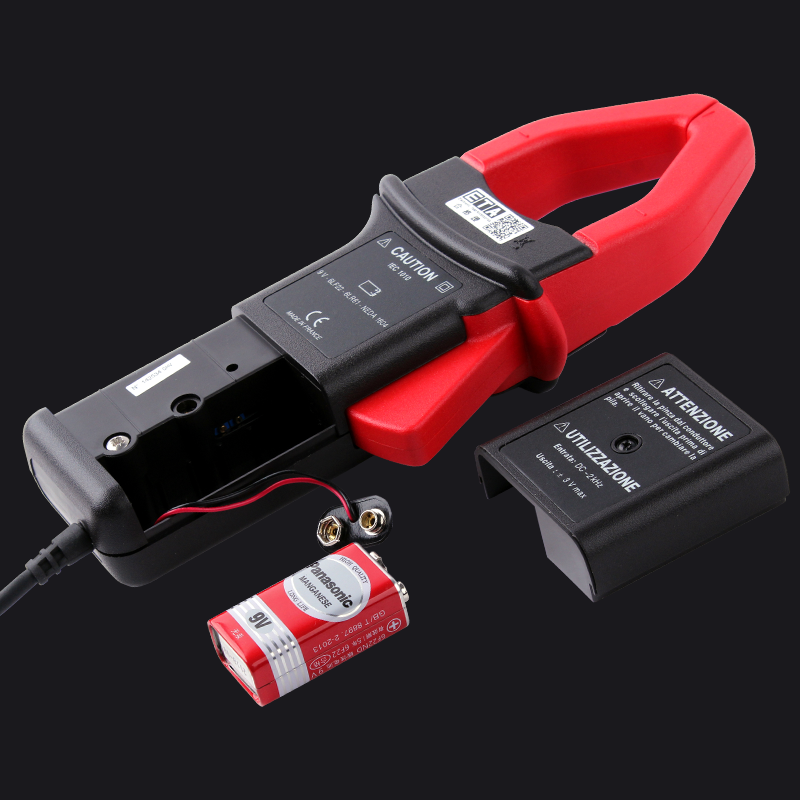

• 9V alkaline battery, 55 hours of continuous operation
• Accurately measure, analyze, and display distorted current waveforms and harmonics
 |

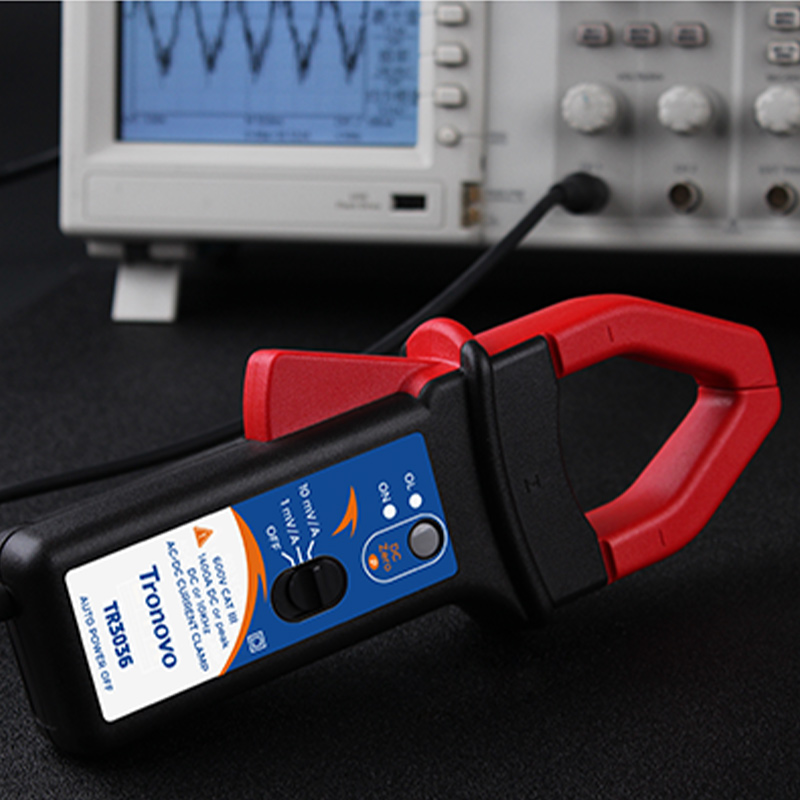

Low frequency AC/DC probeStandard BNC interface design, adaptation Keysight, Tektronix, Rohde and Schwarz and other mainstream oscilloscope, no adapter, plug and play. 600AD high current 10KHz frequency easily cope with industrial environment measurement needs. |

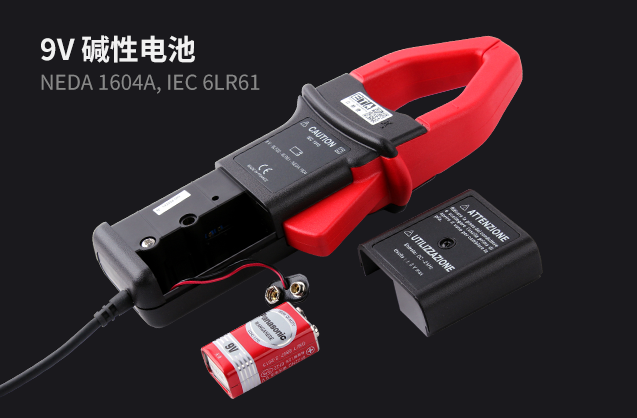

Battery PoweredUse 9V alkaline battery power supply, in order to provide lower base noise, go out to work without looking for city power. The probe has a standby function, which can effectively extend the use time, or you can manually turn off this function. |
 |
 |

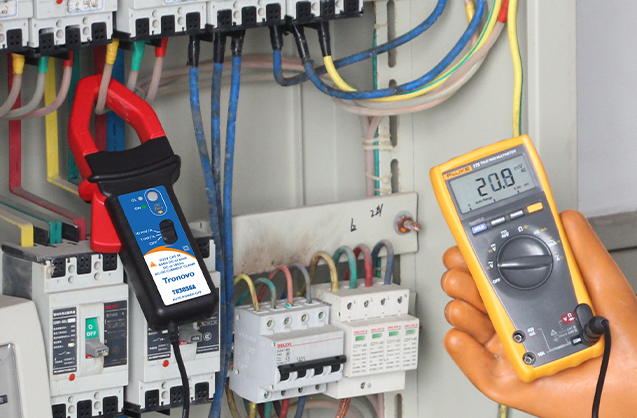

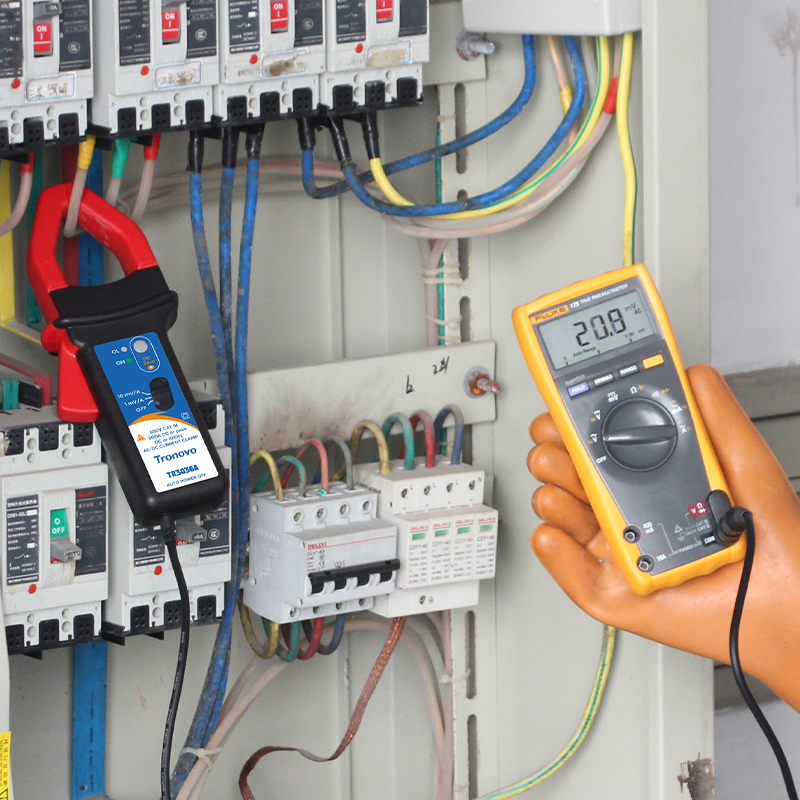

Numerical measurement functionThe matching BNC to banana plug adapter is used to connect the output of the current probe to the multimeter. The voltage signal output by the current probe can be directly measured by selecting the millivolt (mV) voltage position of the multimeter. The voltage value is in direct proportion to the measured current value, and its unit is millivolt (mV), which is used for indirect conversion to obtain the accurate current value. |

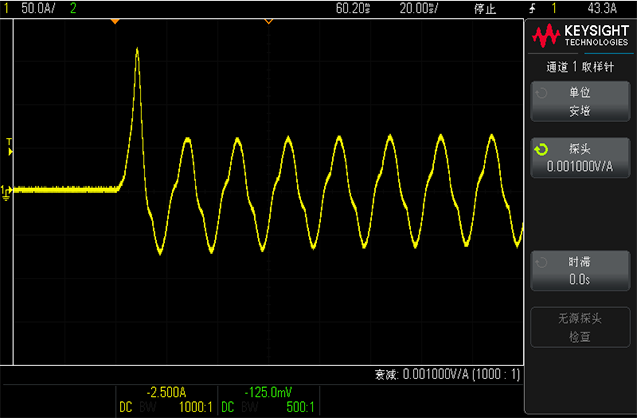

Starting currentWhen the motor is turned on, its instantaneous starting current will be several times or even dozens of times the normal operating current. The high current probe can clearly restore the waveform and shorten the product development and test time. |
 |
 |

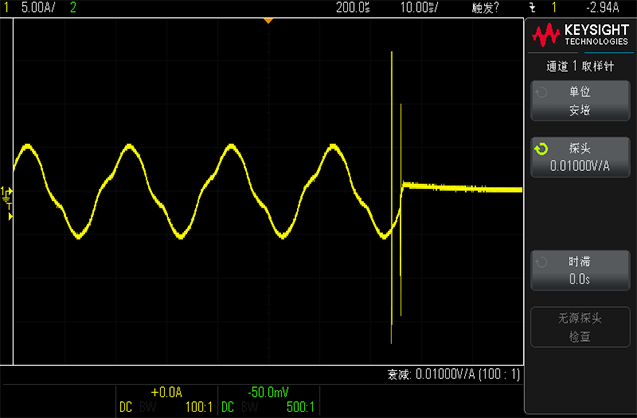

Instantaneous waveformIn the power system, there will be a large current fluctuation when closing the gate and power off, and sometimes there will be a relatively high reverse current, that is, the phenomenon that the current flows back from the output end of the system to the input end. This reverse flow can lead to circuit damage, reduced efficiency and even safety incidents. The reverse current waveform and value are grabbed by the tna head for optimization. |
| Model | TR3036A |
| Bandwidth (-3dB) | 10kHz |
| Rise time | 35uS |
| Enter the type | AC/DC |
| Precision | 士1.5% 土2.5% |
Current conversion ratio | 1mV/A 10mV/A |
DC maximum | 600A |
AC peak-to-peak | 1200A |
Communicate valid values | 400A |
Maximum operating voltage | 600V CATIII |
钳口直径 | ∅30mm |
Cable length | 200cm |
Interface type | BNC |
Power supply | DC9V battery |
Working environment | -10°C~+50°C |
Storage requirements | 0℃到+40℃ |
| Weight | 440g |
| Dimensions | 224X97X44mm |
