Electronic measuring instruments

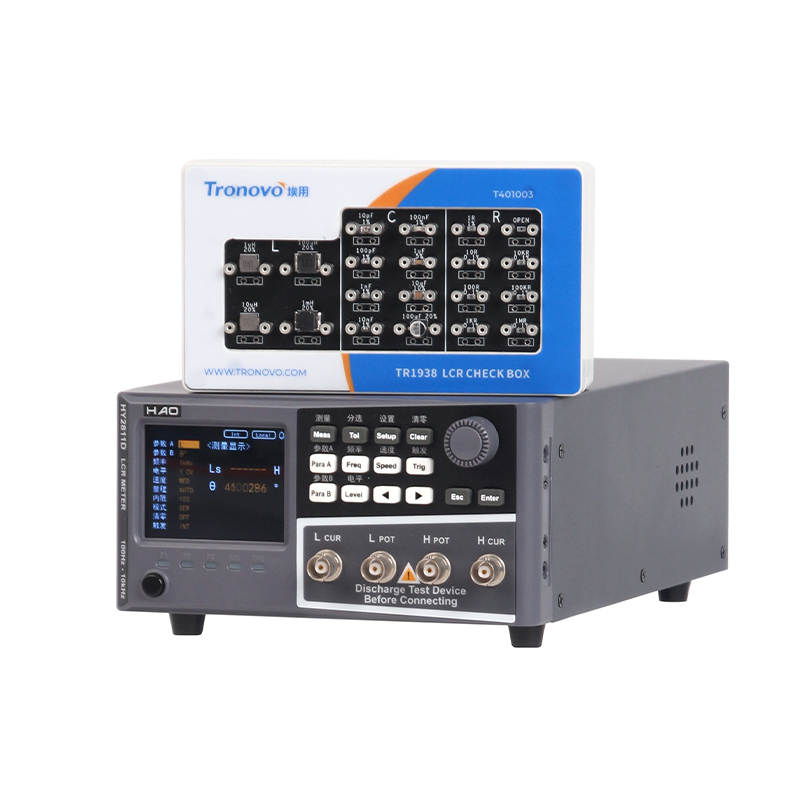

TR1938 LCR Tester Spot Check Box

The LCR tester inspection box is used in daily inspection and testing applications, and regularly inspects the equipment, through this preventive measure, it helps enterprises reduce the probability of tester failure and makes later maintenance easier.


LCR tester inspection box for daily inspection and testing applications

Regular inspections of equipment help companies reduce the chance of tester failures and make later maintenance easier through this preventive measure.

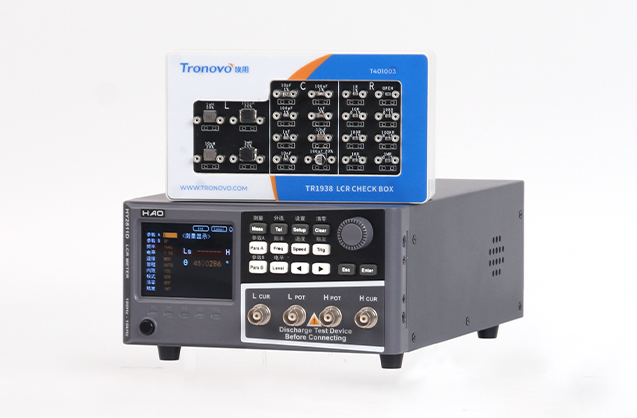

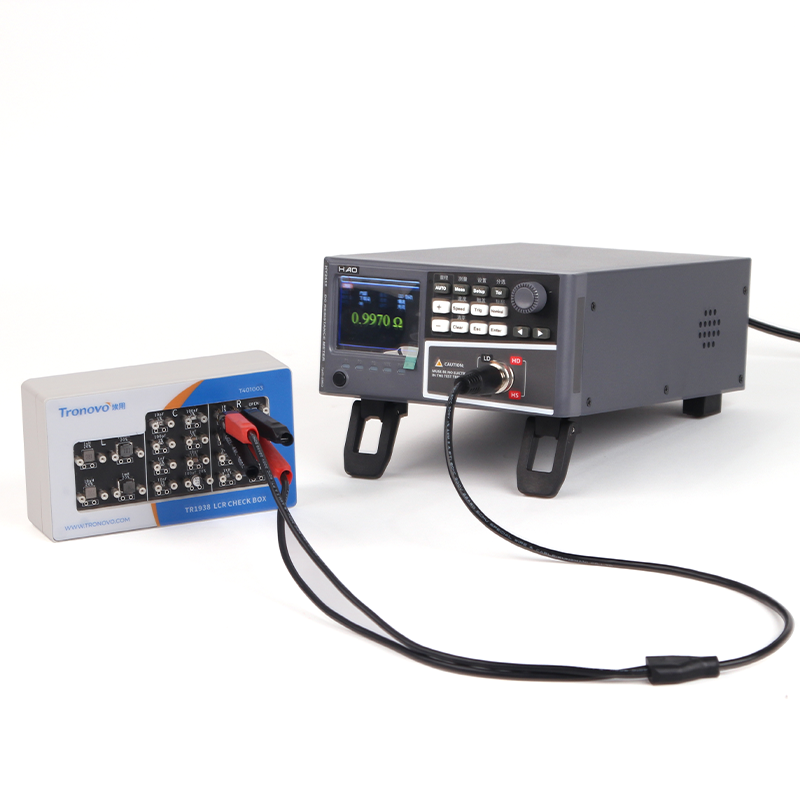

Product wiring method

Inductance, capacitance, and resistance check functions are possible.

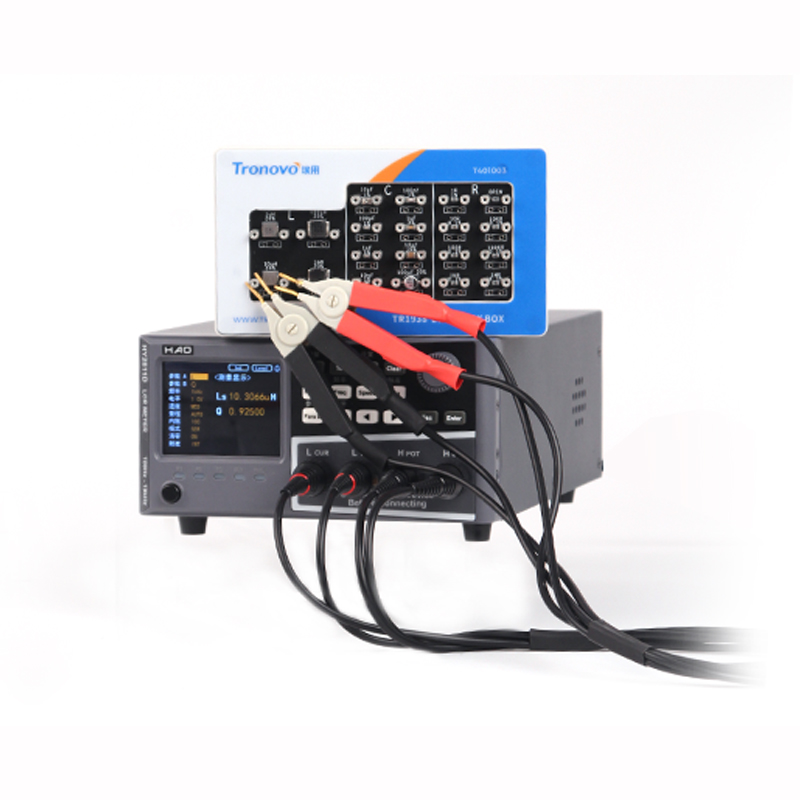

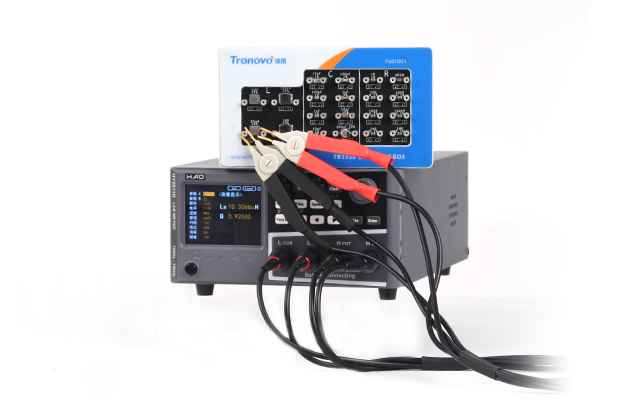

Inductance check, test examples

Four inductors with different inductance values are available.

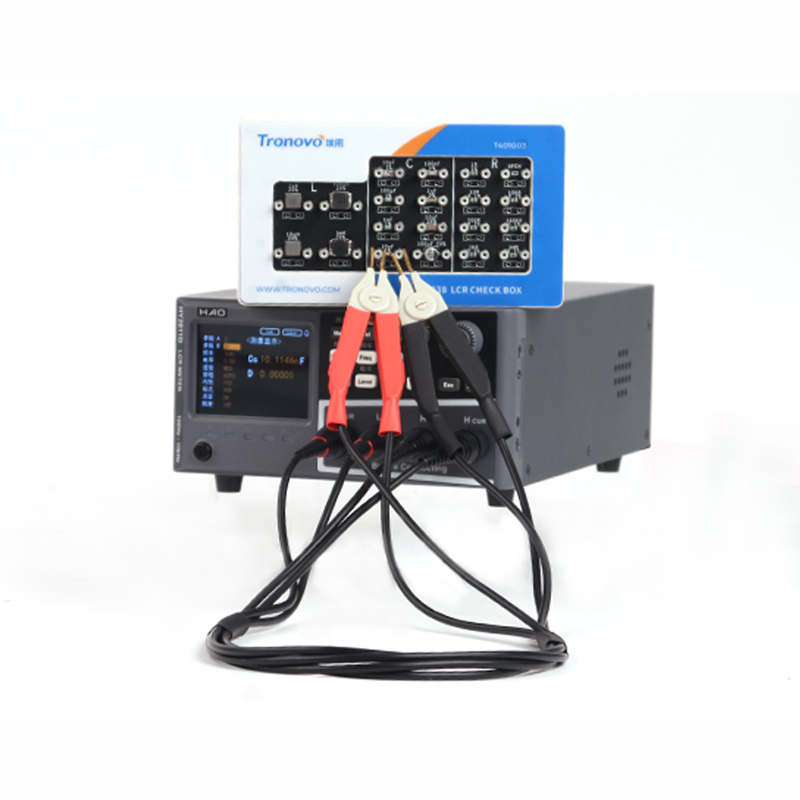

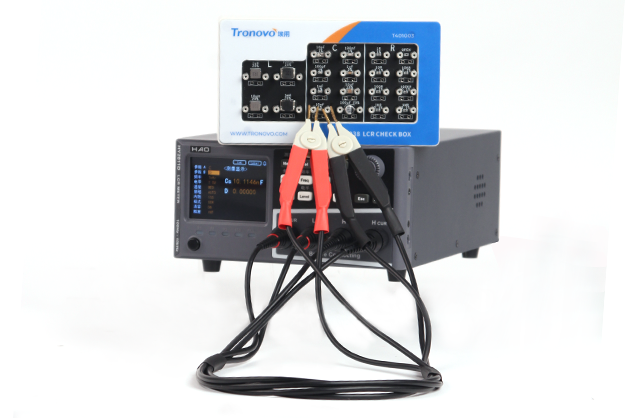

LCR bridge spot check, test example

Eight capacitance capacitance values are available with up to 1% accuracy

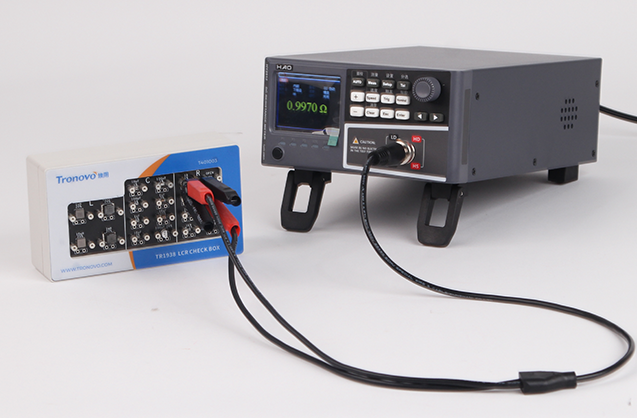

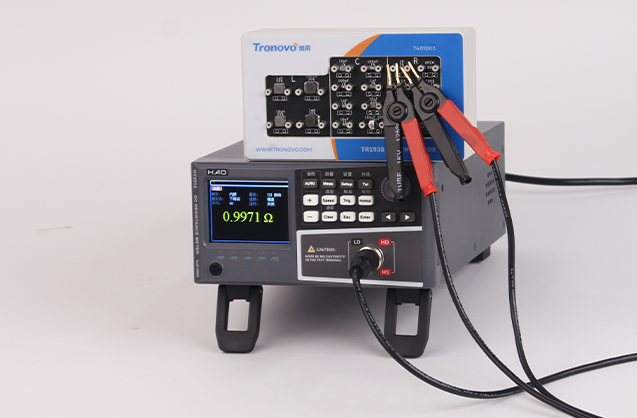

Resistance instrument spot check, test example

Seven different resistors are available with an accuracy of up to 0.1%.

ModelTR1938
Inductance test

Inductance:1uH / 10uH / 100uH / 1mH
Error:±20%

Capacitance test

Capacitance:10pF / 100pF / 1nF / 10nF / 100nF   Error:±1%
Capacitance:1uH ±1% / 10uH ±10% / 100uH ±20%

Resistance test

Resistance:1Ω      Error:±1%
Resistance:10Ω / 100Ω / 1KΩ / 100KΩ/ 100KΩ / 1MΩ
Error:±0.1%

Open circuit test

Resistance:> 999MΩ

Size

200×120×75(mm)
