TR3200 series current probes are used for AC current measurement. The measured current reaches an AC peak value of 2000A, with a bandwidth of 100KHz and a jaw diameter of about 100mm. The standard BNC output interface can be connected to any manufacturer's oscilloscope. Three measuring ranges can be switched to facilitate small current measurement. Add standard accessory BNC to banana socket to realize connection with digital multimeter. Widely used in motor drives, inverters, switching power supplies, avionics and other measurements.
Product Features
• Measurement of harmonic composition in current
• Detecting sinusoidal current waveform
• Measuring the phase shift in a sine wave
• Current of semiconductor switch
• distributed current monitoring
• power bus monitoring
• Monitor harmonics, power and power quality
• Large motor, pump, fan test
• IGBT、MOSFET tube current measurement
 |

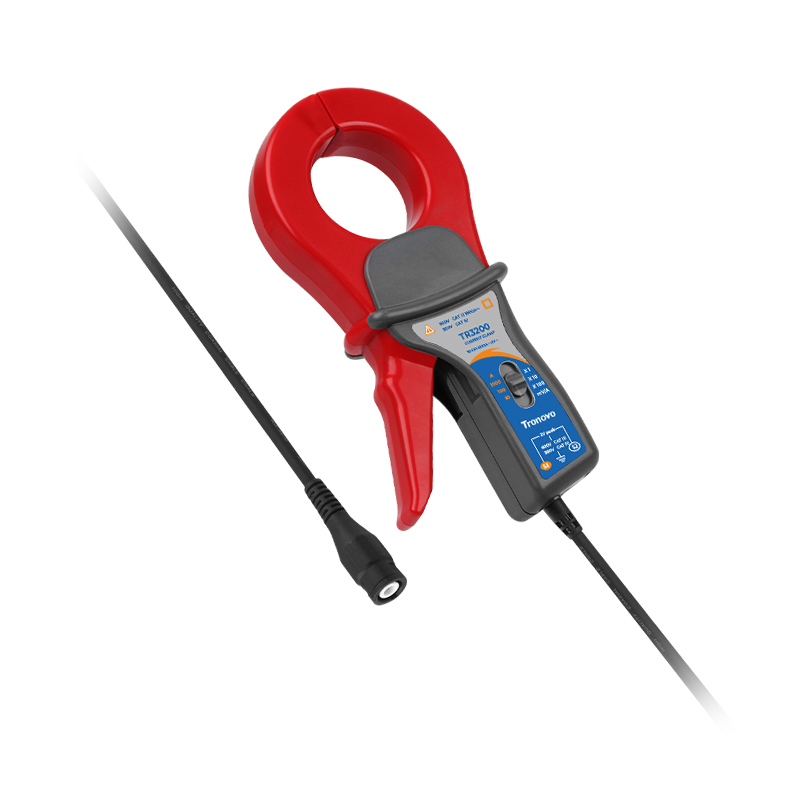

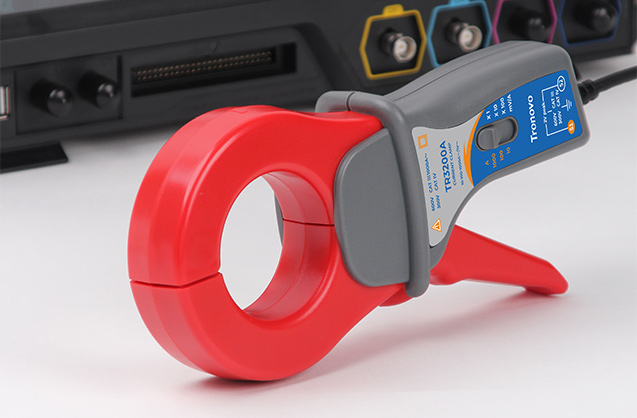

High precision AC probeFully compatible with standard BNC probe interface, direct connection to Keysight/Tektronix/Rohde and Schwarz oscilloscope, 1MΩ input impedance matching. It adopts bayonet type anti-falling design (rotating locking structure), directly inserted into the oscilloscope channel interface, plug and play without switching. |

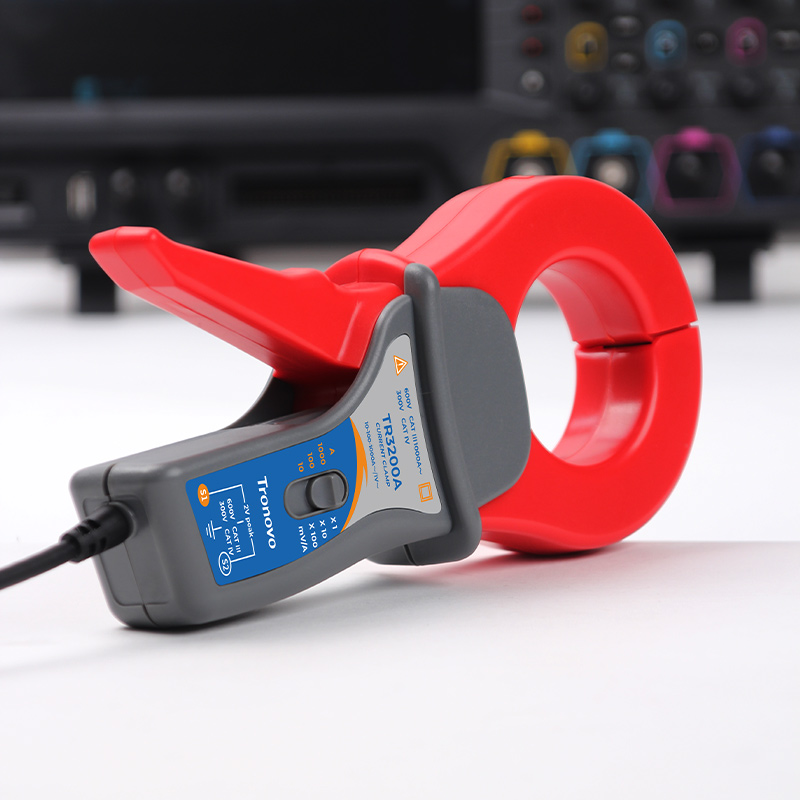

Three range high current probeThree-gear range current probe, one-key switching of 10A/100A/1000A high and low range, seamlessly covers large current surge peak to small current detection, and solves the pain point that a single probe cannot take into account large current impact and small signal precision measurement! |
 |
 |

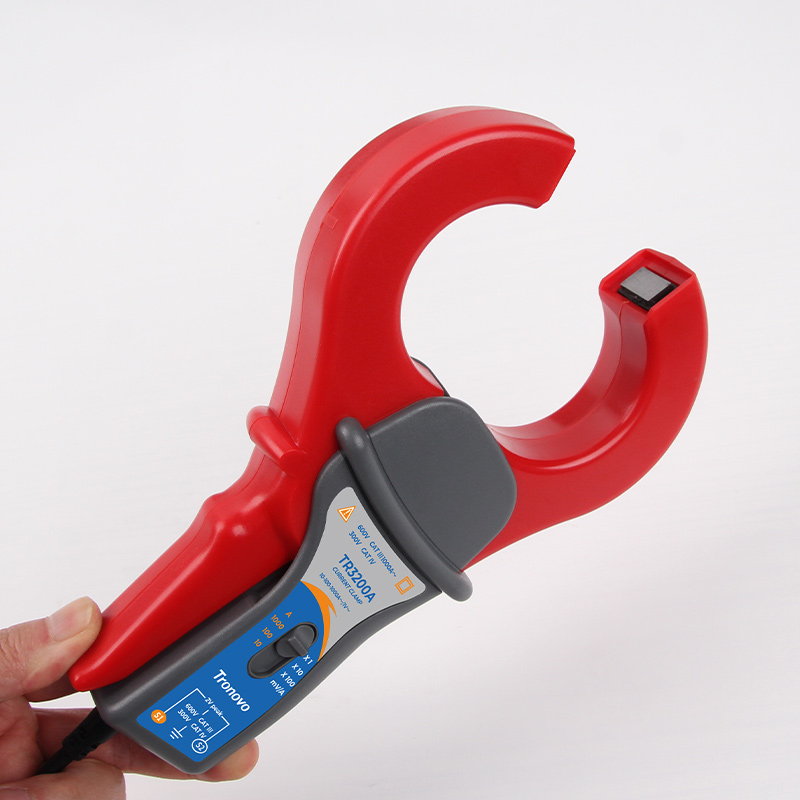

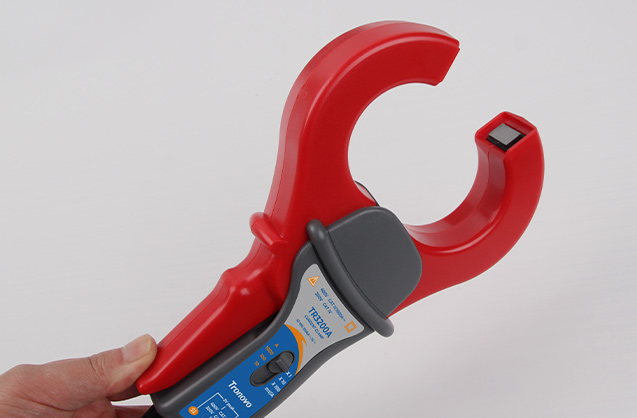

Larger pincer openingThe 52mm super-large jaw current probe can easily clamp 35mm ² thick cables and industrial bus bars. It is specially designed for large current scenes such as power system, new energy electronic control, rail transit, etc! No need to cut wires or additional transfer, directly measure 700A continuous current and 1000A surge peak, solve the pain point that traditional probes cannot measure heavy conductors, and significantly improve substation maintenance and motor drive test efficiency. |

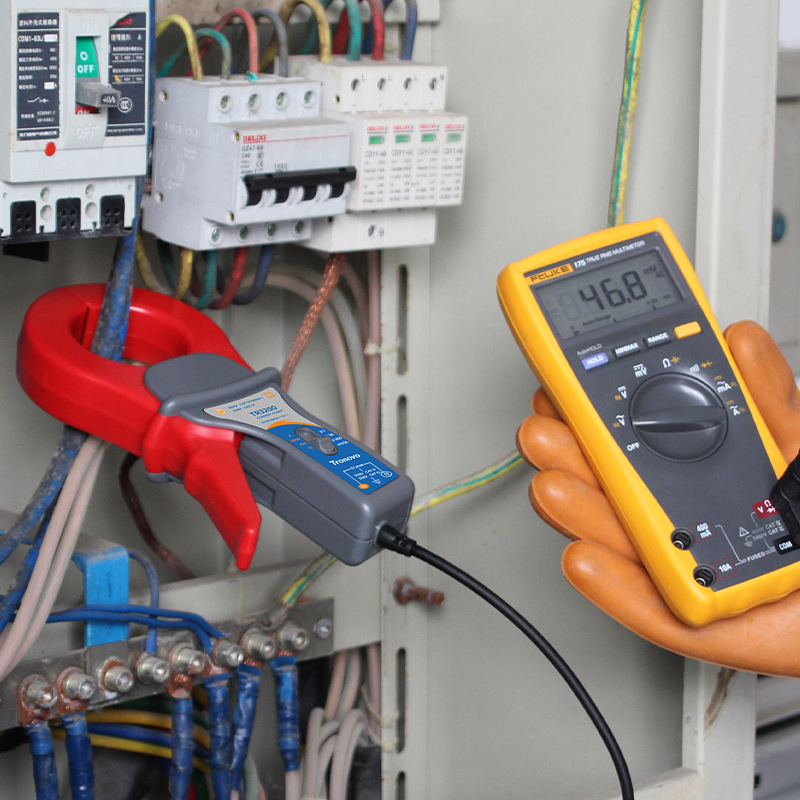

Numerical measurement functionGiving BNC to banana plug, directly connecting the output end of the current probe, matching the mV gear of the digital multimeter can accurately measure AC current signal, and realize current waveform capture without oscilloscope, which is suitable for on-site maintenance and education experiments. The low-cost solution solves the measurement scenarios that traditional oscilloscopes cannot reach. |
 |
 |
Noise testMeasured 100mV/A gear, the probe has low noise and is very low about 5mA. Whether it is a large current or a small current can be perfectly compatible with the test. |
| Model | TR3200A | ||
| Bandwidth | 100KHz | ||
| Rise time | ≤3.5μs | ||
| Input Type | AC | ||
| Accuracy | ±2% ±1% ±0.8% | ||
| Current conversion ratio | 1mV/A 10mV/A 100mV/A | ||
| AC Peak | 1000A | ||
| Maximum operating voltage | 600V CATⅢ | ||
| Jaw diameter | Ø52mm | ||
| Cable length | 150cm | ||
| Interface Type | BNC | ||
| Working environment | 0~40°C,80%orless | ||
| Storage requirements | -10~45°C°C,80%orless | ||
| Weight | 550g | ||
| Overall dimension | 216X111X45mm | ||
