The high-voltage passive probe is designed for accurate measurement of high-frequency and high-voltage signals, supporting ground-referenced transient voltage measurement up to 50KV, and a bandwidth of 100MHz can accurately capture high-voltage pulse signals. Its innovative multi-layer shielding structure with insulated protective enclosure meets IEC61010 safety standards to ensure the safety of operators and equipment. The probe has a built-in MΩ high-impedance input to minimize the load effect on the circuit under test and ensures signal integrity through dynamic compensation technology. It adapts to mainstream oscilloscopes through standard BNC interfaces, supports high-risk scenarios such as switching power supply testing, IGBT drive analysis, and power system surge monitoring, and provides safe and reliable high-voltage measurement solutions for power electronics research and development and new energy equipment maintenance.
Features:
• Maximum voltage：50KV DC+ACpeak
• Bandwidth up to50MHz
• Input impedance 900MΩ
• Fixed attenuation ratio1000:1
• It can be connected to a multimeter with an impedance matcher
• Ultra-low noise
 |
Flagship-grade high-frequency high-pressure probeAs a common connection solution in the oscilloscope industry, the standard BNC interface is seamlessly compatible with mainstream brand equipment such as Keysight, Tektronix, and Rigol. Its bayonet-type rotary lock design effectively prevents falling off and ensures the stability and reliability of high-frequency signal transmission. |
Ground loopsFor high-frequency voltage measurements above 40MHz, it is highly recommended to use the original alligator clip for direct grounding. By eliminating the parasitic inductance and capacitance of traditional long ground circuits, this connection method significantly improves the frequency response characteristics of the system and ensures a more stable impedance of the signal transmission path. The high-frequency response optimization improves the detail restoration of the signal waveform, and accurately captures transient harmonics and rising edge distortion. |
 |
 |
Abundant accessoriesThe high-voltage probe professional accessory set avoids parasitic inductance/capacitance interference caused by self-made accessories and improves the measurement accuracy for scenarios such as switching power supply debugging, inverter monitoring and power semiconductor testing. |
High frequency and high pressureWith a 50MHz high-frequency bandwidth and 50KV peak voltage measurement capability, the TR9350D high-voltage probe accurately captures the transient voltage details of inverter drives, switching power supplies, and power semiconductors with rise times as low as 5ns. Its CAT III 1000V safety certification design effectively suppresses arc risk, and the 1000:1 attenuation ratio ensures signal fidelity (error rate ＜3%) and safety in strong electrical environments. It provides nanosecond waveform accuracy and operational safety guarantee for new energy battery testing, industrial motor monitoring and high-voltage laboratories. |
 |
 |
Transient response testThe probe has a fast response time and can quickly capture high-voltage waveforms and transient peaks. This is very helpful for testing and measuring dynamically changing high-voltage signals. |

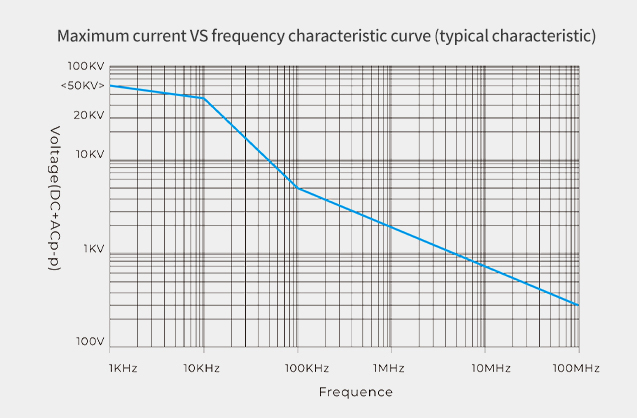

| Model | TR9350D |
| bandwidth | DC~50MHz |
| Rise time | 7nS |
| Attenuation scale | 1000:1 |
| Input impedance | 900MΩ |
| Maximum input:DC+AC peak | 50KV CATII ≤30s |
| Maximum input:AC RMS | 35KV CATII ≤30s |
| Maximum load current | 55uA |
| Noise-to-signal ratio | >60dB at 1KHz;>50dB at 1MHz |
| DC signal error value | ≦3% (0~35kV) Full Scale Input Range |
| Temperature coefficient | ≦200 PPM/℃ |
| Match capacitance adjustment range | 10PF~35PF |
| Safety inspection | Compliant with EN61010-031 CATI specification |
| Test line length | 1.8m士0.2m |
| Operating temperature and humidity | 0~40°C,80% or less |
| Store temperature and humidity | -10~45°C,80% or less |
| Size | 90mmx90mmX38lmm |
| Weight | 606g |
| Operating temperature and humidity | 0~40℃,80% or less |
