The TR9811P intelligent fast charging test series of programmable DC electronic loads produced by Angs&G Instruments have a wide range of power, a resolution of up to 0.1mV/0.1mA, a ripple sampling rate of up to 3MHz, and a variety of test modes such as dynamic test, overload test, automatic test, list test, battery test, CR-LED test, etc. It is mainly used for electronic device performance testing, battery (pack) testing, power supply testing, new energy testing, aerospace testing, high-power testing, laboratory, R&D, production line, etc.

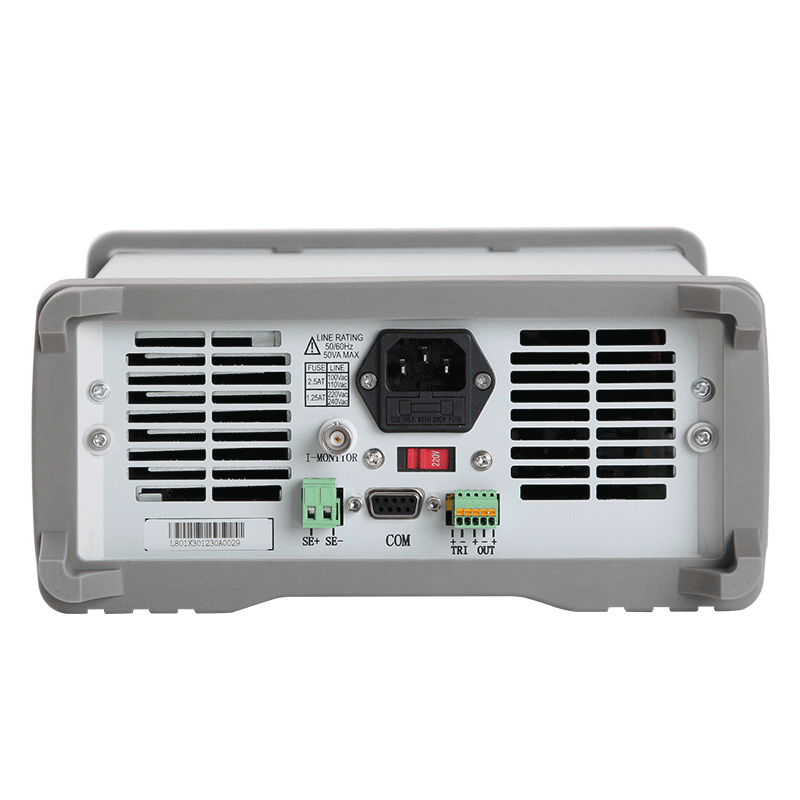

Features:
• Current remote monitoring function, external trigger function
• 0.1mV/0.1mA high resolution
• Screenshot and list saving, recall function
• RS232 interface as standard, support more expansion interfaces
• Remote voltage compensation input function
• Equipped with host computer software to achieve remote operation and monitoring
• Support automatic test of fast charging source
• Constant resistance + constant current, constant voltage + constant resistance, constant voltage + constant current three combination tests
• OCP/OPP/OVP test, load effect test
 |
Intelligent fast charge testerThe fast charging load meter is fully compatible with USB PD 2.0, USB PD 3.0, QC2.0, QC3.0, QC4.0 and other mainstream fast charging protocols. It can accurately simulate the load requirements of various fast charging devices and cover the charging scenarios of mobile phones, tablets, notebooks and other terminals. |
Add a variety of "fast charge protocol support"It is convenient for users to test fast charging products. |
 |
 |
Multi-function testThe intelligent fast charging load tester is equipped with 13 common test modes, including CC, CV, CR, CP, CR-LED, dynamic, time, battery OVP, OCP/OPP, list, combination, load effect, etc., covering various test requirements. Users can easily switch through direction keys or knobs in the mode selection interface, which is intuitive and convenient to operate and meets the requirements of fast charging performance testing in different scenarios, helps to efficiently complete parameter verification and function verification. |
Quick charge protocol easy to test, display more intuitiveThe intelligent fast charging test function can accurately detect core parameters such as voltage, current and power in the fast charging process, and adapt to a variety of mainstream fast charging protocols. The operation interface is intuitive and easy to understand, the parameter setting is quickly completed through keys or touch control, the test results are clearly presented in the form of numbers, curves and the like in real time, and the data is accurate and easy to read. |
 |
 |

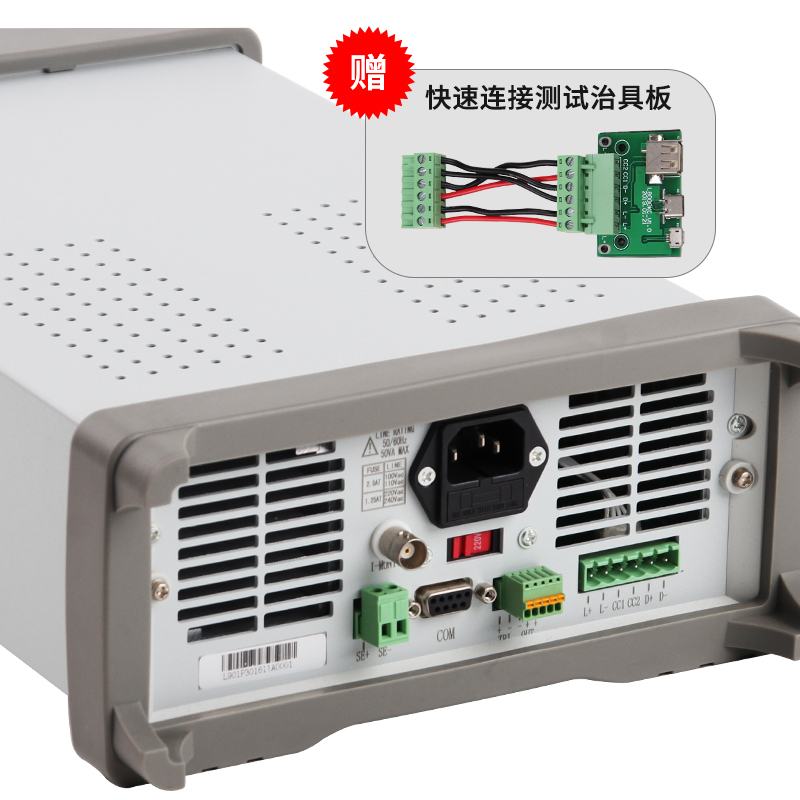

Test connection fixture free of chargeThe USB Type-A, USB Type-C and Micro USB interface can be adapted to the fast charging test requirements of various devices such as mobile phones, tablets, charging kits, notebooks, etc. The fast connection of different interface devices can be realized without purchasing additional accessories, thus eliminating the trouble of interface adaptation. |
| Model | TR9811P |
| Rating | Voltage:0~150V Current:0~3A/0~9A/0~30A Power:150W Minimum Operating Voltage:1.4Vat30A |
| CV mode | Range:0~18V/0~150V Resolution:1mV/10mV Precision:±(0.05%+0.025% FS) |
| CC mode | Range:0~3A / 0~30A Resolution:0.1mA,1mA Precision:±（0.05%+0.05%FS） |
| CR mode | Range:0.05~7.5KΩ Resolution:16bit Precision:±（0.1%+0.8%FS） |
| CP mode | Range:150W Resolution:10mW Precision:±（0.1%+0.1%FS） |
| Dynamic mode | t1&t2：100μS~99.99S/Res:10μS Precision:5μs±100ppm Slope:0.001~3A/μs |
| Voltage readback | Range:0～18V/0～150V Resolution:0.1mV/1mV Precision:±(0.025%+0.025%FS) |
| Current readback | Range:0～3A/0～30A Resolution:0.1mA/1mA Precision:±(0.025%+0.05%FS) |
| Power readback | Range:0～150W Resolution:10mW Precision:±(0.1%+0.1%FS) |
| Ripple measurement | Range:0~0.3V/0~9V Bandwidth:10Hz~1MHz Precision:0.1%+2mV/0.1%+1mV |
| Exterior dimensions | 215 mm×88.5 mm×365mm |
| Weight | 4.5kg |
