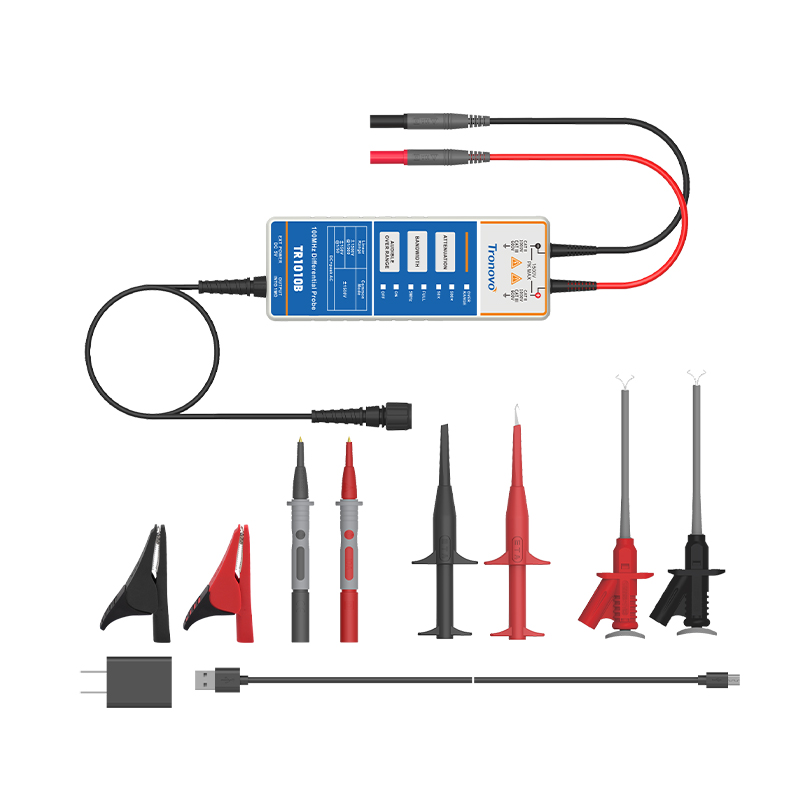

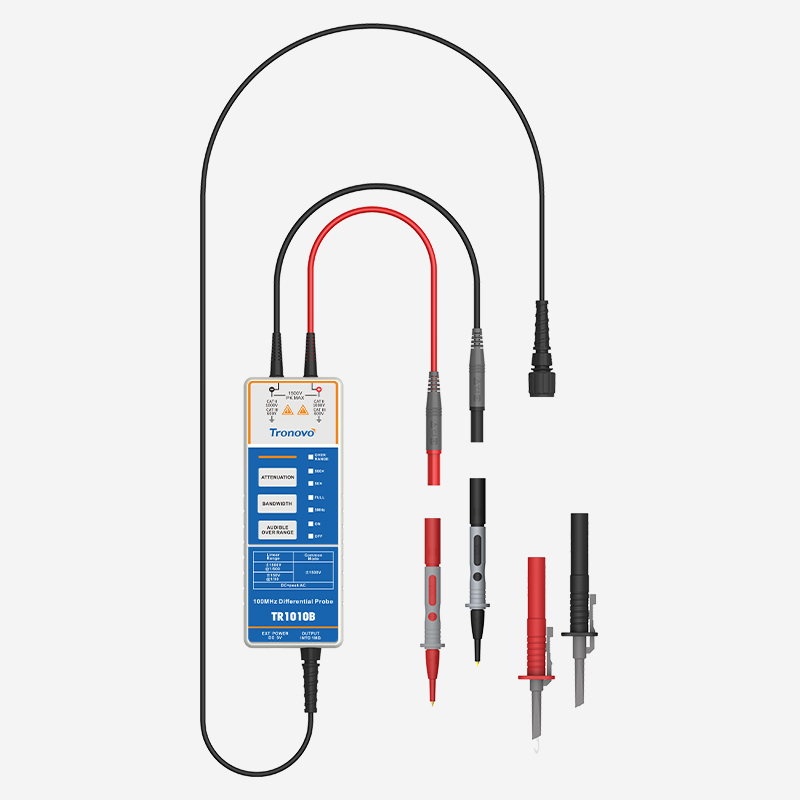

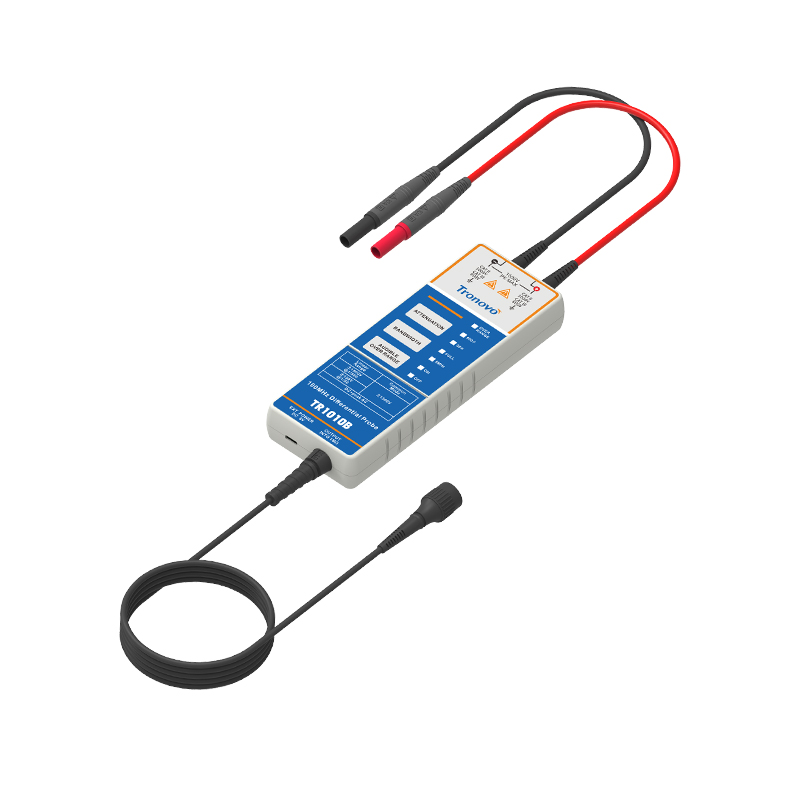

TR1010B high-voltage differential probes

TR1010B high-voltage differential probes are available for all major oscilloscopes in the market, converting a floating signal to a low-voltage signal at the ground level, making it safe and easy to display any ground level oscilloscope. The probe can be used at frequencies up to 10MHz for 1500V voltage signals and has high common-mode rejection, making it an excellent choice for non-georeferenced, floating, or isolated measurements. Angstrom oscilloscope differential probes are ideal for power testing, switching power supplies, inverters, motor drive control, switching power supply development, maintenance and evaluation.

Features:
• Safe floating measurements
• No damage to the oscilloscope and device under test
• Strong anti-interference ability
• Audible and visual alarm function
• 5MHz bandwidth limit function selection
• Good common-mode noise rejection

Safe Floating Measurements

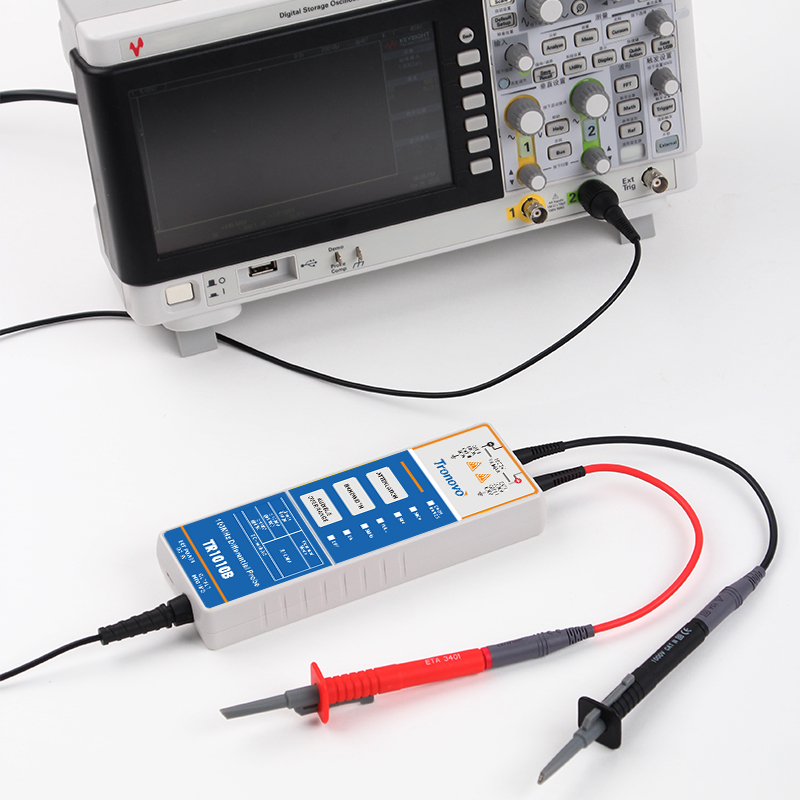

Differential probes can be used to directly measure multi-channel non-common ground circuits without fear of damaging the device or measurement system under test, and the oscilloscope is isolated from the signal under test with high impedance and no risk of electric shock.

The probe is safe to use

A common but risky practice is to disconnect the oscilloscope's power grounding wire, as floating measurements can generate dangerous voltages on the oscilloscope, and the user touching the instrument will be the shortest path to ground and be electrocuted.

CMRR performance upgrades

Common-mode rejection ratio (CMRR) refers to the ability of a differential probe to suppress any signal shared by two test points in a differential measurement. If the CMRR index of the differential probe is not good, the common-mode voltage will be added to the differential voltage, causing measurement errors.

The oscilloscope interface is compatible for use

The oscilloscope does not automatically recognize the attenuation ratio of other brands of probes, and the probe attenuation ratio needs to be manually set on the oscilloscope to prevent deviations in the measured values

Rise time test

The DS6104 outputs a fast-edge signal with a frequency of 1MHz, amplitude of 2Vpp, and a rise time of 600ps to the input of the differential probe via a cable.

Output noise test

Short the input of the probe and connect the output to the oscilloscope. Set the attenuation step of oscilloscope channel 1 to 5 mV/div, the scan time to 50 nS/div, and the input impedance to 1 MΩ.

Model	TR1010B
Bandwidth (-3dB)	100MHz
Rise time	≤3.5ns
Precision	±2%
Range selection (attenuation ratio)	50X/500X
Maximum differential measurement voltage	50X：±150V DC+ Peak AC 500X：±1500V DC+ Peak AC
Common-mode voltage	±1500V DC + Peak AC
Maximum input voltage to ground	600VCATⅢ 1000VCATⅡ Vrms
Input impedance	Single-ended to ground: 5MΩ±1% Between the two inputs:10MΩ±1%
Input capacitance	Single-ended to ground: ＜4pF Between two inputs:＜2pF
CMRR	DC: ＞80dB 100KHz: ＞60dB 1MHz: ＞50dB 3.2MHz: ＞30dB 50MHz: ＞26dB
Noise level	50X: ＜50mVrms 500X: ＜300mVrms
Overload indication voltage threshold	50X: ≥150V 500X: ≥1500V
Bandwidth limit (5MHz) long	≥-3dB@5MHz
Overload indicator	have (red light)
过载报警声	have (optionally closed)
Auto-save function	have
Offset adjustable function	have(Adjust in test mode)
Terminal load requirements	≥100kΩ
power supply	USB 5V/1A adapter
Safety meets standards	EN61010-1:2010
EMC is compliant	EN61326-1:2013 EN61000-3-3:2013
