TR1933

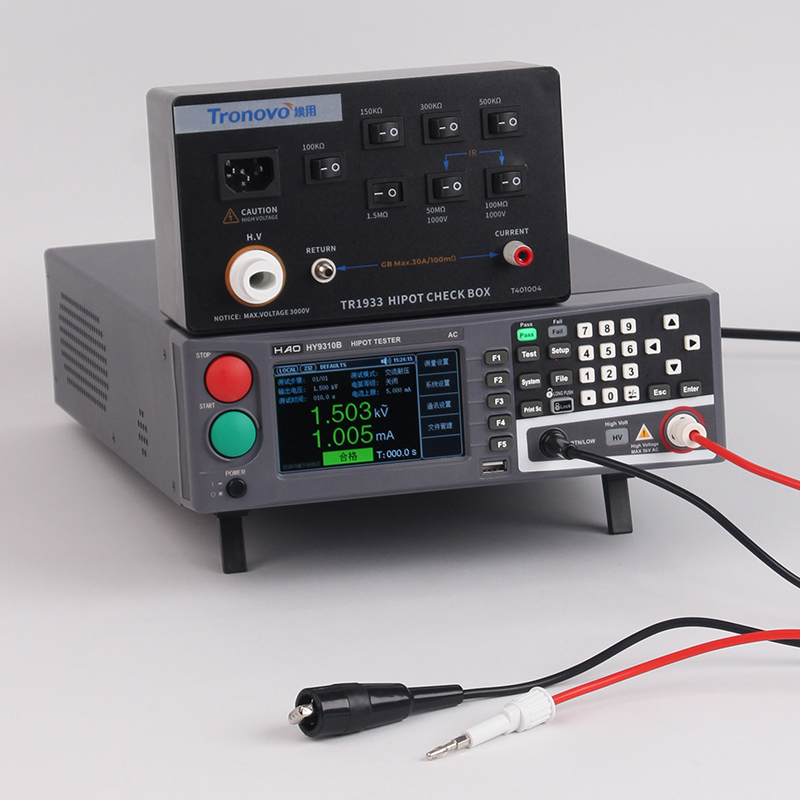

Safety Tester Inspection Box

The multi-functional safety tester inspection box (four-in-one) is used in the daily inspection and testing application of safety instruments, and regularly inspects the equipment, through this preventive measure, it helps enterprises reduce the probability of tester failure and makes later maintenance easier.

Safety test box

As the key equipment for electrical safety testing, it is an important line of defense to ensure the safe listing of various electrical products. It can check the withstand voltage, insulation resistance, grounding resistance and leakage current and other functional tests of the instrument, effectively preventing potential electric shock risk.

Performance Test

The safety test box integrates four core product spot inspection test functions, accurately covers withstand voltage test, insulation resistance detection, grounding resistance and leakage current monitoring, and builds a strong electrical safety defense line in all directions.

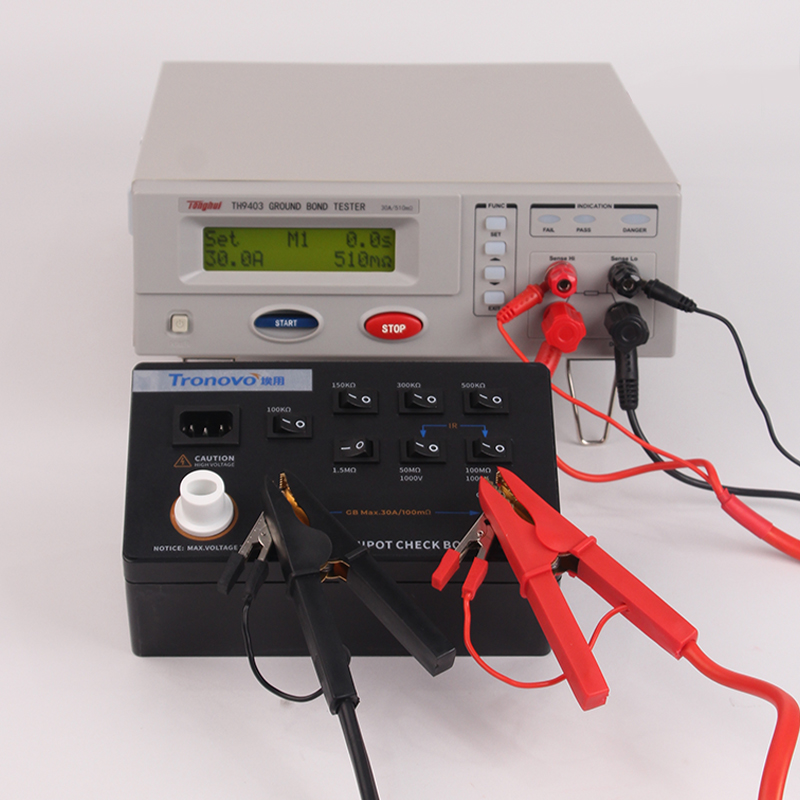

Test example

After the preset routine inspection program of the SE7440 instrument, the multi-function routine inspection task can be completed with one key, thus greatly improving the inspection efficiency. This operation does not require complicated manual settings, and the program automatically performs multiple tests such as withstand voltage, insulation, grounding, etc. according to the preset process, accurately controlling parameter accuracy and test consistency, and reducing human operation errors.

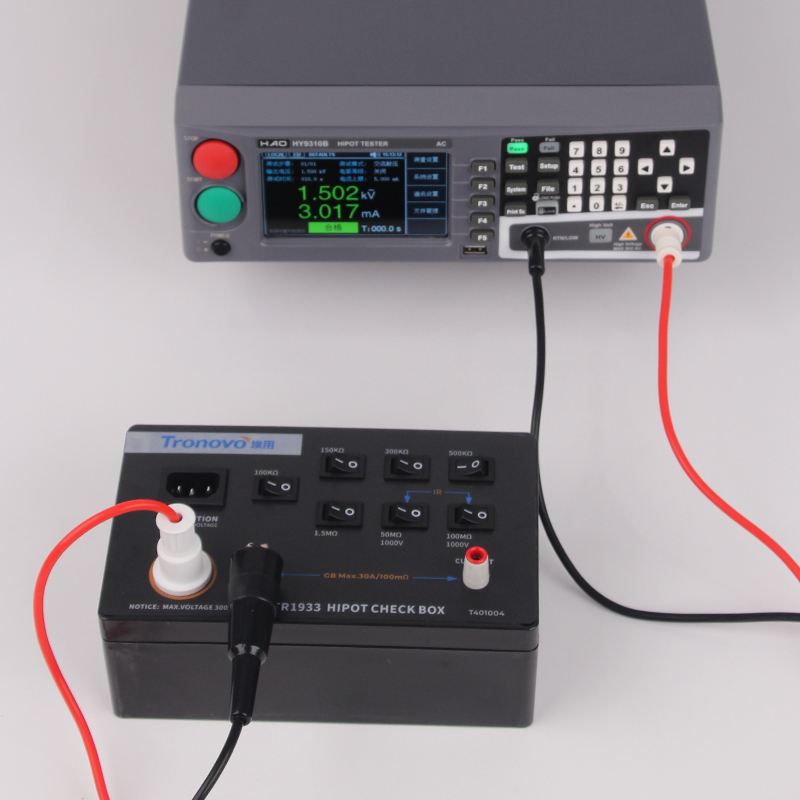

Test Description

Connecting the corresponding test points according to the test parameters is a key link to ensure the accuracy of the test. The adaptive range shall be selected according to the voltage, current and other parameter ranges of the measured object to avoid data distortion caused by range deviation. At the same time, the wiring shall be completed according to the specification to ensure stable circuit connection, correct polarity and reduce contact resistance interference. Fuck.

Model	TR1933
AC and DC withstand voltage test	Resistance:10KΩ / 150KΩ / 300KΩ / 500KΩ / 1.5MΩ Error:±5%
DC hipot test	Resistance:300KΩ / 500KΩ / 1.5MΩ Error:±5%
Insulation resistance test	Resistance:1000V / 50MΩ 、 1000V / 100MΩ Error:±5%
Ground resistance test	Resistance:Max.30A / 100mΩ Error:±5% Note: Continuous measurement cannot exceed 5 seconds
Size	157×90×48（mm）
