The TR23060D DC regulated and stabilized current supply is a high-performance DC power supply, which adopts the adjustment mode of imported Infineon LGBT module inside, and the output rectifier diode adopts United States fairchild, which greatly reduces heat generation, reduces machine wear and tear, improves power efficiency, and prolongs the service life of the machine. This product has simple operation, small size, high efficiency, high precision, high stability and other performance, equipped with advanced LED/LCD liquid crystal display, with perfect over-voltage, over-current, over-temperature, short-circuit protection, so that users can use the product more assured, more stable, more reliable, is the most popular choice for research units, laboratory testing, production line product test power supply.
Features:
• Specifications: output voltage 0-rated voltage, output current 0-rated current
• Voltage and current preset: The panel comes with preset buttons, which can preset the voltage and current value
• Voltage and current stabilization: the voltage and current value can be continuously adjusted from zero to the rated value, and the voltage and current are automatically converted
• Overvoltage protection: the protection value is 10% of the rated value, the machine is self-locked after protection, and the machine is automatically unlocked when restarted
• Overcurrent protection: rated current output overload protection, short-circuit protection (output is turned off after short-circuit, optional)
• Short-circuit protection: allows long-term short-circuit or short-circuit start-up in any state
• Short circuit alarm: when the output is short-circuited, the power supply audible and visual alarm (optional)
• Output display: Voltage and current meters are LED display (standard) LCD display (optional)
• Pulse operation: can be equipped with time controller to form DC pulse power supply (optional)
• Intelligent: It can be connected with a computer to form an intelligent power supply for computer monitoring (optional)
• Analog model number: users can use 0~5V or 4~20mA signal to control the voltage and current of the power output (optional)
• Special customization: provide special specifications of power supply size design, special power supply customization (advance declaration)
 |
DC stabilized voltage and current stabilized power supplySet multiple advantages in one: operation is very simple, no complicated settings can be quickly started, compact size to save space, suitable for laboratory and industrial site and other scenes, high-efficiency conversion design to reduce energy consumption, at the same time with high-precision calibration and high stability circuit, to ensure that the output voltage and current accurate without drift. |

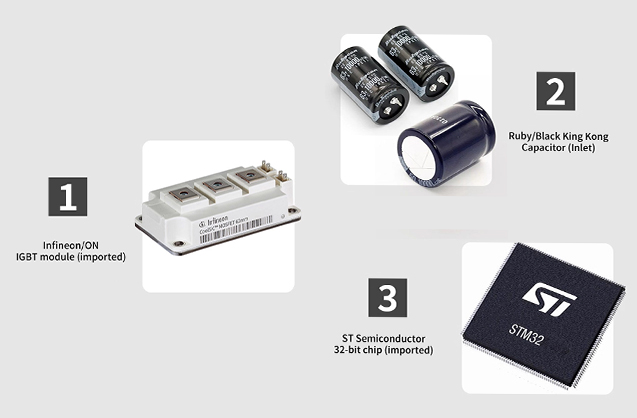

Imported core componentsThe core components of this equipment are all imported: it is equipped with Infineon/Ansen original IGBT module to ensure efficient and stable power conversion; Ruby/Black King Kong imported capacitor is selected to enhance filtering performance and service life; ST STMicroelectronics 32-bit chip is equipped to improve control accuracy and response speed. |
 |
 |
6 core configurationThe DC stabilized voltage and stabilized current power supply is equipped with 6 core configurations: remote voltage compensation eliminates the influence of wire voltage drop to ensure accurate load terminal voltage; Over-temperature, over-current and over-voltage triple protection mechanism, real-time monitoring of abnormalities and rapid response to protect equipment safety; High power density design realizes strong output in a compact volume; The slow voltage rise function avoids instantaneous impact and adapts to sensitive components. |
Industry ApplicationsDC stabilized voltage and current stabilized power supply is widely suitable for multi-field requirements: providing stable power supply in automotive electronic testing to ensure performance verification of on-board components; Meet the stringent voltage and current requirements of semiconductor device precision testing; Support long-term stable output of electronic component aging test; Adapt to parameter debugging of photovoltaic system components; At the same time, it provides high-precision power supply support for laboratory scientific research experiments. |
 |
| Circuit mode | High-frequency switching | |
| AC input | Number of phases voltage frequency | Single; triphasic Single-phase 220V±10; Three-phase 380V±10 50Hz±10Hz |
| DC output | Voltage Current | 0-Rating adjustable; 0-Rating adjustable; It has the function of current limiting control; |
| Regulator | Source effects Loading effect Time drift Drift | ≤1 Rating (Output voltage change rate due to input voltage change of ± 10) ≤1 Rating (rate of change of output voltage due to load change from 10 to 90 °C) ≤1 Rating (Output voltage change rate due to continuous operation time greater than 8 hours) ≤1 Rating/°C (Output voltage change rate due to temperature over the power supply operating temperature range) |
| Steady flow | Source effects Loading effect Time drift Drift | ≤1 Rating (+10 depending on the input voltage.) -90 range, inducing the rate of change of output voltage ≤1 Rating (rate of change of output voltage due to load change from 10 to 90 range) ≤1 Rating (Output voltage change rate due to continuous operation time greater than 8 hours) ≤1 Rating/°C (Output voltage change rate due to temperature over the power supply operating temperature range) |
| Ripple(rms)/p-p | RMS≤0.1 rating, peak ≤0.5 rating | |
| Power control mode | The panel rotates the encoder switch to adjust the resolution by one byte | |
| Indicates accuracy | voltmeter ammeter | Four-digit half-digit LED with a resolution of ≥ 0.01V Four-digit half-digit LED with ≥ resolution of 0.01A |
| Protector | Overvoltage, overcurrent, short circuit, overtemperature, phase loss | |
| Cooling method | Air-cooled | |
| Structural form | The cabinet is fixed to the ground by its own weight | |
| color | Pearly white |
