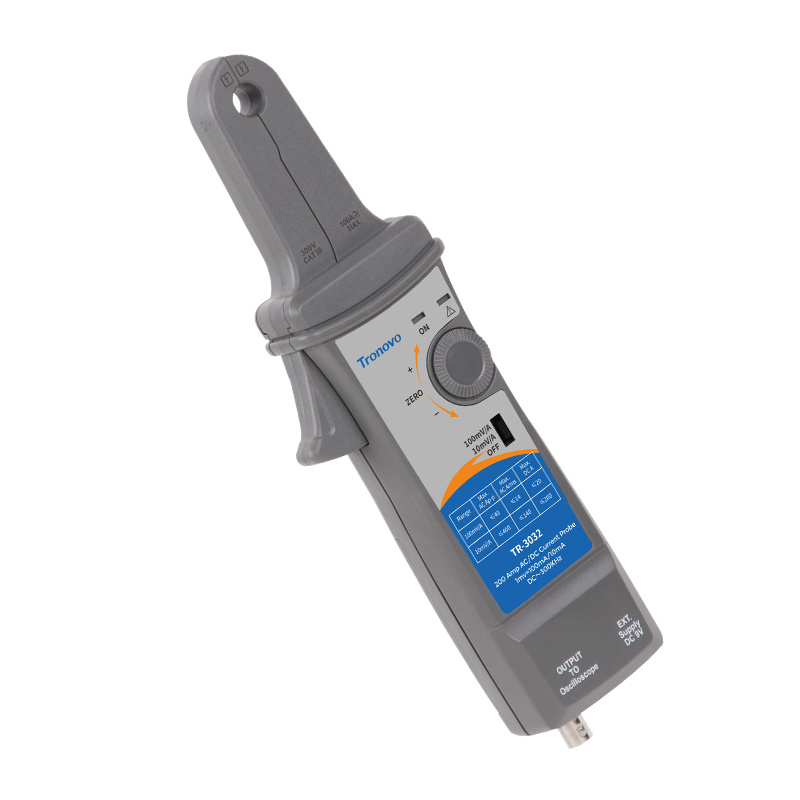

TR3032 Current probe

The TR3032 is a general purpose oscilloscope current probe that is compatible with more than 95% of oscilloscopes on the market, with a frequency response measurement range of 50mA to 200A (peak) up to 300KHz and a BNC output terminal. Connect to an oscilloscope for accurate measurement of AC or DC current waveforms, and a three-position slide switch on the handle panel selects range and ON/OFF.

Features:
• AC and DC dual-use
• Current measurement range: 50mA to 200A
• Measure thin cables (Ø11mm)
• Narrow jaw design, easy to use in tight spaces with dense wiring
• 9V alkaline battery, 13 hours continuous operation
• Accurately measure, analyze, and display distorted current waveforms and harmonics

uitable for all oscilloscopes

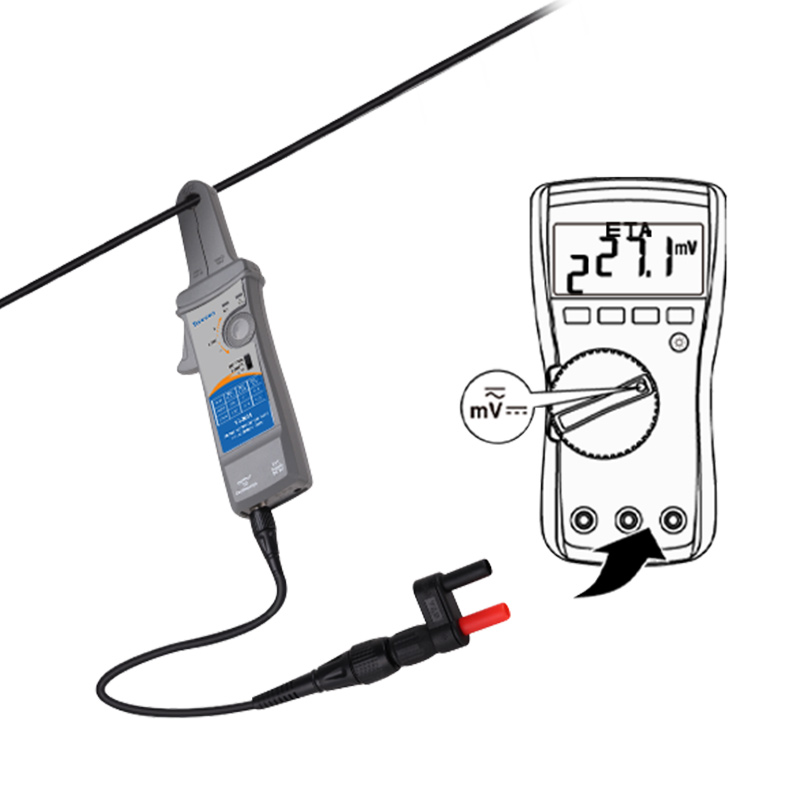

This current probe fits into any oscilloscope, can measure directly, the current probe is designed with an open structure, the current probe is easy to connect and disconnect from the conductor, and can accurately measure DC and AC signals by clamping the wire. We offer a wide range of models to choose from, with a maximum bandwidth of 100MHz and the ability to measure currents from 10mA to 2000A.

Bandwidth and rise time

Frequency and rise time are two important criteria for evaluating a current probe, and the probe bandwidth is at least 3 to 5 times that of the signal being measured.

Dual-range accuracy

We need to select the appropriate measurement gear according to the current to be measured, and the three-position slide switch on the handle panel selects the range and power switch.
10mV/A
Applicable current50mA - 100A/200A Peak
100mV/A
Applicable current50mA - 10A/20A Peak

Clamp-shaped opening, narrow design

Press the handle to open the jaws, put the wire of the measured current into the jaws, release the handle, and close the jaws.
Measuring the maximum size of the conductor:Ø11 mm
Pliers Length:80mm

Zero adjustment and degaussing

After connecting the power supply, fix the position of the current probe and rotate the zero knob to adjust the DC offset of the current probe output until the waveform trace line coincides with the zero point, canceling the effect of residual charge.

Model	TR3032
Bandwidth	300KHz
Rise time	≤1.2μs
Enter the type	AC/DC
Precision	±3% ±4%
Current conversion ratio	10mV/A 100mV/A
DC maximum	200A
AC peak-to-peak	400A
Communicate valid values	140A
Maximum operating voltage	300V CATⅢ 600V CATⅡ
Jaw diameter	Ø11mm
Cable length	100cm
Interface type	BNC
Power supply	9V/1A Adapter
Size	280mm×70mm×32 mm
weight	260g (without battery weight)
Working environment	0°C to +50°C
Storage requirements	0℃to+40℃
