TR3200 Series current probes

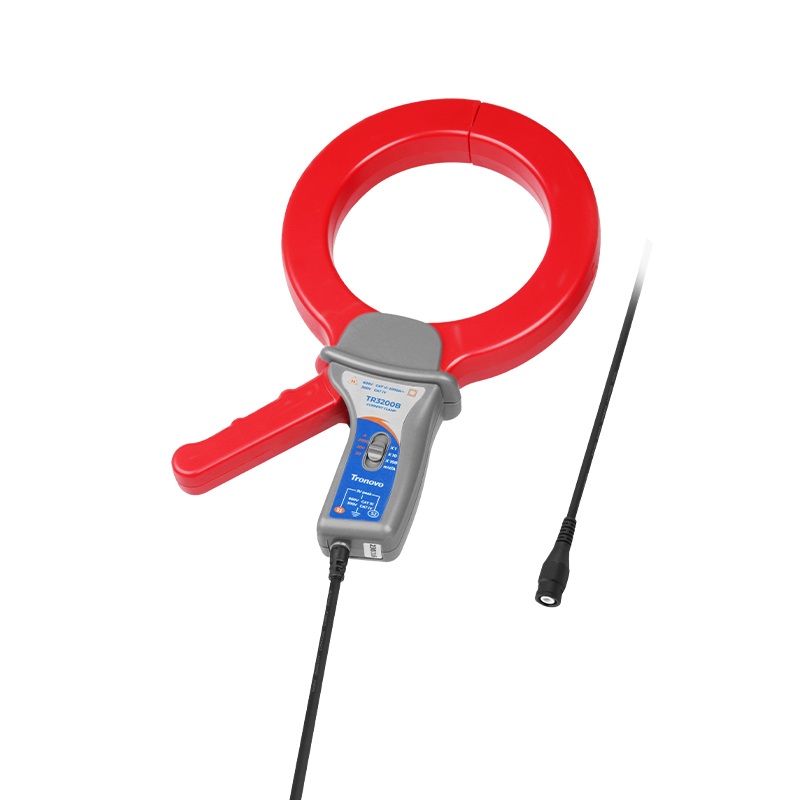

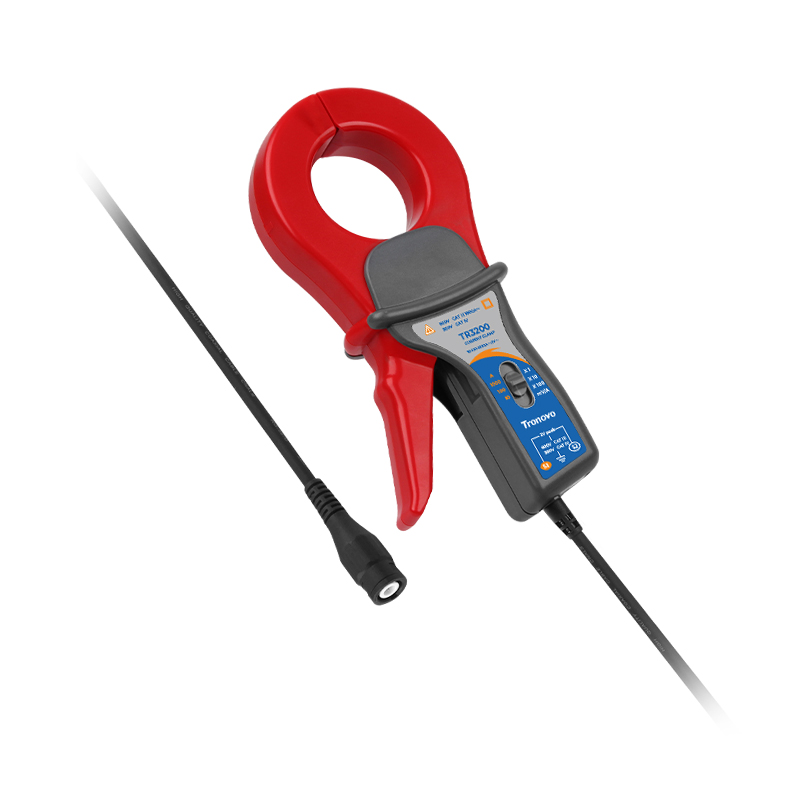

TR3200 series current probe is used for AC current measurement, the measured current reaches 2000A AC peak, the bandwidth is 100KHz, and the jaw diameter is about 100mm; Standard BNC output interface for any manufacturer oscilloscope; 3 ranges can be switched, which is convenient for small current measurement; Add standard accessory BNC to banana socket to realize the connection to the digital multimeter. It is widely used in motor drives, inverters, switching power supplies, avionics and other measurements.

Features:
• Measure the harmonic composition of electric currents
• Detect sinusoidal current waveforms
• Measure phase shifts in sine waves
• The current of the semiconductor switch
• Distributed current monitoring
• Power bus monitoring
• Monitor harmonics, power, and power quality
• Testing of large motors, pumps, and fans
• IGBT, MOSFET transistor current measurement

The current probe interface is compatible for use

The oscilloscope does not automatically recognize the attenuation ratio of other brands of probes, and the probe attenuation ratio needs to be manually set on the oscilloscope to prevent deviations in the measured values.

Clamp-shaped opening design

Fast and safe, there is no need to disconnect the circuit under test when using, press the handle to open the jaws, put the wire of the measured current into the jaws, and close the jaws after loosening the handle; Maximum size of measuring conductor: Ø52mm.

Three-gear range accuracy, adjustable gear

We need to select the appropriate measurement gear according to the current to be measured, and the range can be selected by pulling the gear switch in three positions on the panel.
100mV/A
0.1A ...10A AC (30A peak)
10mV/A
1A ...100A AC (300A peak)
1mV/A
1A...1000A AC (2000A peak)

Noise testing

The measured 100mV/A level is low, and the low noise of the probe is very low, about 5mA.

Start-up current test

When the motor is turned on, the current test is started instantaneously.

Model	TR3200	TR3200A	TR3200B
Bandwidth	100KHz
Rise time	≤3.5μs
Enter the type	AC
Precision	±3% ±2% ±1%	±2% ±1% ±0.8%	±3% ±2% ±1%
Current conversion ratio	1mV/A 10mV/A 100mV/A
AC peak-to-peak	1000A	1000A	2000A
Maximum operating voltage	600V CATⅢ
Jaw diameter	Ø52mm	Ø52mm	Ø100mm
Cable length	150cm
Interface type	BNC
Working environment	0~40°C,80%orless
Storage requirements	-10~45°C°C,80%orless
Weight	550g	550g	1200g
Dimensions	216X111X45mm	216X111X45mm	285X175X40mm
