Models include: TR9610 TR9611 TR9611A TR9621, Chinese display screen, more in line with our habits, large LCD display, all parameters can be placed on the same screen to see all parameters and results intuitively.
Features:
• Measuring range 200~400W, 0~500V, 0~40A
• CC/CV/CR/CP four basic modes
• 1mV/1mA high resolution
• Voltage and current measurement speeds up to 40kHz
• Independent short-circuit test function
• Over-voltage, low-voltage, over-current, over-power, over-temperature, anti-reverse connection, power start and other protections
• Support RS232 communication interface (TR9610 is optional)
• Equipped with host computer software to achieve remote operation and monitoring
• Power-off memory function
• Intelligent temperature control fan
• Support Chinese/English interface display
 |
Nine core advantagesThe electronic load has: supporting Chinese and English switching display, equipped with LCD large screen color screen, presenting clear data; With 1mV/1mA high resolution, accurate testing; Built-in 7 test modes to meet various requirements; With a variety of protection functions to ensure equipment safety; Support multi-mode discharge of battery test and adapt to different scenes; Equipped with RS232 communication interface to facilitate data transmission; Including independent short circuit test function, convenient operation; remote operation monitoring can be realized through the upper computer software to improve the efficiency of use. |
7 test modesElectronic load has built-in 7 commonly used test modes, covering CC, CV, CR, CP, dynamic, list and battery modes. Users can easily switch modes through common direction keys or knobs in the mode selection interface. The operation is convenient and intuitive. The test requirements of different equipment such as batteries meet the accurate test requirements in diversified scenarios and provide efficient and reliable mode support for performance testing of various electronic components. |
 |
 |
List TestThe list mode of electronic load supports automatic testing, and different modes can be switched in turn according to set parameters. Through multi-parameter mixed testing, the characteristic verification in application occasions can be completed more comprehensively and deeply. For production line applications, equipment with automatic testing function is preferred, which can significantly improve testing efficiency and consistency, reduce manual operation intervention, adapt to batch testing requirements, and provide strong support for accurate and efficient performance verification. |
Dynamic testingThe dynamic test mode of electronic load can accurately test the dynamic output performance of the power supply. Key indexes such as overshoot amplitude and recovery time, which are of particular concern to power engineers, can be detected by this mode. Therefore, dynamic test mode is a necessary function of electronic load. It supports continuous mode, pulse mode or trigger mode control, can flexibly test different parameters of power supply, and provides comprehensive data support for power supply performance evaluation. |
 |
 |

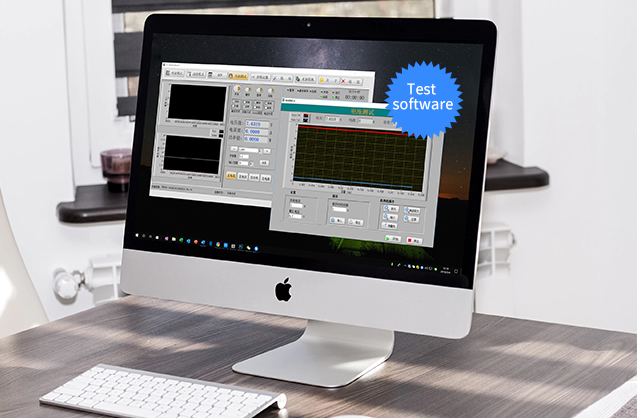

upper computer softwareThe electronic load is equipped with remote computer software on the upper computer, which can realize remote monitoring and operation on the computer side. The friendly graphical interface design makes the operation easy to use and can be quickly mastered without complicated learning. The software can obtain test data and adjust parameters in real time, thus greatly improving the convenience and efficiency of operation. It is especially suitable for scenes requiring remote control or batch testing, and brings flexible and efficient use experience to users. |
| Model | TR9611 | TR9621 | TR9610 | TR9611A |
| Number of channels | 1 | 2 | 1 | 1 |
| Rating | Voltage:0~150V Current:0~4A,0~40A Power:400W | 0~2A,0~20A 2×200W | 0~2A,0~20A 200W | 0~500V 0~1.5A,0~15A 400W |
| CV mode | Range:0~18V,0~150V Resolution:1mV,10mV Precision:±（0.05%+0.25%FS） | 0~50V,0~500V | ||
| CC mode | Range:０~4A,0~40A Resolution:1mA,10mA Precision:±（0.05%+0.05%FS） | 0~1.5A,0~15A | ||
| CR mode | Range:0.05~7.5KΩ Resolution:16bit Precision:±（0.1%+0.5%FS） | 0.05~25KΩ | ||
| CP mode | Range:400W Resolution:10mW Precision:±（0.1%+0.5%FS） | |||
| Dynamic mode | t1&t2：100μs-99.99S Precision:5μs±100ppm Slope:±（0.1%+0.5%FS） | |||
| Exterior dimensions | 300mm×88mm×174mm |
