Using zero flux technology (Hall element) current sensor, dual range design covers small to large current, accurate observation of current waveform. Whether the current fluctuation of the high-efficiency switching device, the current of the power-saving device as low as 1mA, or the high-speed transient current of the power-on, it can be handled. Excellent frequency response ability, can analyze and display the current waveform containing multiple frequency components, such as switching frequency, pulse waveform, etc., so as to meet the comprehensive measurement needs of complex current signals.
Product Features
• High-frequency high-precision fusion: 60MHz bandwidth, 5.84ns rise time
• Nanoscale Response: ± 1%±1mA Accuracy (5A Range)
• Anti-common-mode noise: Optimize the shielding structure to reduce high-voltage interference
• Rapid deployment: 1m extension cable, plug and play reduces setup time
 |
Advanced high-frequency current probeDirectly connected to domestic models such as Puyuan/Dingyang/Unilead, BNC direct connection eliminates the impedance matching problem. The plug-and-play architecture adapts to the mixed use of multiple devices in teaching laboratories, and the efficiency of student training is significantly improved. |
Intelligent jawsThe ∅5mm jaws are designed for precision current measurement in tight spaces. Its core highlight is the intelligent status indication function: when the jaws are not fully pushed to the bottom and locked, the probe will automatically light up a striking red light to ensure that the operation is correct before each measurement, effectively eliminate the measurement error or safety hazards caused by the jaws not closed, allow engineers to quickly confirm the status of the equipment, and improve measurement efficiency and reliability. |
 |
 |
Auto-zeroingPress the ZERO button to automatically degauss the zero adjustment function! This current probe has a built-in intelligent auto-zero system, which can be accurately zeroed in an instant with just one touch, completely saying goodbye to the cumbersome manual calibration process. Whether it's precision electronics R&D or complex industrial inspection, it can significantly save your valuable time and improve work efficiency. |
Dual-range designThe 60MHz bandwidth is optimized for medium and high frequency applications, the RANGE key can switch between 0.1V/A (30A) and 1V/A (5A) dual ranges with one click, and the 1mA resolution achieves microampere-level sensitivity, optimized for wireless charging and digital IC testing, and the 14ns delay ensures signal authenticity. |
 |
 |
Transient or pulsed waveforms that vary at high speedsMeasure the current of switching devices such as MOSFETs and IGBTs, check the switching losses and conduction losses, and evaluate the operating status and efficiency of the devices. |

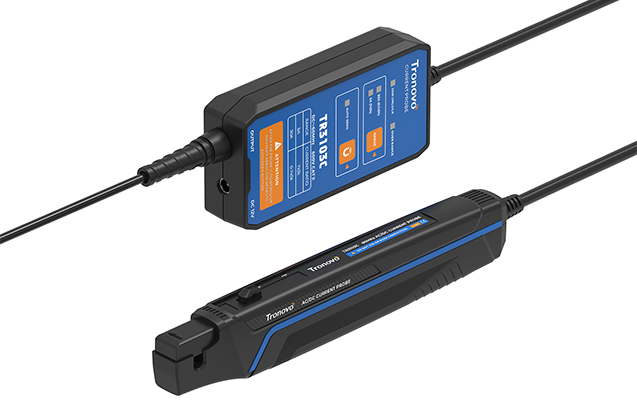

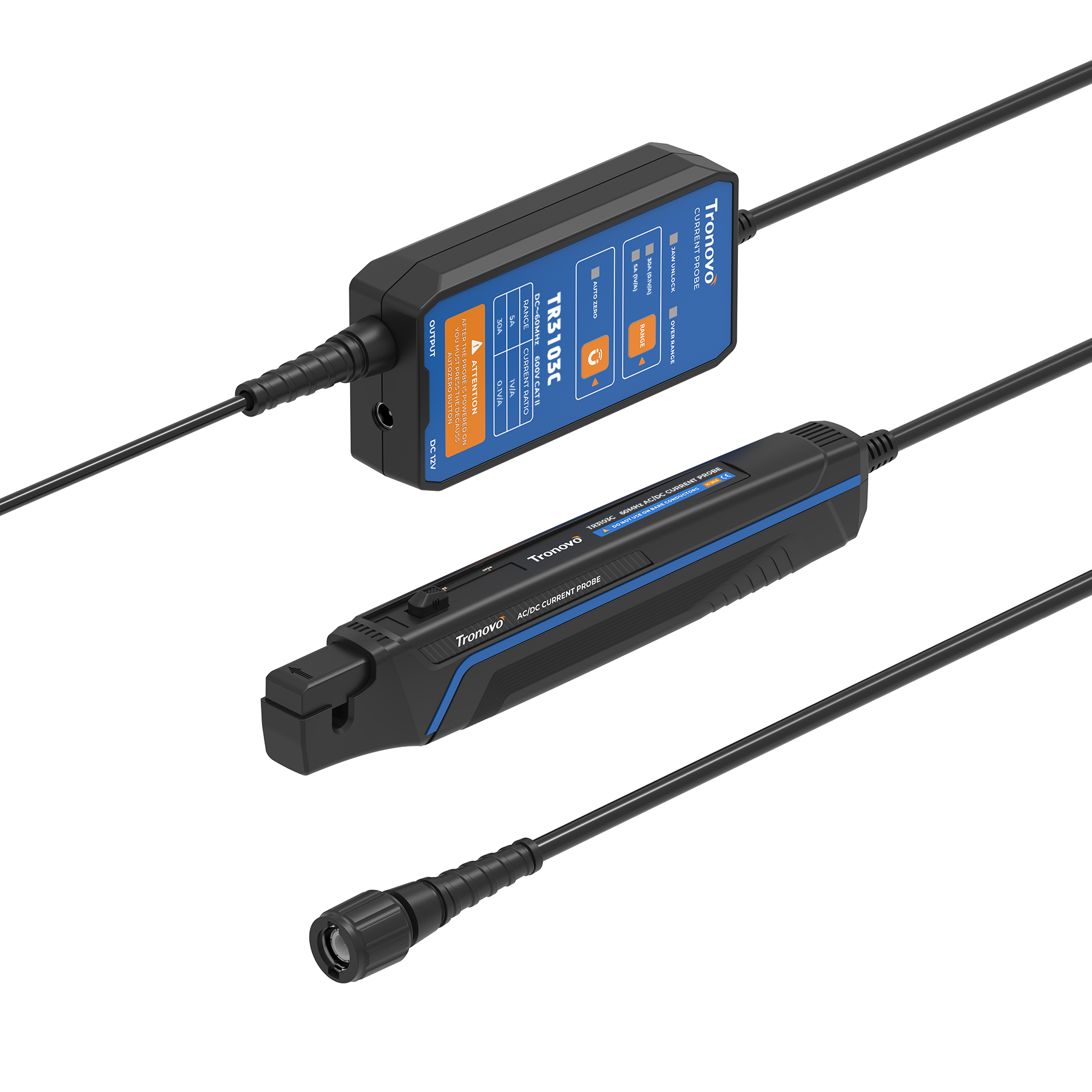

| Model | TR3103C |
| Bandwidth（-3dB） | DC~60MHz |
| Rise time | 5.84ns |
| Max measured current | 30A |
| Max measuring range | 50A |
| Range | 1V/A 5A 0.1V/A 30A |
| Resolution | 1V/A 1mA 0.1V/A 10mA |
| Accuracy | 1V/A ±1%±1mA 0.1V/A ±1%±10mA |
| Delay | Probe host:14ns;BNC:5ns(1m long) |
| Jaw diameter | ∅5mm |
| Terminal load requirements | ≥100KΩ |
| Power supply mode | DC12V/2A (standard adapter) |
| Insulated line voltage | 600V CATII 300VCATIII |
