Using zero flux technology (Hall element) current sensor, dual range design covers small to large current, accurate observation of current waveform. Whether the current fluctuation of the high-efficiency switching device, the current of the power-saving device as low as 1mA, or the high-speed transient current of the power-on, it can be handled. Excellent frequency response ability, can analyze and display the current waveform containing multiple frequency components, such as switching frequency, pulse waveform, etc., so as to meet the comprehensive measurement needs of complex current signals.
Product Features
• Broadband high-current scheme: 50MHz bandwidth, 7ns rise time covering new energy vehicle electronic control system
•Nano resolution: 10mA resolution (50A range), accurate quantification of current ripple
• Compact space adaptation: 176mm × 39.5mm × 18mm ultra-small clamp body, flexible deployment in narrow environment
• Global Compliance Certification: EN61010-2-032 Safety WEEE Environmental Directive
 |
Basic high-frequency high-precision current probeThe anti-interference BNC interface is compatible with the mixed environment of domestic Dingyang SDS5000X and imported Tektronix MDO4000. Insert the oscilloscope channel to automatically match the range, change the test platform does not need to reconfigure. |
Intelligent jawEquipped with 5mm jaw, specially set intelligent locking warning. When the jaws are not fully pushed to the closed position, the probe will automatically trigger a red light prompt to intuitively remind the user to operate correctly. The design effectively prevents measurement deviations or safety hazards caused by operational omissions, and is especially suitable for non-contact current measurement in space-constrained power distribution cabinets, precision circuit boards and industrial equipment. 5mm small diameter easily cope with narrow wiring environment. |
 |
 |
Automatic/manual zero adjustmentThis current probe is equipped with convenient ZERO button, integrated intelligent automatic degaussing and zero adjustment function. Just press one key, the built-in system instantly completes the precise zero adjustment operation, completely eliminates the residual magnetic field and zero drift, and ensures that the starting point of each measurement is absolutely accurate. Eliminate the cumbersome manual calibration steps, greatly improve the detection efficiency, especially suitable for the need for fast, repeated measurement of the application scenarios. Its intelligent zeroing technology effectively resists environmental interference, ensures high-precision capture of weak current signals, provides engineers with stable and reliable test benchmarks, simplifies complex current measurement work, and is professional and efficient. |
双量程设计50MHz带宽结合75A峰值能力，RANGE键一键切换0.1V/A高量程（50A）与1V/A低量程（7.5A），10mA分辨率确保宽动态范围精度，适配变频器与大功率电源验证，±1%精度符合CAT III安全标准。 |
 |
 |
Small current measurementCurrent waveforms of various levels from a minute current to a large current can be observed. A change in power consumption of a small electronic device operating by a control current or low power in a control circuit can be observed. Meet the needs of electronic engineers for circuit optimization design. |

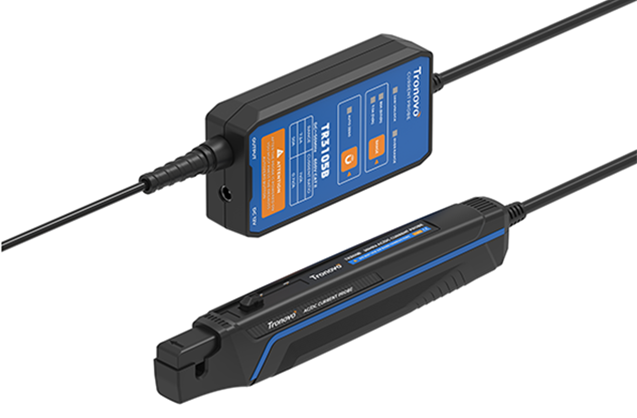

| Model | TR3105B |
| Bandwidth（-3dB） | DC~50MHz |
| Rise time | 7ns |
| Max measured current | 50A |
| Max measuring range | 75A |
| Range | 1V/A 7.5A 0.1V/A 50A |
| Resolution | 1V/A 1mA 0.1V/A 10mA |
| Accuracy | 1V/A ±1%±1mA 0.1V/A ±1%±10mA |
| Delay | Probe host:14ns;BNC:5ns(1m long) |
| Jaw diameter | ∅5mm |
| Terminal load requirements | ≥100KΩ |
| Power supply mode | DC12V/2A(standard adapter) |
| Insulated line voltage | 600V CATII 300VCATIII |
