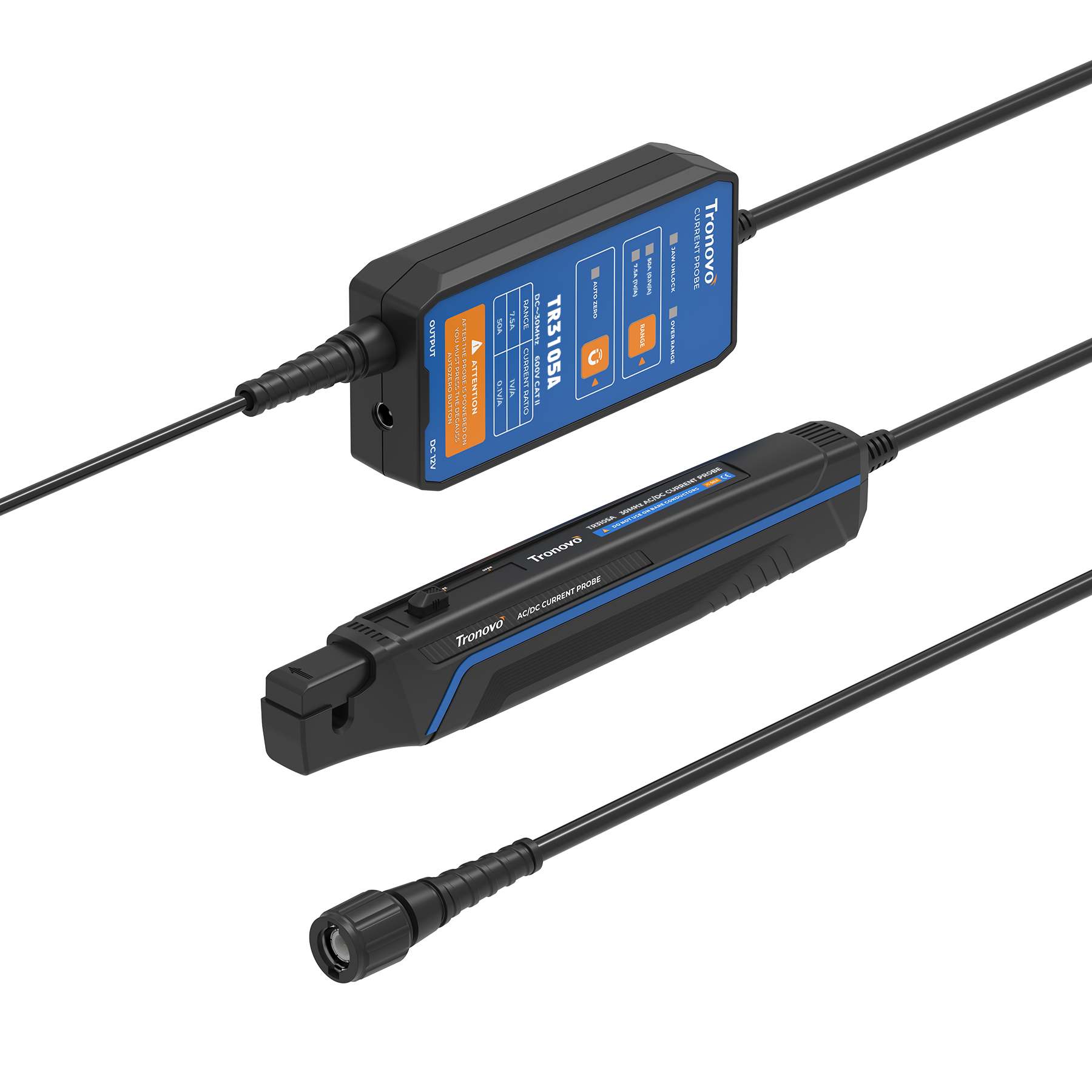

This zero-flux technology (Hall element) current sensor has a dual-range design covering small to large currents to accurately observe current waveforms. Whether the current fluctuation of the high-efficiency switching device, the current of the power-saving device as low as 1mA, or the high-speed transient current of the power-on, it can be handled. Excellent frequency response ability, can analyze and display the current waveform containing multiple frequency components, such as switching frequency, pulse waveform, etc., so as to meet the comprehensive measurement needs of complex current signals.
Product Features
• High bandwidth and high frequency response
• Supports DC to 30MHz bandwidth for accurate capture of nanosecond fast transient currents.
• High accuracy and low error
• The accuracy in the full range is 1%, and the resolution is as low as 1mA (small range gear)
• Dual-range flexible switching
• One-key switching takes into account large current pulse and small current steady-state measurement
• Compatible with BNC Interface Oscilloscope
 |
Basic high-precision current probe50A high-current scenario still maintains BNC full interface compatibility, Yokogawa DLM3000/McCorson TO series direct connection available. No-drive design to avoid the risk of system conflict, strong electromagnetic environment plug-and-measure. |

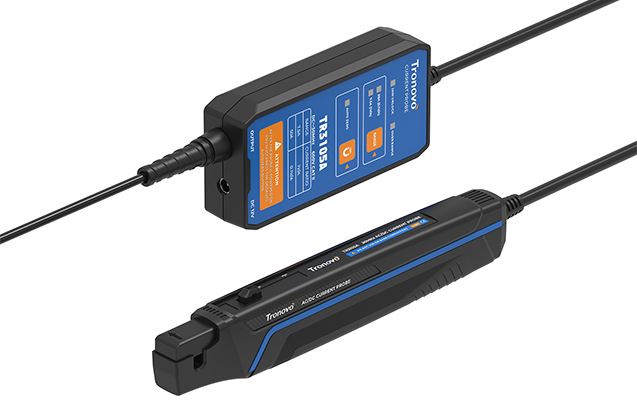

Intelligent jaw5mm slim jaw, easily into the small space, accurate measurement of the current signal in the compact circuit. Its intelligent design ensures safe and reliable operation: when the jaws are not fully pushed into the locked position, the probe will immediately light up the eye-catching red light prompt, effectively preventing measurement errors or safety hazards caused by negligent operation. |
 |
 |
Auto zeroPress the ZERO button to trigger the probe built-in automatic zero function, instantly complete the zero adjustment of degaussing, completely eliminate the residual current interference. This innovative technology simplifies the operation process, eliminates manual calibration steps, and ensures accurate measurement at the milliampere level. Engineers can still quickly obtain reliable data in complex electromagnetic environments, greatly improving test efficiency and equipment stability. |
Dual range designThe 30MHz bandwidth supports 50A high current test, the innovative dual-range RANGE key switches 0.1V/A(50A) and 1V/A(7.5A) with one key, and 1mA ultra-high resolution to capture weak signals. It is specially designed for new energy electric drive and industrial control. |
 |
 |

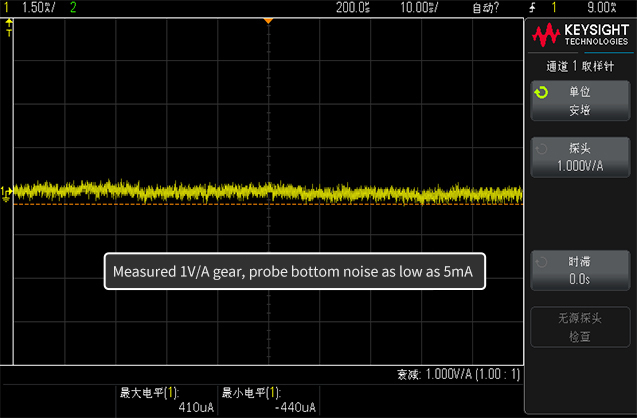

Low noiseUnder the range of 1V/A, the measured bottom noise is only 410Ua, which meets the engineer's small current application test of milliampere level. |
| Model | TR3105A |
| Bandwidth（-3dB） | DC~30MHz |
| Rise time | 11.7ns |
| Maximum measured current | 50A |
| Maximum measuring range | 75A |
| Range | 1V/A 7.5A 0.1V/A 50A |
| Resolution | 1V/A 1mA 0.1V/A 10mA |
| Precision | 1V/A ±1%±1mA 0.1V/A ±1%±10mA |
| Delay | Probe host:14ns;BNC: 5ns (1m cable length) |
| Jaw diameter | ∅5mm |
| Terminal load requirements | ≥100KΩ |
| Power supply mode | DC12V/2A (standard adapter) |
| Insulated line voltage | 600V CATII 300VCATIII |
