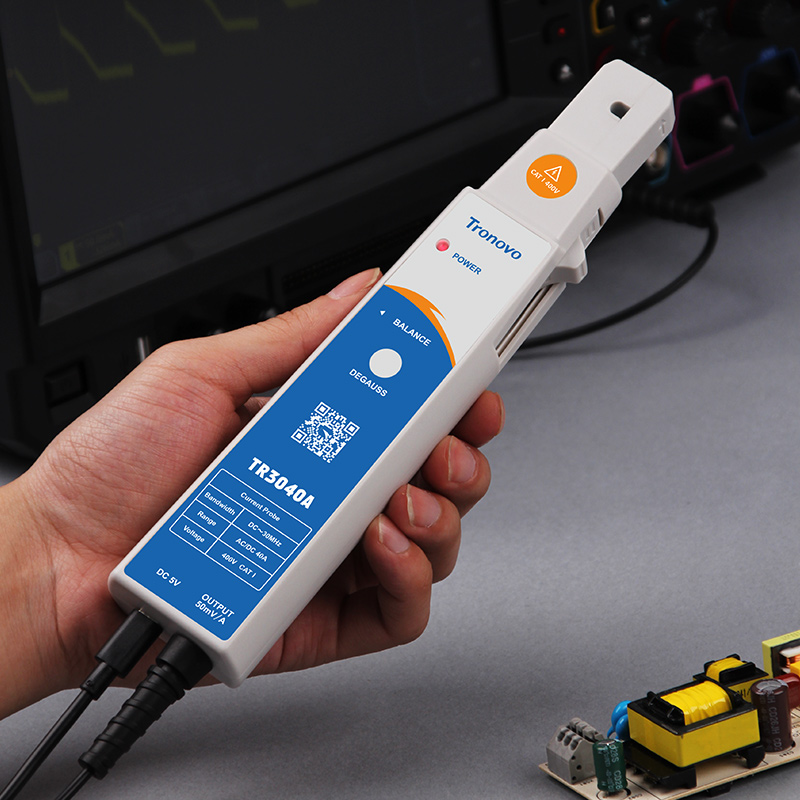

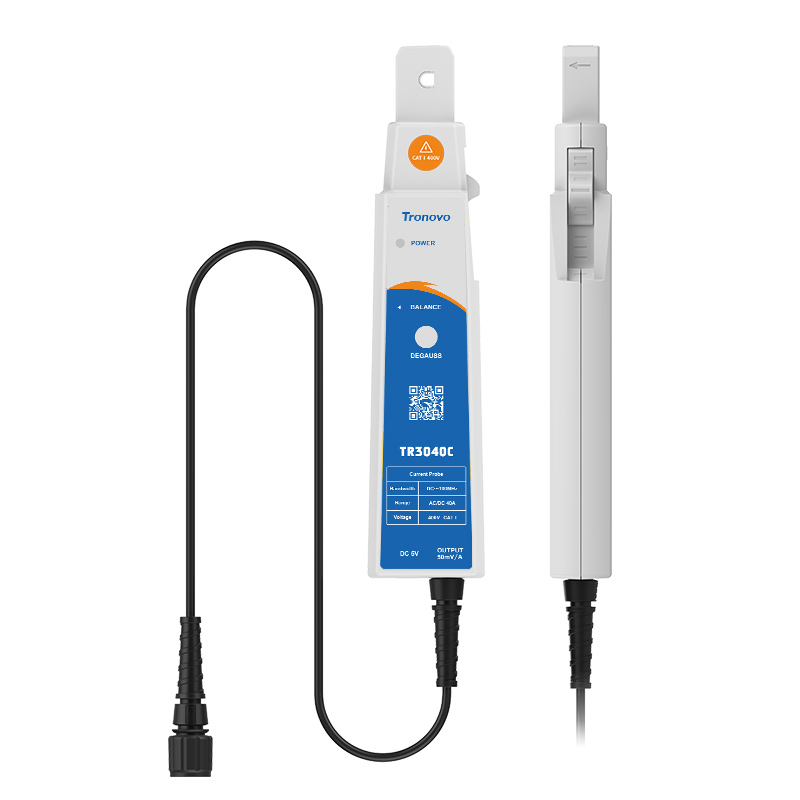

Tronovo angstrom current probes are designed with an open design that allows the current probe to be easily connected and disconnected from the conductor, allowing for accurate measurement of DC and AC signals by simply clamping the wire. We offer a wide range of models to choose from, with a maximum bandwidth of 100MHz and the ability to measure currents from 50mA to 40A.
Features:
• Bandwidth: DC~100MHz
• Measurable current range: 50mA to 40A
• AC/DC measurement of AC or DC waveforms
• Clamp opening eliminates the need to disconnect the circuit under test
• Current conversion ratio: 500mV/A
• Narrow jaw design, easy to use in dense and tight spaces
• Zero Adjustment: Aligns the baseline position of the probe
• Degaussing function: eliminates DC measurement interference
• External power supply, 5V power adapter
• Universal interface, compatible with BNC interface oscilloscopes
 |
高精度高频小电流探头TR3005C leads the class with 100MHz ultra-wide bandwidth (rise time ≤ 3.5ns), designed for high-speed digital circuit and RF applications, and seamlessly resolves nanosecond current changes. The AC/DC 5A measurement range (AC effective value 3.5A) is matched with 500mV/A conversion ratio and 1% accuracy (Figure 20) to provide reliable data in semiconductor and communication equipment testing. Fully compatible with mainstream oscilloscopes, plug and play through standard BNC interface |
Pincer openingThe TR3005C pincer-shaped opening structure takes one-handed operation as the core: press the handle to open the narrow jaw, put in a 4.5mm wire and release the closure. The continuous power supply design ensures the integrity of the tested circuit. 4.5mm conductor compatibility optimizes probe volume and reduces space occupation, especially suitable for high-frequency current measurement of RF modules or communication equipment. The 100MHz bandwidth realizes "clip and measure" in high-speed digital scenes, avoiding the cumbersome process of traditional disconnection detection. |
 |
 |
Zeroing and degaussingThe degaussing and zeroing system specializes in high-speed scenes: after locking the probe position, the nanosecond DC offset is quickly corrected by adjusting the ZERO knob; The DEGAUSS key actively cancels the high-frequency hysteresis effect and eliminates baseline noise with an accuracy of 1%. This dual-function cooperation deals with temperature drift and electromagnetic interference in 5A DC/3.5A AC measurement, realizes "zero baseline drift" in RF circuit or digital system, ensures the true restoration of transient current waveform, and significantly improves the reliability of high-speed diagnosis. |
Transient Response TestThe TR3005C seamlessly resolves nanosecond current pulses of RF circuits or communication equipment with a 100MHz high-frequency measurement of ≤ 3.5ns extreme rise time, and the measured performance exceeds industry standards. The transient signal with the measured rise time of 4.86ns is still comfortable. |
 |
| Model | TR3005C |
| bandwidth | 100MHz |
| Rise time | ≤3.5ns |
| Enter the type | AC/DC |
| Precision | 士1%rdg.+1mV |
| Current conversion ratio | 500mV/A |
| Resolution | 1mA |
| DC maximum | 5A |
| Communicate valid values | 3.5A |
| Maximum pulse current | 5A(TP≤10uS) |
| Maximum operating voltage | 400V CATⅠ |
| Noise | ≤0.2mVrms |
| Linearity | ±1% |
| Delay time | 20nS |
| Jaw diameter | Ø4.5mm |
| Cable length | 130cm |
| Interface type | BNC |
| Power supply | DC 5V/2A Adapter |
| Operating temperature | 0°C~+40°C |
| Operating humidity | 85%RH |
| Storage temperature | -10~+45°C |
| Store humidity | 90%RH |
| Weight | 0.2kg |
| Dimensions | 230X45.5X24.5mm |
